NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter with Insulated Flexible Cable Probe

Name: NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter with Insulated Flexible Cable Probe
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYSP-M17
Price: 350.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYSP-M17
MOQ:	1 pc
Price:	$320~$380/pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Certification:

CE, ATEX, SIL

Output Signal:

4...20mA/HART/RS485/Modbus...

Process Temperature:

-40~+140℃

Protection Class:

IP67 Blast

Process Pressure:

-0.1~4.0MPa

Explosion-proof Grade:

Exia II CT6 (optional)

Process Connection:

3/4" BSPT Thread (standard) Flange Mount (optional)

Probe Type:

Insulated Flexible Cable PTFE, 304 (optional)

Typical Application:

Corrosive, Conductive And Viscous Liquids

Packaging Details:

Carton, 40cm×30cm×30cm

Supply Ability:

1000 pcs per month

Product Description

NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter with Insulated Flexible Cable Probe

NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter Product Description

RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.

NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter Design Features

1. Anti-hanging material: unique Driving-Shield circuit design improves anti-hanging material capability

2. Power supply operating range: 13 ~ 35VDC

3. Suitable for high temperature, high pressure and corrosive environments

4. Not affected by noisy, dusty, misty and changes in the temperature

5. No blind distance, ideal for different tanks

6. Economic for large tanks

NYSP-M17 Maintenance-free 24VDC RF Admittance Level TransmitterTechnical Parameters

Product Model	NYSP-M17
Typical application	Corrosive, conductive and viscous liquids
Probe type	Insulated flexible cable PTFE, 304 (optional)
Measuring range	3m, 20m
Power supply	24VDC
Medium temperature	-40~+140℃
Process connection	3/4" BSPT thread (standard) flange mount (optional)
Process pressure	-0.1~4.0MPa
Protection class	IP67 blast
Explosion-proof grade	Exia II CT6 (optional)
Signal output	4...20mA/HART/RS485/Modbus...
Electrical interface	M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

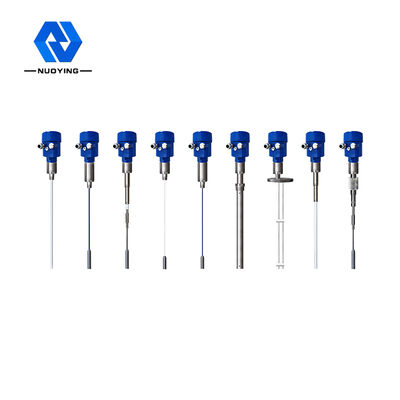

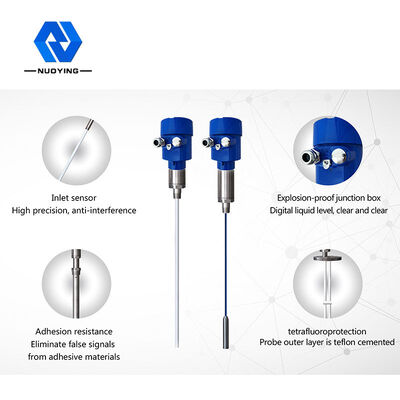

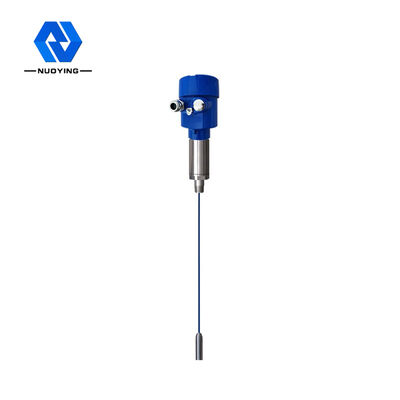

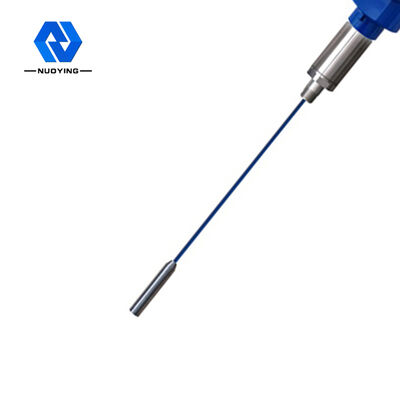

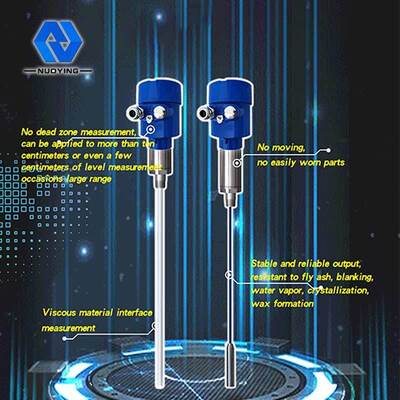

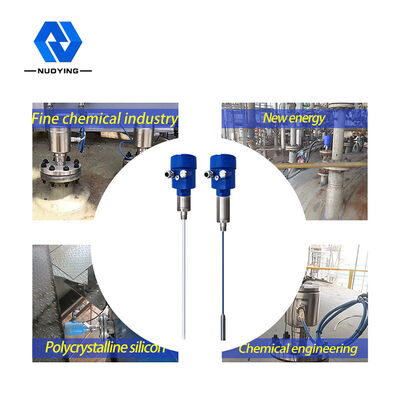

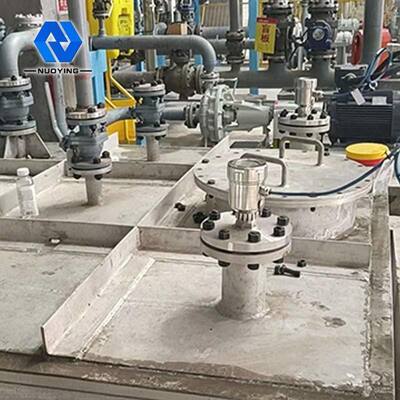

NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter Related Pictures

NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter with Insulated Flexible Cable Probe 0

NYSP-M17 Maintenance-free 24VDC RF Admittance Level Transmitter with Insulated Flexible Cable Probe 1
