NYSP-Z17 Maintenance-free 24VDC RF Admittance Level Transmitter with Insulated Flexible Cable Probe
NYSP-Z17 Maintenance-free 24VDC RF Admittance Level Transmitter Product Description
RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.
NYSP-Z17 Maintenance-free 24VDC RF Admittance Level Transmitter Design Features
1. Anti-hanging material: unique Driving-Shield circuit design improves anti-hanging material capability
2. Power supply operating range: 13 ~ 35VDC
3. Suitable for high temperature, high pressure and corrosive environments
4. Not affected by noisy, dusty, misty and changes in the temperature
5. No blind distance, ideal for different tanks
6. Economic for large tanks
NYSP-Z17 Maintenance-free 24VDC RF Admittance Level TransmitterTechnical Parameters
| Product Model | NYSP-Z17 |
| Typical application |
Corrosive, conductive and viscous liquids |
| Probe type | Insulated flexible cable PTFE, 304 (optional) |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -40~+140℃ |
| Process connection |
3/4" BSPT thread (standard) flange mount (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

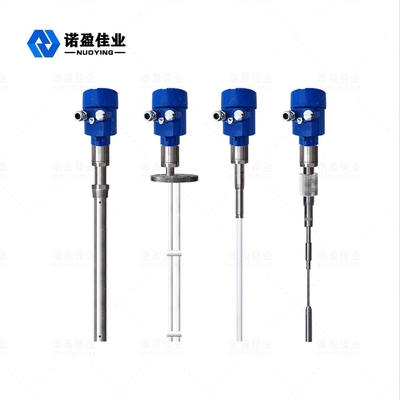

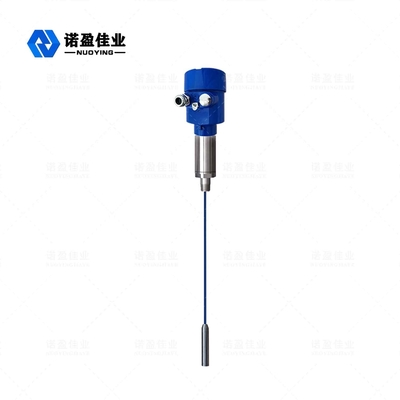

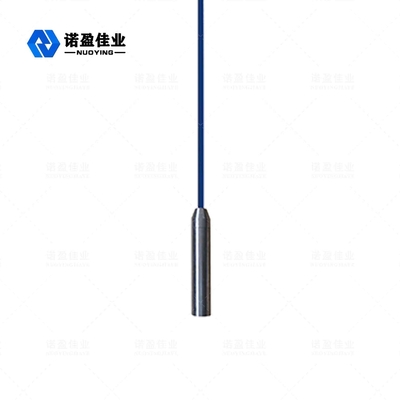

NYSP-Z17 Maintenance-free 24VDC RF Admittance Level Transmitter Related Pictures
