NYSP-M23 RF Admittance Level Transmitter for Insulating Solids of Ultra High Temperature with High Stablity

Name: NYSP-M23 RF Admittance Level Transmitter for Insulating Solids of Ultra High Temperature with High Stablity
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYSP-M23
Price: 262.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYSP-M23
MOQ:	1 pc
Price:	$235~$289/pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Certification:

CE, ATEX, SIL

Range:

3m, 20m

Power Supply:

24VDC

Process Temperature:

-50~+500℃

Protection Class:

IP67 Blast

Process Pressure:

-0.1~8.0MPa

Process Connection:

1" BSPT Thread (standard) Flange Mounting (optional)

Probe Type:

Soft Cable 304 (optional)

Typical Application:

Insulating Solids Of Ultra High Temperature

Packaging Details:

Carton, 40cm×30cm×30cm

Supply Ability:

1000 pcs per month

Product Description

NYSP-M23 RF Admittance Level Transmitter for Insulating Solids of Ultra High Temperature with High Stablity

NYSP-M23 RF Admittance Level Transmitter Product Description

RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.

NYSP-M23 RF Admittance Level Transmitter Working Principle

The probe of the RF admittance level transmitter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.

NYSP-M23 RF Admittance Level Transmitter Design Features

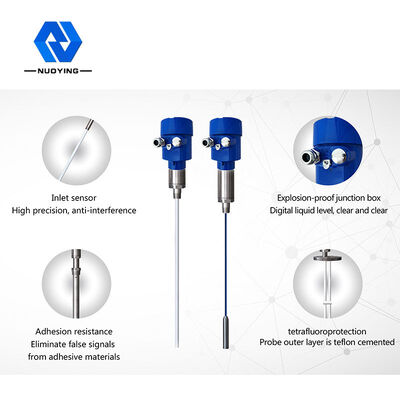

1. Unique Driving-Shield circuit design to improve the anti-hanging ability

2. Power supply working range:13~35V DC

3. Probe process temperature: -100 ℃~800 ℃

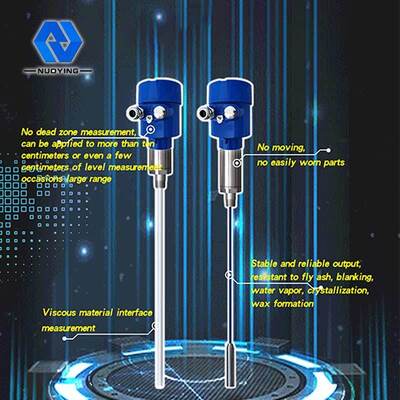

4. No dead zone measurement (can be applied to even a few centimeters of material level measurement occasions )

NYSP-M23 RF Admittance Level Transmitter Technical Parameters

Product Model	NYSP-M23
Typical application	Insulating solids of Ultra High Temperature
Probe type	Soft cable 304 (optional)
Measuring range	3m, 20m
Power supply	24VDC
Medium temperature	-50~+500℃
Process connection	1" BSPT thread (standard) flange mounting (optional)
Process pressure	-0.1~8.0MPa
Protection class	IP67 blast
Explosion-proof grade	Exia II CT6 (optional)
Signal output	4...20mA/HART/RS485/Modbus...
Electrical interface	M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

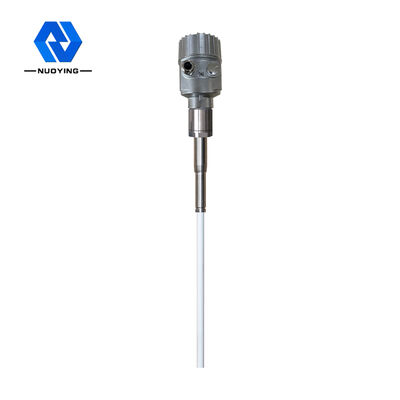

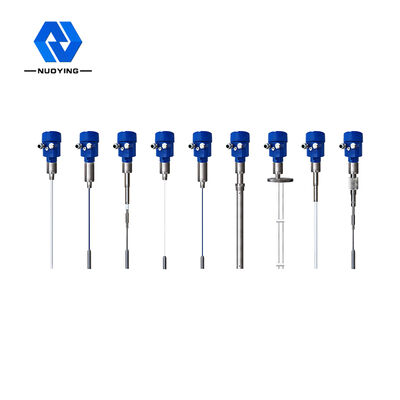

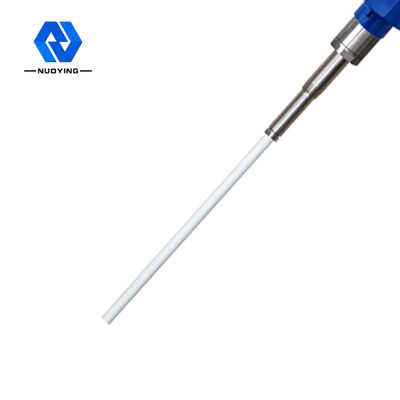

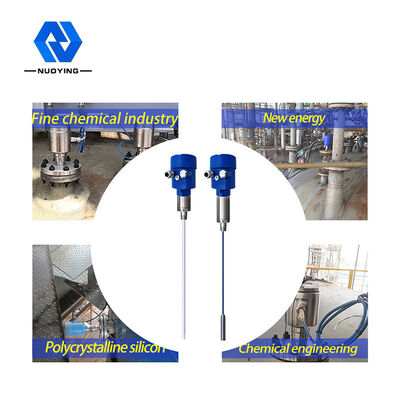

NYSP-M23 RF Admittance Level Transmitter Related Pictures

NYSP-M23 RF Admittance Level Transmitter for Insulating Solids of Ultra High Temperature with High Stablity 0

NYSP-M23 RF Admittance Level Transmitter for Insulating Solids of Ultra High Temperature with High Stablity 1
