| Brand Name: | NUOYING |
| Model Number: | NYSP-Z24 |
| MOQ: | 1 pc |
| Price: | $235~$289/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYSP-Z24 RF Admittance Level Transmitter for Insulating Solids of Ultra High Temperature with High Stablity
NYSP-Z24 RF Admittance Level Transmitter Product Description
RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.
NYSP-Z24 RF Admittance Level Transmitter Working Principle
The probe of the RF admittance level transmitter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.
NYSP-Z24 RF Admittance Level Transmitter Design Features
1. Unique Driving-Shield circuit design to improve the anti-hanging ability
2. Power supply working range:13~35V DC
3. Probe process temperature: -100 ℃~800 ℃
4. No dead zone measurement (can be applied to even a few centimeters of material level measurement occasions )
NYSP-Z24 RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z24 |
| Typical application |
Insulating solids of Ultra High Temperature |
| Probe type | Soft cable 304 (optional) |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -50~+500℃ |
| Process connection |
1" BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~8.0MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

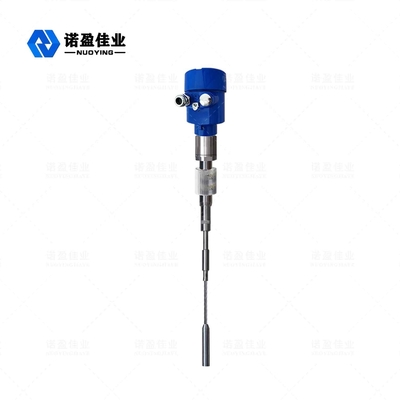

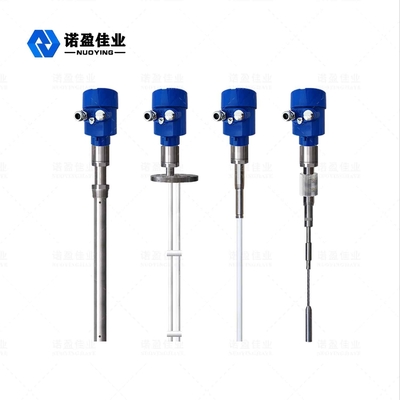

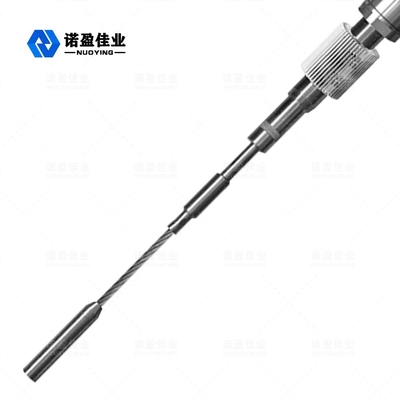

NYSP-Z24 RF Admittance Level Transmitter Related Pictures
