| Brand Name: | NUOYING |
| Model Number: | NYSP-Z18 |
| MOQ: | 1 pc |
| Price: | $225~$260/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYSP-Z18 RF Admittance Level Transmitter for Insulating Liquid Level Measurement with High Stability and Good Price
NYSP-Z18 RF Admittance Level Transmitter Product Description
RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.
NYSP-Z18 RF Admittance Level Transmitter Application Fields
1. Food: juice plants, milk plants, tomato paste storage tanks, brewery storage tanks, etc.
2. Pharmaceuticals: medium pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: reservoirs, cesspools, water treatment tanks, settling ponds, deep wells, drinking water networks, etc.
4. Others: environmental protection, oil field, metallurgy, shipbuilding and other industries.
NYSP-Z18 RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z18 |
| Typical application |
Insulating liquids and solids |
| Probe type | Non-insulated hard rod PTFE/304 (optional) |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -40~+200℃ |
| Process connection |
1" BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~8.0MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

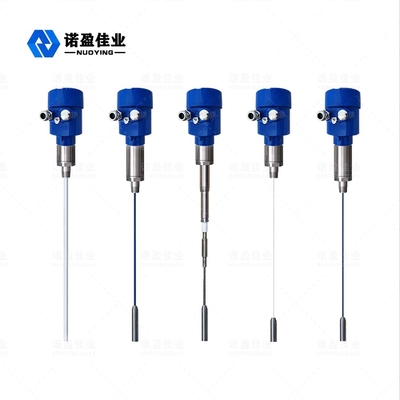

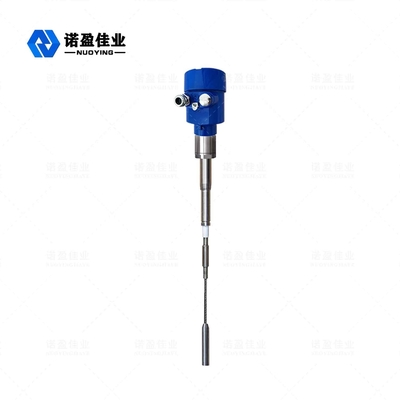

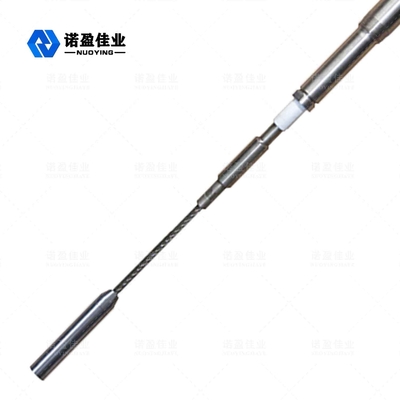

NYSP-Z18 RF Admittance Level Transmitter Related Pictures
