| Brand Name: | NUOYING |
| Model Number: | NYSP-Z19 |
| MOQ: | 1 pc |
| Price: | $310~$350/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYSP-Z19 Anticorrosive RF Admittance Level Transmitter for Conductive Liquids Capacitive Level Meter
NYSP-Z19 Anticorrosive RF Admittance Level Transmitter Product Description
RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.
NYSP-Z19 Anticorrosive RF Admittance Level Transmitter Design Features
1. Maximum measurement range up to even hundreds of meters
2. A great advantage of viscous material interface measurement
3. Stable and reliable output , resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing
4. Maintenance-free: no moving or easy-to-wear parts, no need for frequent cleaning, maintenance and debugging
NYSP-Z19 Anticorrosive RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z19 |
| Typical application |
Conductive liquids/interfaces |
| Probe type | Insulated soft cable PTFE (optional) |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -40~+150℃ |
| Process connection |
3/4" BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

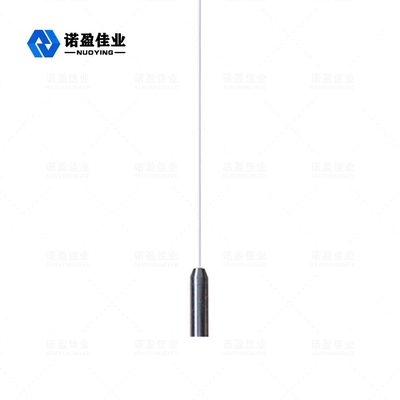

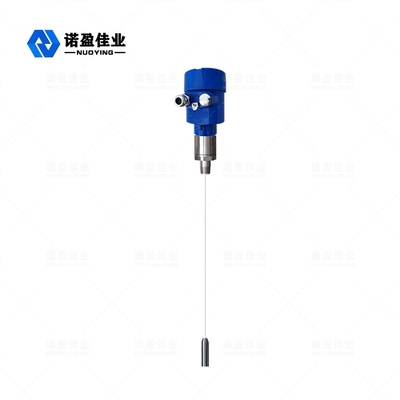

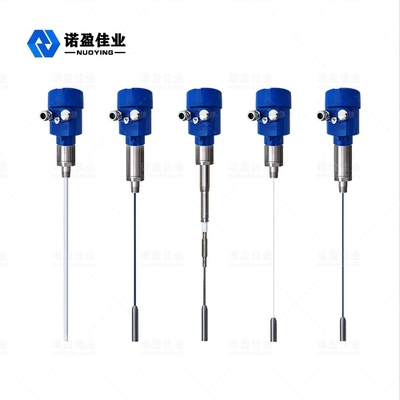

NYSP-Z19 Anticorrosive RF Admittance Level Transmitter Related Pictures
