NYSP-Z21 Low Cost Digital RF Admittance Level Transmitter for Liquids in High Pressure Environments
NYSP-Z21 Low Cost Digital RF Admittance Level Transmitter Working Principle
RF conductivity measurement technology is a level measurement technology with unique advantages.Although the concept is similar to the general capacitance measurement technique, the RF conductivity technique incorporates a driver shield circuit and a chopper circuit in the electronic unit, so impedance and capacitance resistance can be measured separately.The impedance and reactance of any pendant are calculated by the laws of physics to be equal in magnitude, so the effect of the pendant can be measured and eliminated from the total output by phase shifting of the oscillator circuit.
The probe of the radio frequency conductivity liquid level meter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.
NYSP-Z21 Low Cost Digital RF Admittance Level Transmitter Design Features
1. Suitable for high temperature, high pressure and corrosive environments
2. Not affected by noisy, dusty, misty and changes in the temperature
3. No blind distance, ideal for different tanks
4. Economic for large tanks
5. 4~20mA output compatible for most control systems and meters
NYSP-Z21 Low Cost Digital RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z21 |
| Typical application |
Liquids with low dielectric constant |
| Probe type | Cylinder hard rod PTFE/304 (optional) |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -40~+200℃ |
| Process connection |
1" BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~8.0MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

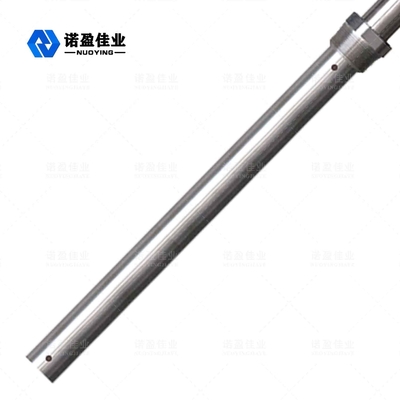

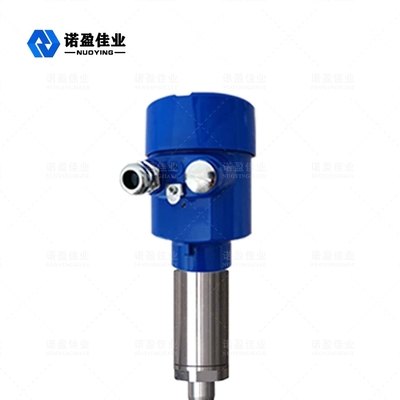

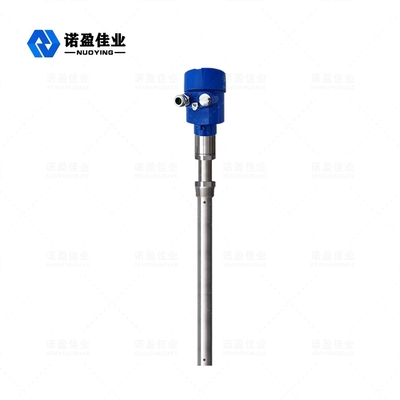

NYSP-Z21 Low Cost Digital RF Admittance Level Transmitter Related Pictures
