NYSP-Z23 24VDC Rod Type RF Admittance Level Transmitter for Electrolytes and Liquid Interfaces Level Measurement
NYSP-Z23 24VDC Rod Type RF Admittance Level Transmitter Design Features
1. Maximum measurement range up to even hundreds of meters
2. A great advantage of viscous material interface measurement
3. Stable and reliable output , resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing
4. Maintenance-free: no moving or easy-to-wear parts, no need for frequent cleaning, maintenance and debugging
NYSP-Z23 24VDC Rod Type RF Admittance Level Transmitter Application Fields
1. Food: juice plants, milk plants, tomato paste storage tanks, brewery storage tanks, etc.
2. Pharmaceuticals: medium pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: reservoirs, cesspools, water treatment tanks, settling ponds, deep wells, drinking water networks, etc.
4. Others: environmental protection, oil field, metallurgy, shipbuilding and other industries.
NYSP-Z23 24VDC Rod Type RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z23 |
| Typical application |
Electrolytes, liquid interfaces and stirred liquids |
| Probe type | Insulated hard rod |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -100~+150℃ |
| Process connection |
1 BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~2.5MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

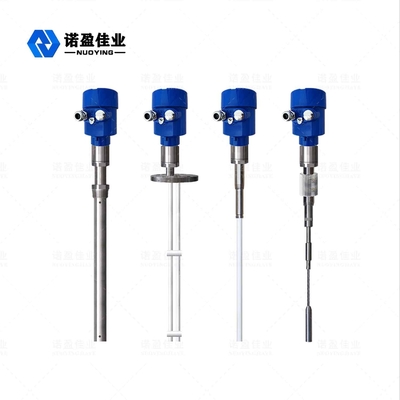

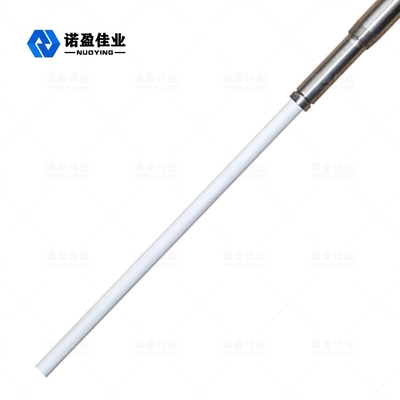

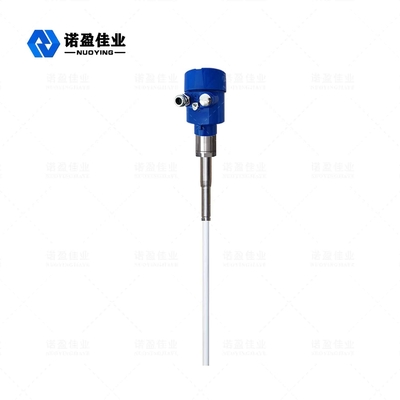

NYSP-Z23 24VDC Rod Type RF Admittance Level Transmitter Related Pictures
