NYSP-M24 RF Admittance Level Transmitter for Insulating Solids Level Measurement in Ultra High Temperature Occasions

Name: NYSP-M24 RF Admittance Level Transmitter for Insulating Solids Level Measurement in Ultra High Temperature Occasions
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYSP-M24
Price: 262.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYSP-M24
MOQ:	1 pc
Price:	$235~$289/pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Certification:

CE, ATEX, SIL

Range:

3m, 20m

Power Supply:

24VDC

Process Temperature:

-50~+500℃

Protection Class:

IP67 Blast

Process Pressure:

-0.1~8.0MPa

Process Connection:

1" BSPT Thread (standard) Flange Mounting (optional)

Probe Type:

Soft Cable 304 (optional)

Typical Application:

Insulating Solids Of Ultra High Temperature

Packaging Details:

Carton, 40cm×30cm×30cm

Supply Ability:

1000 pcs per month

Product Description

NYSP-M24 RF Admittance Level Transmitter for Insulating Solids Level Measurement in Ultra High Temperature Occasions

NYSP-M24 RF Admittance Level Transmitter Working Principle

The probe of the RF admittance level transmitter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.

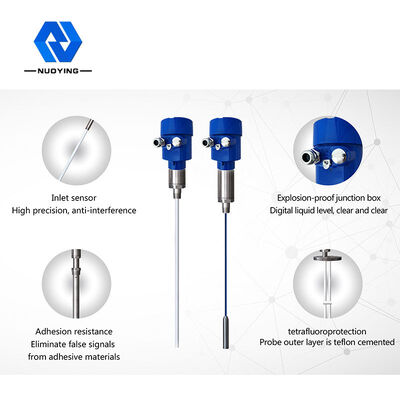

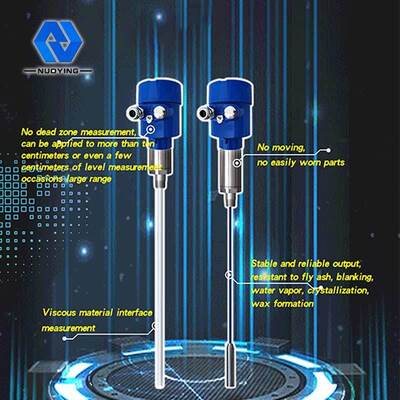

NYSP-M24 RF Admittance Level Transmitter Design Features

1. Maximum measurement range up to even hundreds of meters

2. A great advantage of viscous material interface measurement

3. Stable and reliable output , resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing

4. Maintenance-free: no moving or easy-to-wear parts, no need for frequent cleaning, maintenance and debugging

NYSP-M24 RF Admittance Level Transmitter Technical Parameters

Product Model	NYSP-M24
Typical application	Insulating solids of Ultra High Temperature
Probe type	Soft cable 304 (optional)
Measuring range	3m, 20m
Power supply	24VDC
Medium temperature	-50~+500℃

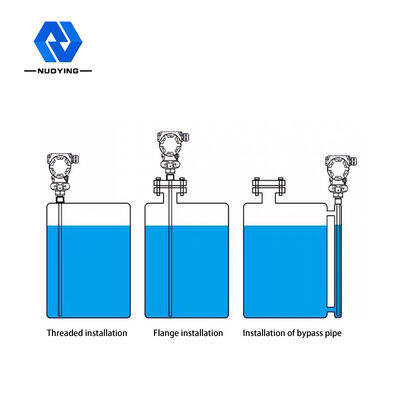

Process connection	1" BSPT thread (standard) flange mounting (optional)
Process pressure	-0.1~8.0MPa
Protection class	IP67 blast
Explosion-proof grade	Exia II CT6 (optional)
Signal output	4...20mA/HART/RS485/Modbus...
Electrical interface	M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

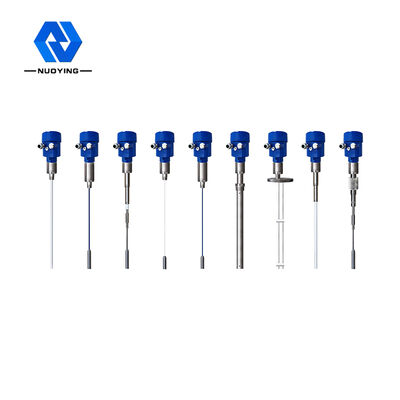

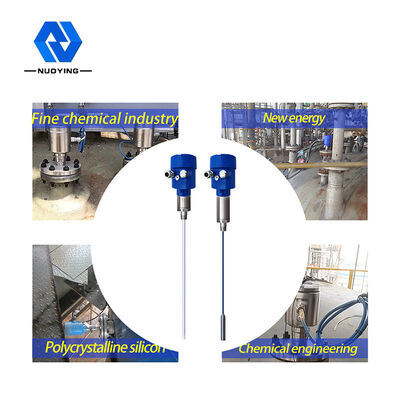

NYSP-M24 RF Admittance Level Transmitter Related Pictures
