| Brand Name: | NUOYING |
| Model Number: | NYSP-Z24 |
| MOQ: | 1 pc |
| Price: | $235~$289/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYSP-Z24 RF Admittance Level Transmitter for Insulating Solids Level Measurement in Ultra High Temperature Occasions
NYSP-Z24 RF Admittance Level Transmitter Working Principle
The probe of the RF admittance level transmitter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.
NYSP-Z24 RF Admittance Level Transmitter Design Features
1. Maximum measurement range up to even hundreds of meters
2. A great advantage of viscous material interface measurement
3. Stable and reliable output , resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing
4. Maintenance-free: no moving or easy-to-wear parts, no need for frequent cleaning, maintenance and debugging
NYSP-Z24 RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z24 |
| Typical application |
Insulating solids of Ultra High Temperature |
| Probe type | Soft cable 304 (optional) |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -50~+500℃ |
| Process connection |
1" BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~8.0MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

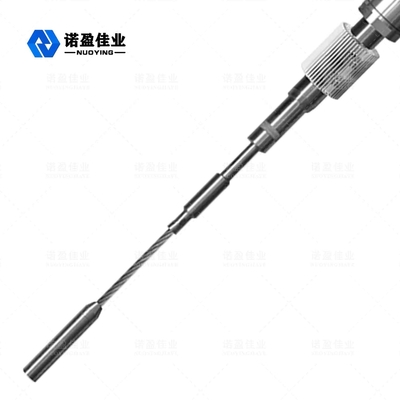

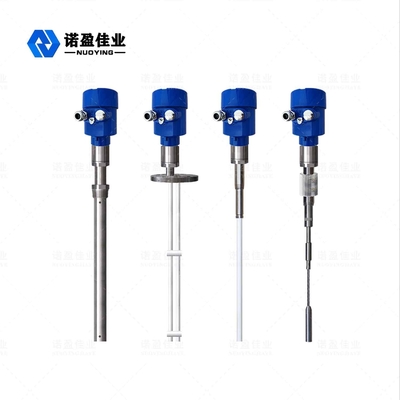

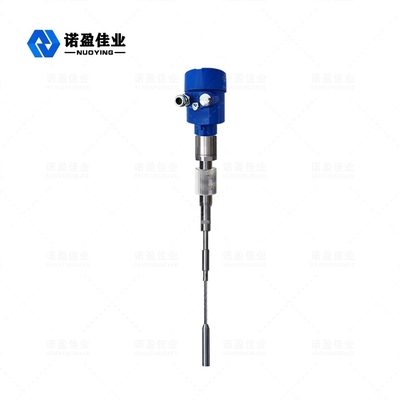

NYSP-Z24 RF Admittance Level Transmitter Related Pictures
