4-20mA (load Resistance 0~750), Pulse/frequency, Control Level
Conductivity Range:
The Conductivity Ofthe Measured Fluid Is ≥5μs/cm
Flow Rate Range:
0.1-10m/s
Packaging Details:
40*30*30cm
Supply Ability:
1000pcs per month
Product Description
strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA
NYLD Electromagnetic Flow Meter
Overview
Products Description

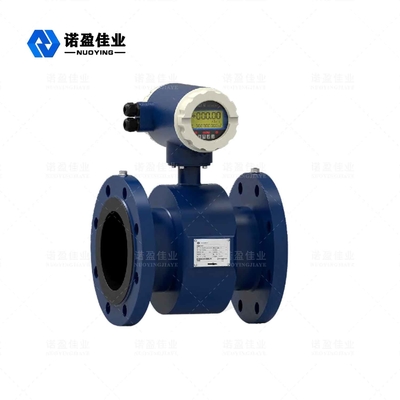

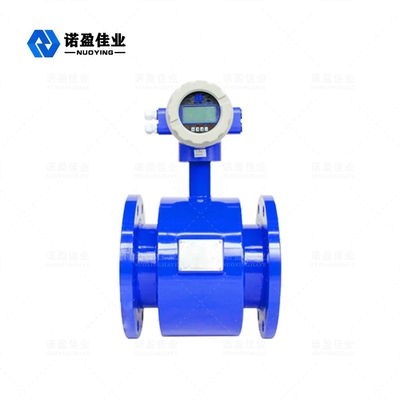

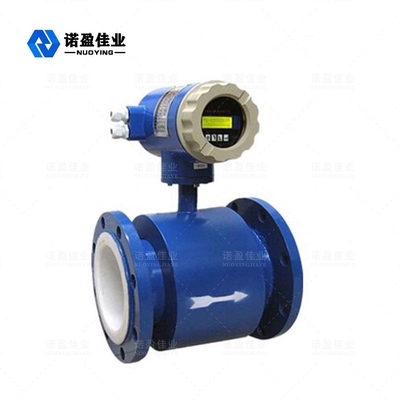

NYLD Intelligent Eletromagnetic Flowmeter
The NYLD intelligent type electromagnetic flowmeter consists of a sensor and a converter. It is based on Faraday's law of
electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two-phase suspension liquid such as slurry, pulp and paper pulp. It is wdely used for flow measurement of petroleum, chemical, metallurgy, textile, papermaking, environmental protection, food and other industrial sectors and municipal management, water conservancy construction, rivers and other fields.
Product Parameters
Signal output
4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
Conductivity range
The conductivity ofthe measured fluid is ≥5μs/cm
Communication output
Rs485 communication MODBUS protocol, HART communication interface
Output signal
4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
