Factory direct sale 1.5 inch flowmeter food grade electromagnetic flow sensor meter

Name: Factory direct sale 1.5 inch flowmeter food grade electromagnetic flow sensor meter
Brand: Xi'an Dehou Electronic Technology Co., Ltd.
SKU: NYLD-GB
Price: 349.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYLD-GB
MOQ:	1pcs
Price:	$299 to $399/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shaanxi,China

Certification:

CE, SIL, ATEX

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Media Temperature:

-20 ~+120

Power Supply:

220VAC/ 24VDC

Certificate:

ATEX

Signal Output:

Pulse / 4~20mA / RS485

Accuracy:

0.5%

Connection:

Flange

Liner Material:

PETE

Pressure:

1.6Mpa

Packaging Details:

40*30*30cm

Supply Ability:

1000pcs per month

Product Description

Factory direct sale 1.5 inch flowmeter food grade electromagnetic flow sensor meter

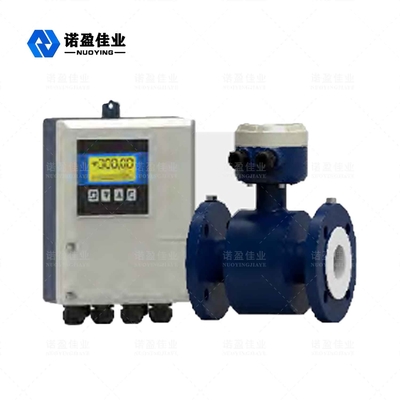

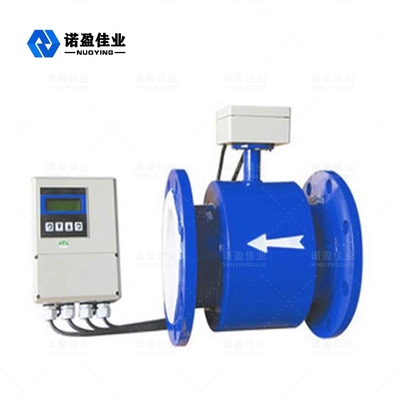

NYLD-GB Electromagnetic Flow Meter

Product Description

Electromagnetic Flow Meter

Smartelectromagneticflowmeterisahigh-performance,high-reliability flow meter.It used to measure the volume flow of conductive liquid and slurry in closed pipelines. Widely used in steel,electricity,petroleum,chemical industry,coal,metallurgy,papermaking,watersupplyanddrainage,food,pharmaceuticalindustry,etc.

Specification

item	value
Warranty	12 months
Customized support	OEM, ODM
Place of Origin	China
	Shaanxi
Brand Name	NUOYING
Model Number	NYLD-GB
Type	Variable Area Water Flowmeters
Material	CS
Accuracy	0.5%
Display	LCD
Connection	Flange
Output signal	Pulse / 4~20mA / RS485
Power supply	220VAC/ 24VDC
Color	Blue
Medium temperature	-20 ~+120
Liner material	PETE
Pipe material	Stainelss Steel

Details Images

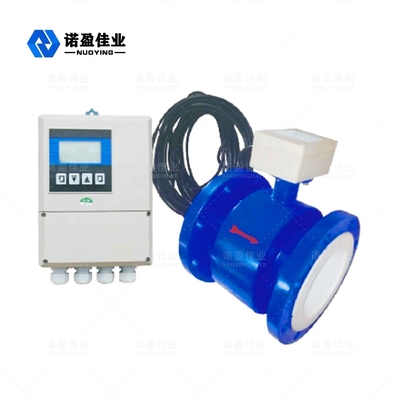

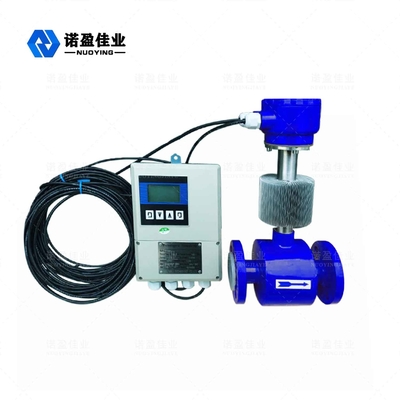

Split type,

remote display

The standard cable is 10 meters.

Cast aluminum waterproof box

Filled with epoxy resin

Protection class IP68

Lining material: PTFE, F46, PFA

Electrode material: 316L, titanium, tantalum, PT

Corrosion resistance and high pressure resistance

Stainless steel material: 304SS, 316L

Seiko polished

Corrosion resistant and beautiful

Packing & Delivery

Certifications

Working condition
