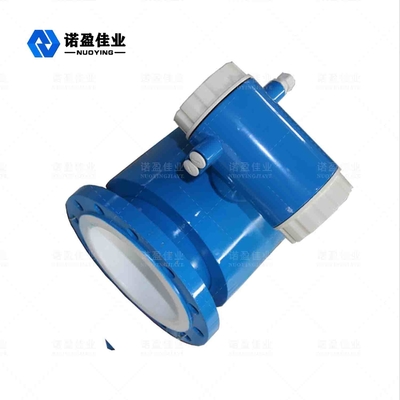

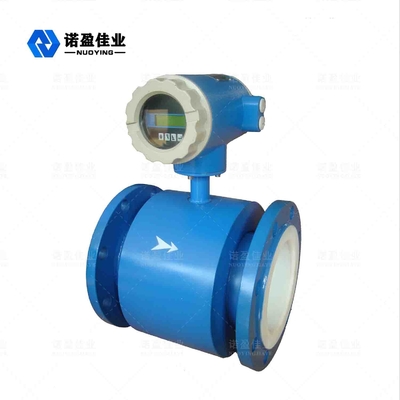

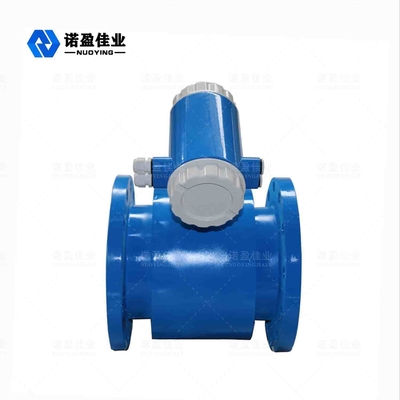

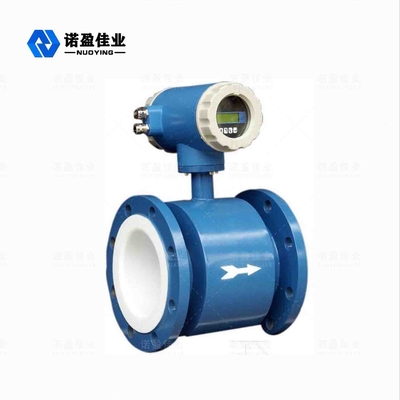

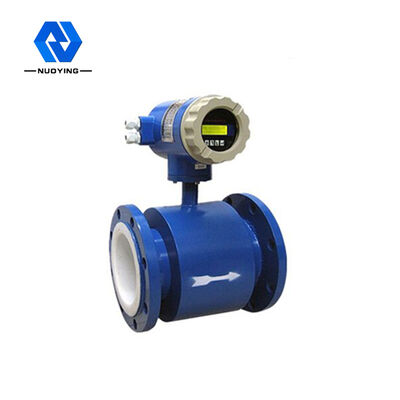

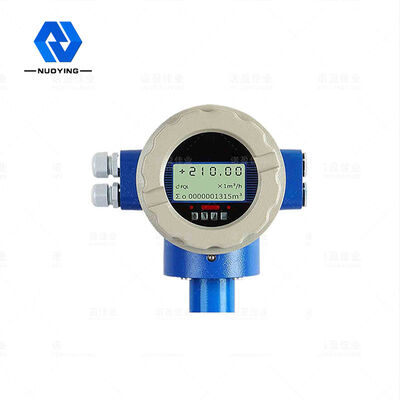

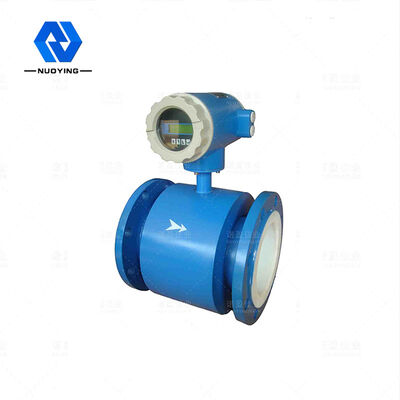

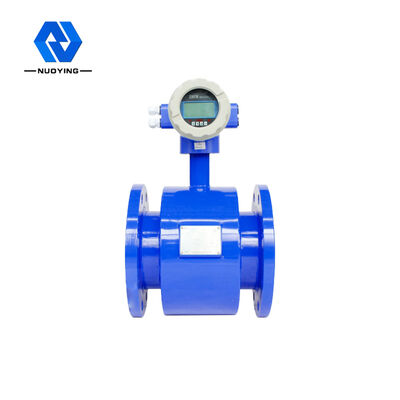

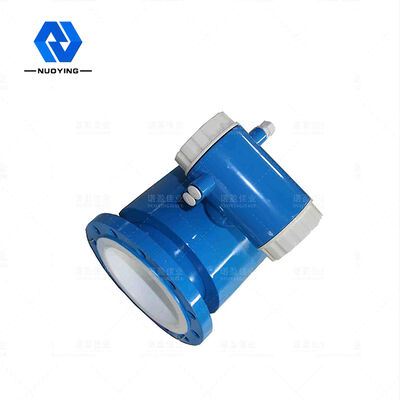

Slurry type meteelectromagnetic flow meter for mud measurement

Name: Slurry type meteelectromagnetic flow meter for mud measurement
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYLD-S
Price: 749.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYLD-S
MOQ:	1pcs
Price:	$499 to $999/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shaanxi,China

Certification:

CE, SIL, ATEX

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Media Temperature:

-40~60℃

Power Consumption:

<15W (And Set With Sensor Supporting Power Consumption )

Electrical Conductivity:

>50μs/cm

Signal Output:

4-20mA; RS485; HART; MODBUS

Accuracy:

±0.5% Of The Value Displayed ,±0.3% Or ±0.2% Are Selectable.

Main Power:

3.6V

Material:

Cast Aluminium

Damping Time Constant:

Continuous Variable From 0-100 S (90%)can Be Selected By Group

Accumulator:

Forward Total Quantity ,reverse Total Quantity

Communication:

RS-485 (ModBus Protocol)

Protection Level:

IP 68

Packaging Details:

40*30*30cm

Supply Ability:

1000pcs per month

Product Description

NYLD Electromagnetic Flow Meter

Products Description

Working principle of Insertion Type Electromagnetic Flowmeter

NYLD insertion electromagnetic flow meter is a new type of flowmeter developed on the basis of pipeline electromagnetic flow meter. On the basis of retaining the advantages of pipeline electromagnetic flow meter, it is installed on pipeline for pipeline electromagnetic flow meter. Difficulty,high cost and other defects,according to the principle of NIKUR.ADS, the volume flow of the fluid is obtained by measuring the average flow rate of the fluid by electromagnetic method. Especially after adoptitg the technology of press-opening and press-installation, the plug-in electromagnetic flow meter can be installed without stopping the watell, and it can also be installed on cast iron pipes and cement pipes. The successful development of the plug-in electromagnetic flowmeter provides a new method for the detection of fluid flow.

Product Parameters

Slurry type meteelectromagnetic flow meter for mud measurement 0

Typical application	liquid flow measurement
Pipe Diameter	300-3000mm
Measuring range	Customized design
Flow rate range	0.1~10m/s
Electrical conductivity	>50μs/cm
Environment temperature	-20℃~/+60℃
Ambient Humidity	5~100%RH

Various application

Cooperation customers

Product certificate
