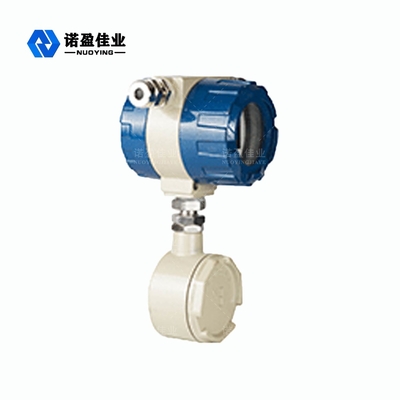

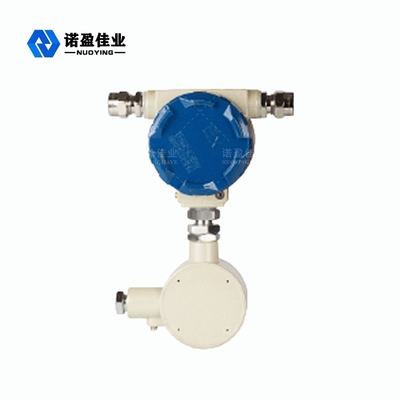

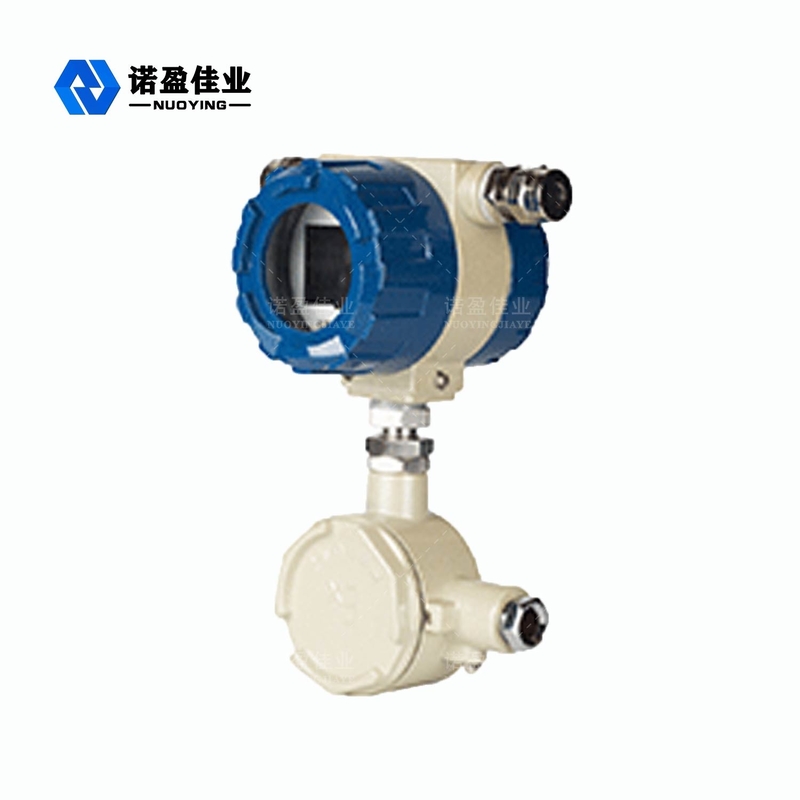

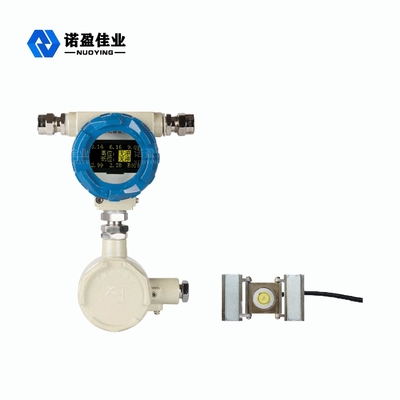

NYKC3 Externally Attached Ultrasonic Switch Working Principle
This switch uses ultrasonic technology to detect whether the liquid level inside the tank reaches the set alarm position through the ultrasonic sensor. The principle is that by stimulating the ultrasonic sensor, the ultrasonic wave is emitted and the ultrasonic signal is shot into the tank with the tank wall. Therefore, there will be a clear difference in the strength of the reflected signal from the tank wall received by the ultrasonic sensor. Using the above principle, by detecting the strength of the received ultrasonic signal, it is possible to accurately determine whether the liquid level has reached or not, and the relay outputs the corresponding alarm signal.
1.Dual processing operation, more stable and reliable performance.
2.Ultrasonic high frequency technology, strong anti-interference ability.
3.Self-diagnostic function, fault code display and output, easy maintenance.
4.With calibration probe, realize self-calibration and reduce the influence of ambient temperature of probe signal.
5.Single probe measurement, two-point high and low level control.
6.Infrared menu debugging.
