|Typical Application:||Liquid Level Measurement||Frequency Range:||40KHz、100KHz|
|Probe Type:||Integrated||Probe Material:||PP/PVC/PTFE / 304(optional）|
|Process Temperature:||-20～+70℃||Process Pressure:||Normal Pressure|

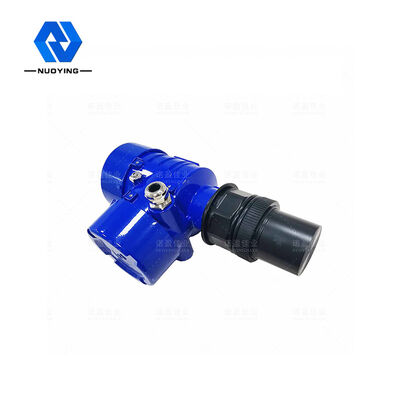

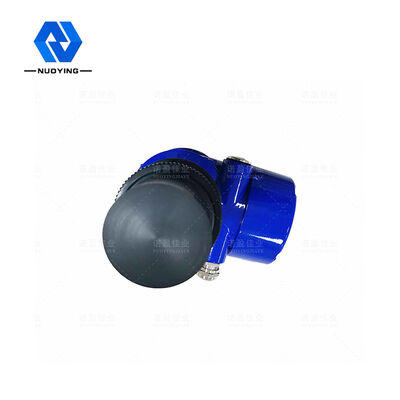

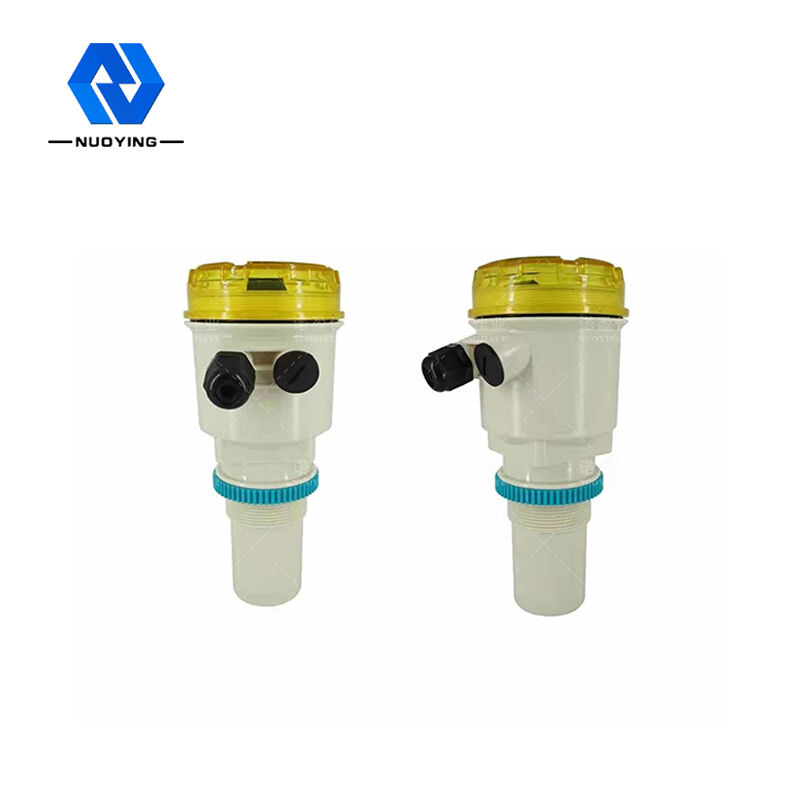

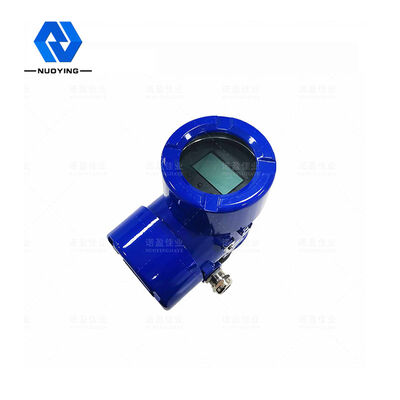

100KHz Ultrasonic Water Tank Level Sensor,
Ultrasonic Water Tank Level Sensor PTFE,
PTFE ultrasonic water level transmitter
Distance [m] = time × sound speed /2 [m]
The temperature compensation formula of sound velocity is: ambient sound velocity = 331.5 + 0.6× temperature
|Typical application||Liquid level measurement|
|Process pressure||Normal pressure|
|Process connection||Thread, Flange, Bracket mounting (optional)|
|Display mode||Liquid level, distance (empty height)|
|Setting output||Upper limit setting, lower limit setting|
The working principle of ultrasonic level meter is that the ultrasonic transducer (probe) sends out high frequency pulse sound wave when it meets the measured object level (material) surface is reflected and converted back to reflect echo is received by the transducer into an electrical signal. The propagation time of sound waves is proportional to the distance from the surface of the object. The relation between acoustic transmission distance S and sound speed C and sound transmission time T can be expressed by a formula :S=C×T/2.
As the transmitted ultrasonic pulse has a certain width, the reflected wave overlapped with the transmitted wave in a small area close to the transducer, so the distance value cannot be recognized and measured. This area is called the measurement blind spot. The size of the blind area is related to the type of ultrasonic level meter.
The probe part emits ultrasonic wave, ultrasonic wave encounter with the air density difference is larger than the medium will be reflected, reflected wave is received by the probe part, the probe to the liquid (object) surface distance and ultrasonic time is proportional to:
※ note: the product can be customized according to the specific requirements of users!
