Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67

Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67
Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67 Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67

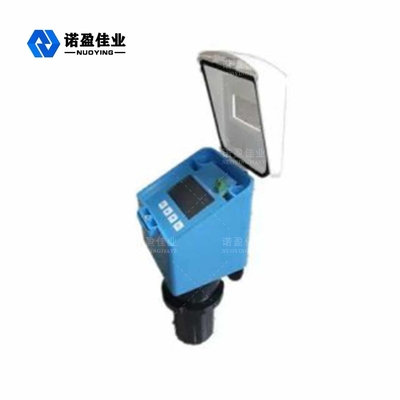

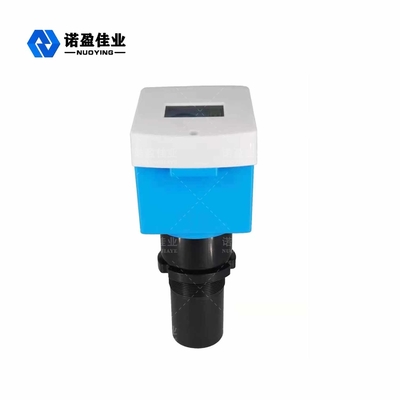

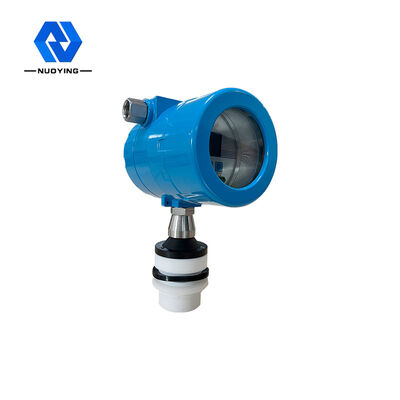

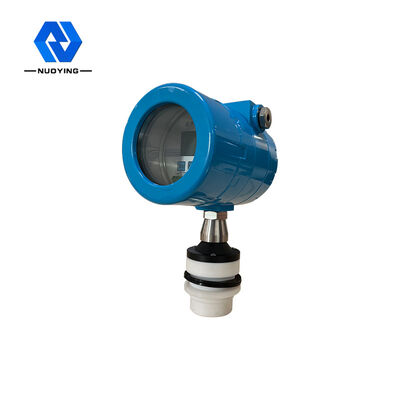

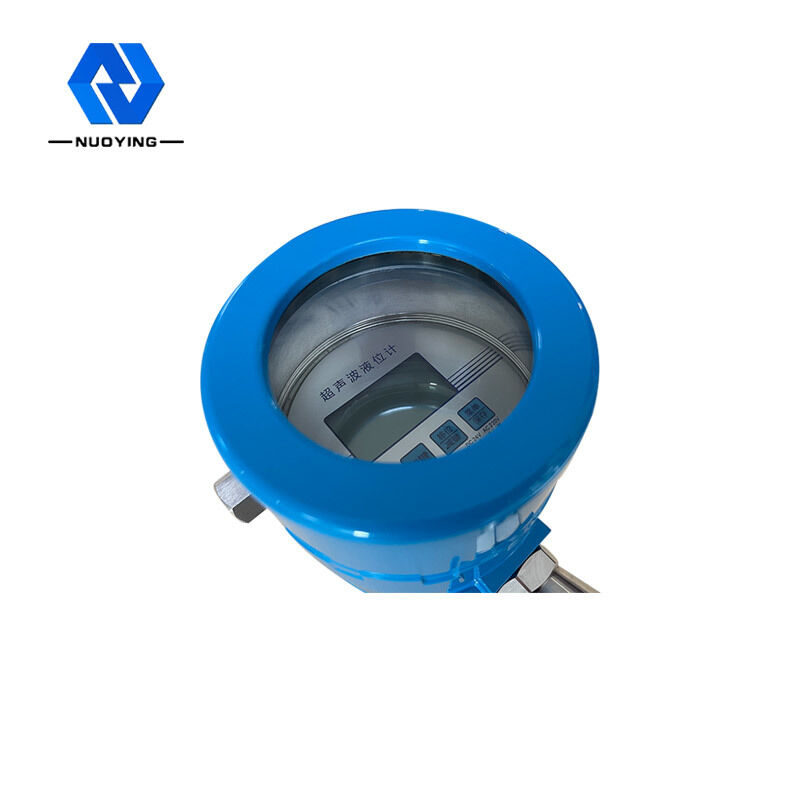

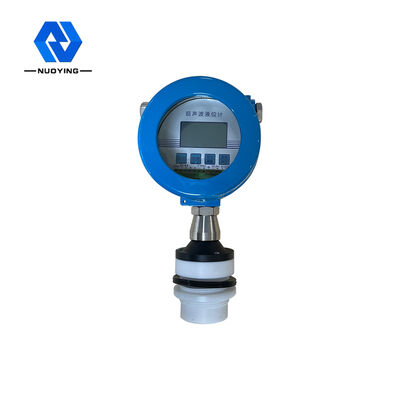

Large Image :  Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67

Product Details:
Place of Origin: China
Brand Name: Nuoying JIAYE
Certification: Explosion proof certificate
Model Number: NYCSUL-501
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $130 to $2000
Packaging Details: 30cm×25cm×20cm
Payment Terms: T/T
Supply Ability: infinite
Contact Now

Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67

Description
Explosion-pro Of Grade: ExiaⅡCT6 Ga Protection Class: IP65,IP67
Shell Material: Polypropylene/Aluminum Display: LCD
Signal Output: 4...20mA/HART/RS485... Display Mode: Liquid Level, Distance (empty Height)
Setting Output: Upper Limit Setting, Lower Limit Setting Power Supply: 24VDC、220VAC
Highlight:

RS485 Ultrasonic Level Transmitter

,

Ultrasonic Level Transmitter Polypropylene

,

RS485 ultrasonic level indicator

Ultrasonic Level Transmitter And Low Liquid Level Non Contact Easy Installation NYCSUL-501
Ultrasonic Level Transmitter

Application: liquid level measurement in rivers and lakes, water level measurement, non corrosive liquid level measurement, etc

Ultrasonic Level Transmitter Product description

The ultrasonic level meter is installed on the top of the container. Under the control of the electronic unit,the probe emits a beam of ultrasonic pulses to the object to be measured, the sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal, which is retransmitted according to the ultrasonic wave. The time difference to re-reception and the known speed of sound are used to determine the change of the material level. The microwave signal is processed by the electronic device and finally converted into an electrical signal related to the material level.

Low Liquid RS485 Ultrasonic Level Transmitter Polypropylene IP67 0

Ultrasonic Level Transmitter Parameters

Typical application Liquid level measurement
Frequency Range 40KHz,100KHz
Probe type Integrated
ProbeMaterial PP/PVC/PTFE/304(optional)
Measuring range 0～20m
Measurement accura ＜0.25%(Range＜20m)
Measuringangle 10°
Power supply 24VDC,220VAC
Process temperature -20～+70℃
Process pressure Normal pressure
Process connection Thread, Flange, Bracket mounting (optional)
Signal output 4...20mA/HART/RS485...
Display mode Liquid level, distance (empty height)
Setting output Upper limit setting, lower limit setting
Display LC D
Shell material Polypropylene/Aluminum
Protection class IP65,IP67
Explosion-proofgrade ExiaⅡCT6 Ga



Ultrasonic Level Transmitter Site Conditions



In any of the following cases, note:



  • A liquid/solid with foam
  • There are strong voltage, strong current, strong electromagnetic interference, try to avoid high voltage, high current and strong electromagnetic interference
  • The wind and the sun
  • Strong motion
  • Volatile liquids and areas with a lot of water vapor
  • Crystallizable liquid
  • The above field environment should be carefully selected, the numerical accuracy of measurement will decline, data may be unstable, generally not recommended to use ultrasonic level meter measurement.
