Product Details:
|
| Typical Application: | Liquid Level Measurement | Digital Output: | RS485,232 |
|---|---|---|---|
| Analog Output: | 2-wire 4 ~ 20mA / 250Ω Load, 4-wire 4 ~ 20mA / 510Ω Load | ProbeMaterial: | PP/PVC/PTFE/304(optional） |
| Measuring Range: | 0-20m | Power Supply: | 24VDC |
| Process Pressure: | -0.02-0.1MPa | Installation Size: | Thread Or Flange |
| High Light: | RS232 Ultrasonic Level Transmitter,PP PVC Ultrasonic Level Transmitter,PP PVC ultrasonic water level sensor |
||
4-20MA RS485 Long Distance Ultrasonic Water Level Meter Sensor Transmitter

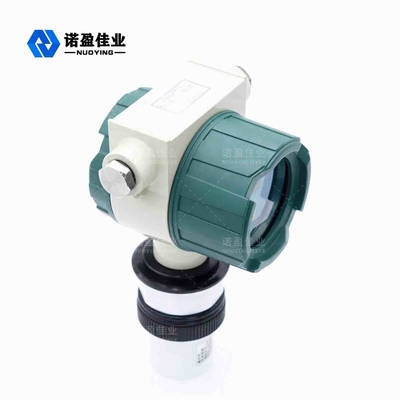

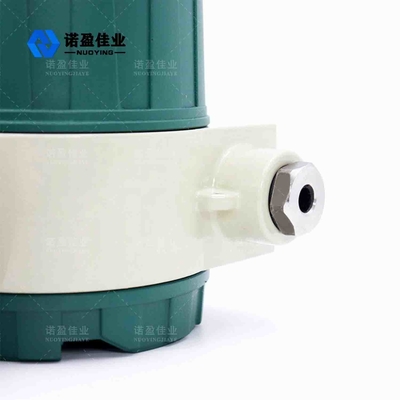

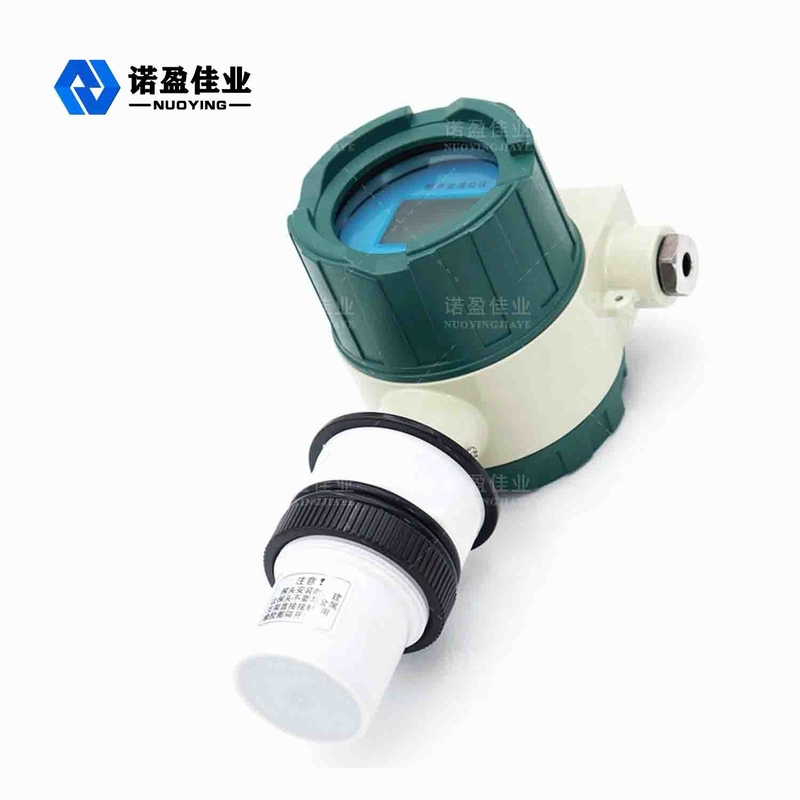

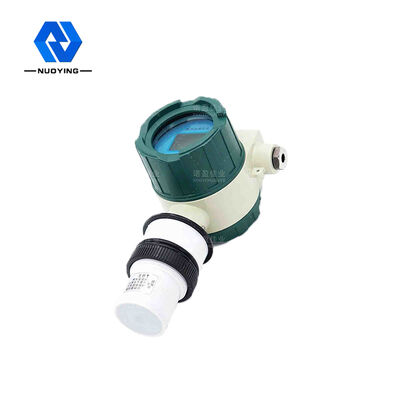

NYCSUL-503 Ultrasonic Level Transmitter

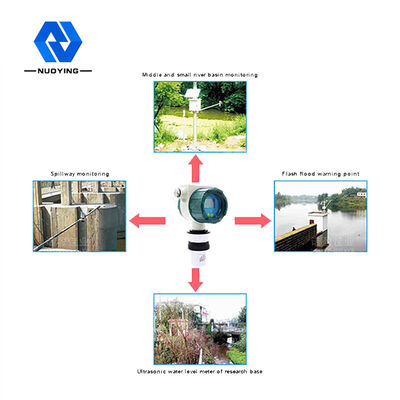

The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries
Ultrasonic Level Transmitter Technical Parameters
| Features | Integrated |
| Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Measurement Accuracy | 0.5%~1.0% |
| Resolution | 3mm or 0.1% (whichever is greater) |

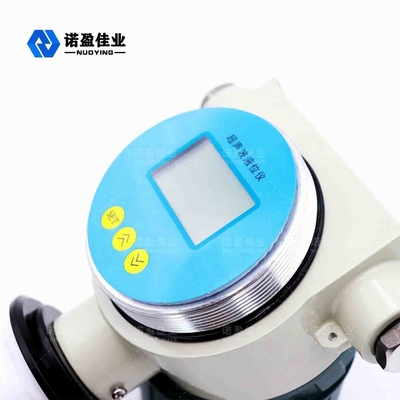

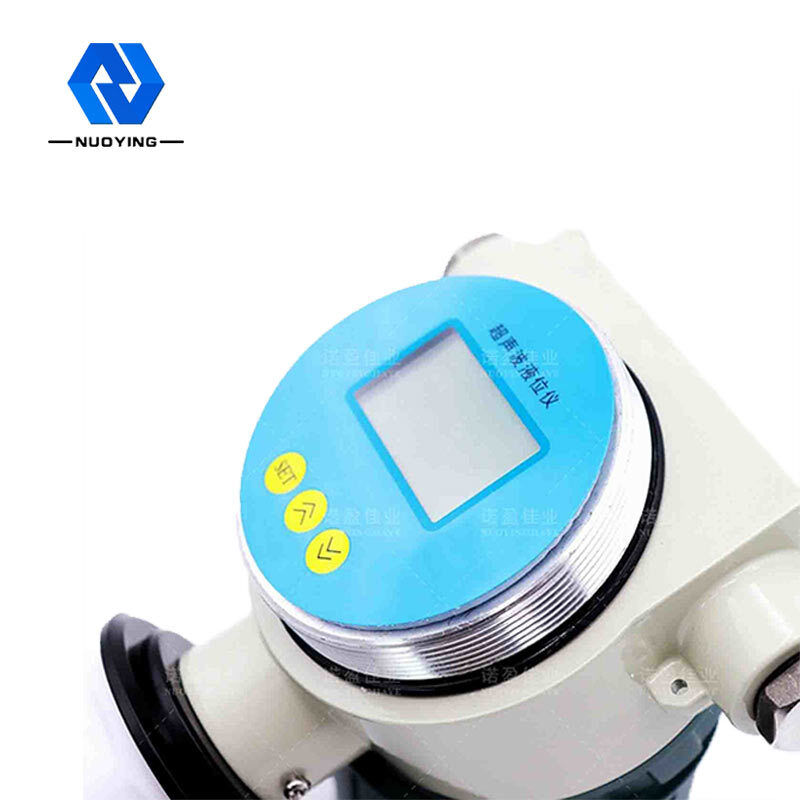

| Display | Chinese LCD or English LCD |
| Analog Output | 2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load |
| Digital Output | Optional 485, 232 |
| Relay Output | Optional 2 sets of AC 250V / 5A or DC 30V / 5A |
| Powered | Standard 24VDC, optional 220V AC + 15% 50HZ |
| Ambient Temperature | Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃ |
| Protection Class | Display instrument IP65, probe IP68 |
| Probe Cable | No |
| Installation Size | Thread or flange |
Ultrasonic Level Transmitter Installation Guide
