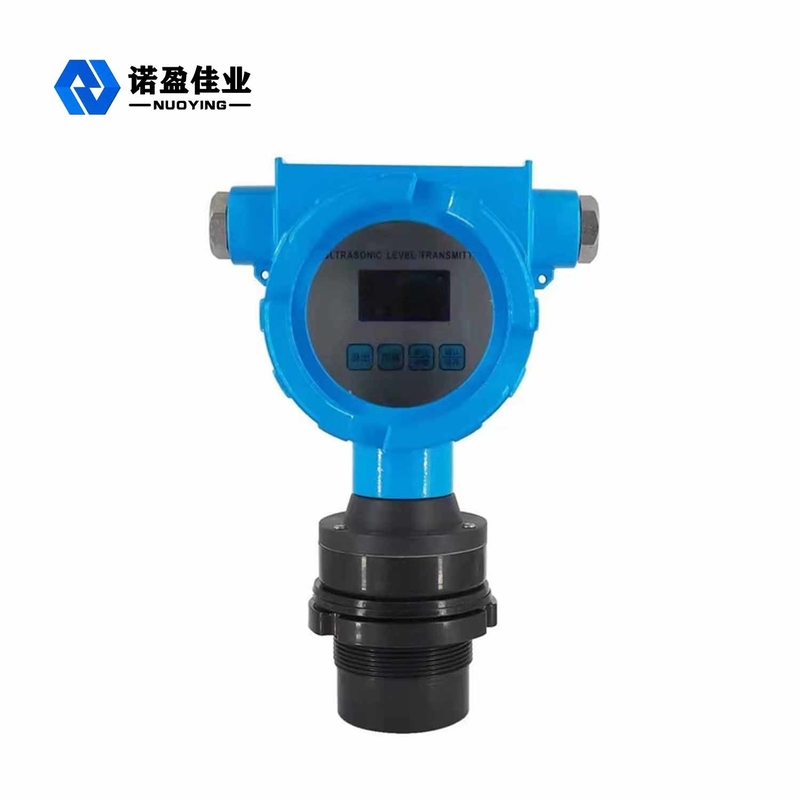

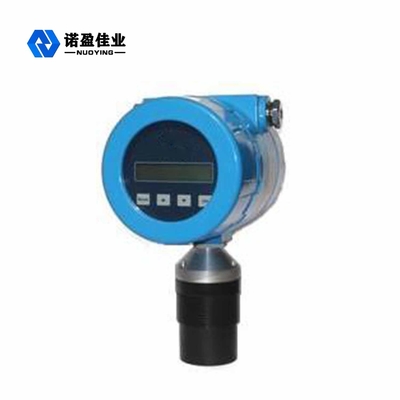

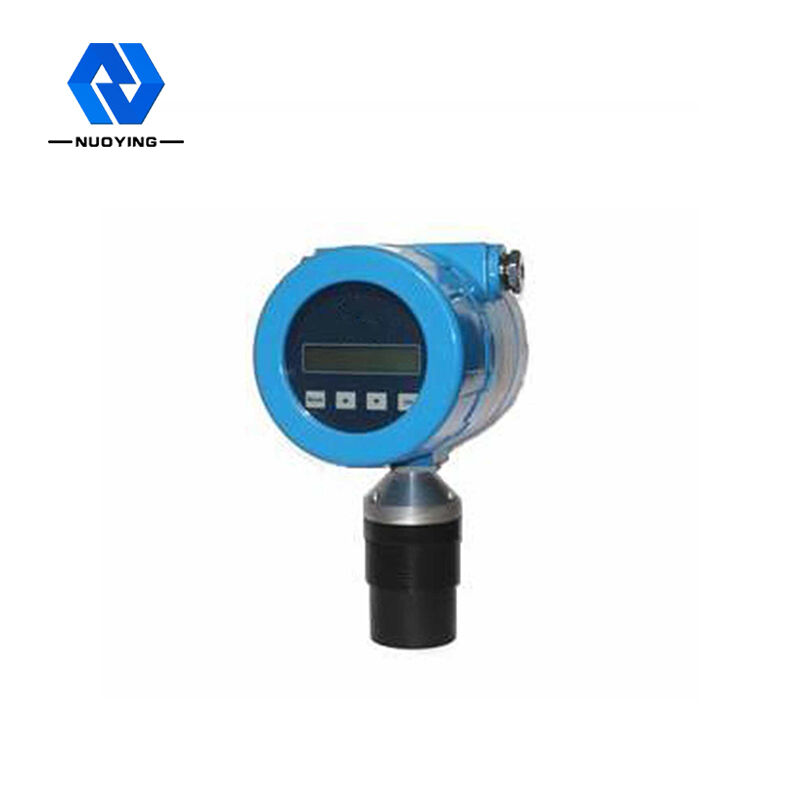

304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof

304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof
304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof 304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof

Large Image :  304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof

Product Details:
Place of Origin: China
Brand Name: Nuoying JIAYE
Certification: Explosion proof certificate
Model Number: NYCSUL-503
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100 to $1100
Packaging Details: 30cm×25cm×20cm
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 300 units a month

304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof

Description
Probe Type: Integrated ProbeMaterial: PP/PVC/PTFE/304(optional)
Measuring Range: 0-20m Measurement Accura: <0.25%(Range<20m)
Measuringangle: 10° Power Supply: 24VDC、220VAC
Process Temperature: (-20-70℃) Process Pressure: Normal Pressure
Explosion-proofgrade: ExiaⅡCT6 Ga Protection Class: IP65,IP67
High Light:

304 Probe Ultrasonic Level Sensor Wastewater

,

Ultrasonic Level Sensor Wastewater Cast Aluminum

,

Explosion Proof ultrasonic fluid level sensor

NYCSUL Ultrasonic Level Transmitter



NYCSUL Ultrasonic Level Transmitter Product Description

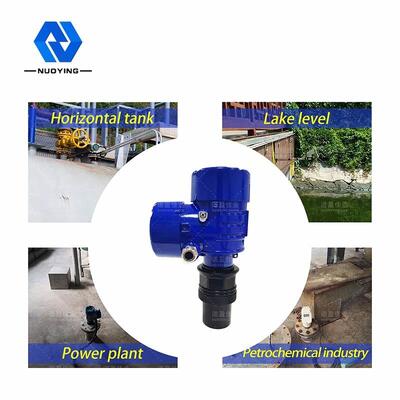

NYCSUL two-wire ultrasonic level meter is an intelligent non-contact level measuring instrument. The product has automatic power adjustment, gain control, temperature compensation, adopts advanced detection and calculation technology, and has the function of suppressing interference signals, thereby fundamentally improving the measurement accuracy of the instrument to ensure the authenticity of the measurement results. The product can be widely used for liquid level measurement of various liquids, and can also be used for distance measurement.



304 Probe Ultrasonic Level Sensor Wastewater Cast Aluminum Explosion Proof 0



NYCSUL Ultrasonic Level Transmitter Technical Parameter



Typical application Liquid level measurement
Frequency Range 40KHz,100KHz
Probe type Integrated
ProbeMaterial PP/PVC/PTFE/304(optional)
Measuring range 020m
Measurement accura 0.25%(Range20m)
Measuringangle 10°
Power supply 24VDC,220VAC
Process temperature (-20-70℃)
Process pressure Normal pressure
Process connection Thread, Flange, Bracket mounting (optional)
Signal output 4...20mA/HART/RS485...
Display mode Liquid level, distance (empty height)
Setting output Upper limit setting, lower limit setting
Display LCD
Shell material Polypropylene
Protection class IP65,IP67
Explosion-proofgrade ExiaCT6 Ga

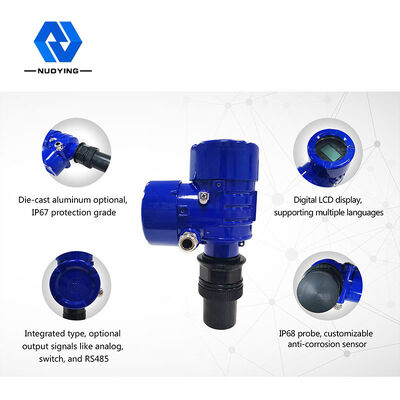

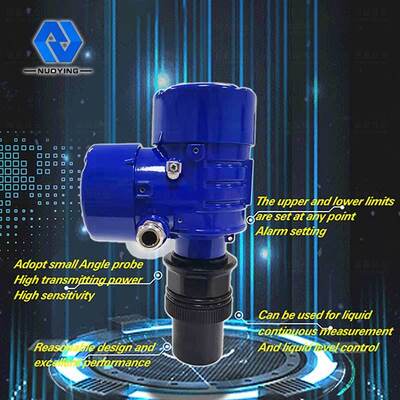

NYCSUL Ultrasonic Level Transmitter Design Features



  • Reasonable design, excellent performance, low unit price, simple structure and high installation convenience;
  • Ultrasonic uses a small-angle probe with high transmit power and high sensitivity;
  • Arbitrary point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control
