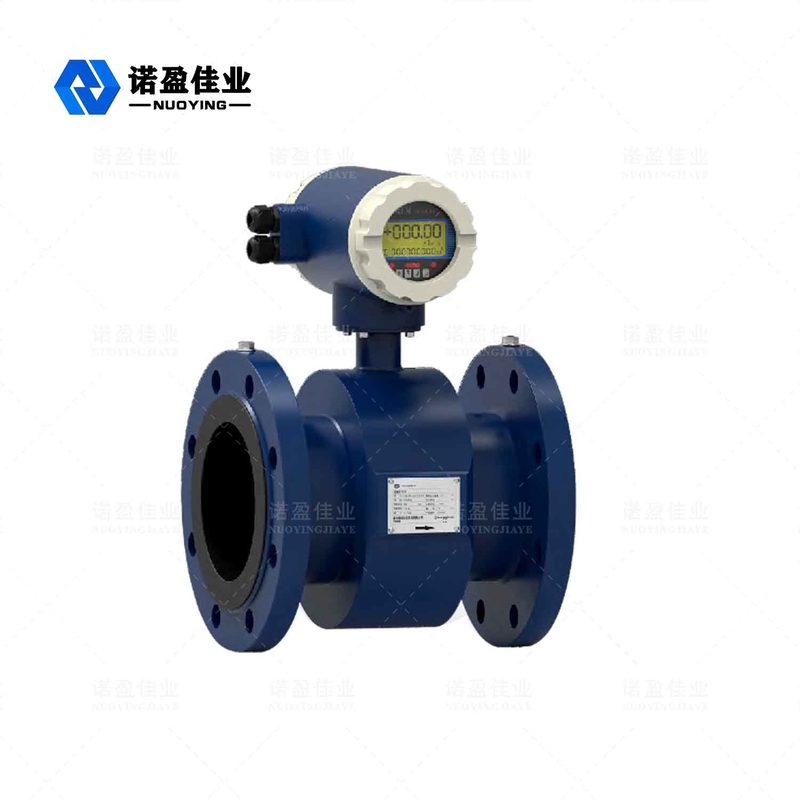

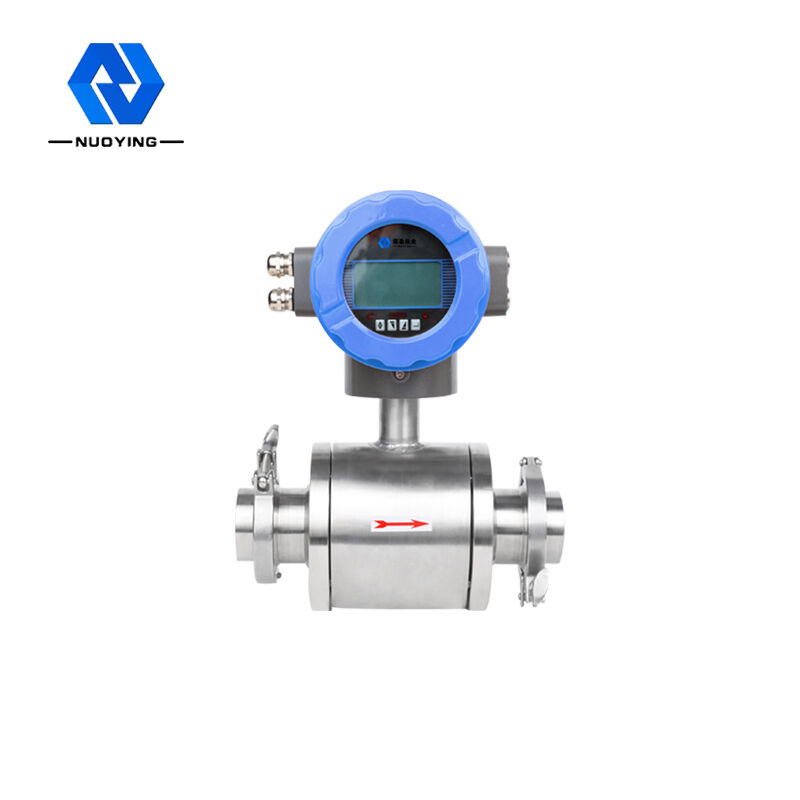

IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA

Large Image :  IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA

Product Details:
Place of Origin: China
Certification: Explosion-proof certificate
Model Number: NYLD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $300 to $1800
Packaging Details: Export standard packing
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 300 pcs/ pre month

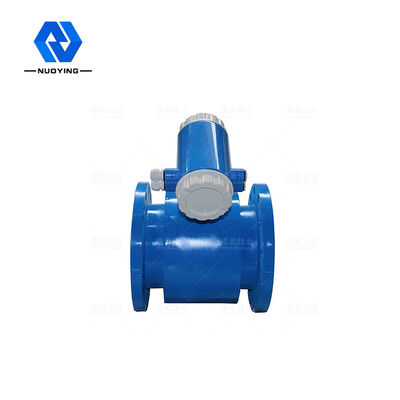

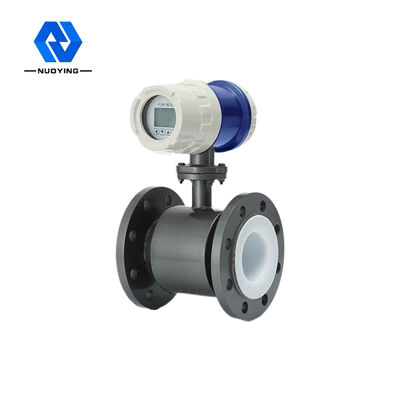

IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA

Flow Rate Range: 0.1-10m/s Flow Direction: Positive And Negative
Accuracy Grade: Pipe Type: 0.5 Grade, 1.0 Grade; Plug-in: 1.5 Grade, 2.0 Grade Communication Output: Rs485 Communication MODBUS Protocol, HART Communication Interface
Signal Output: 4-20mA, Operating Temperature: -20~90℃,-30~180℃
Ambient Humidity: 5%~95% Protection Grade: IP65, It Can Be Customized Up To IP68
High Light:

IP68 Intelligent Electromagnetic Flow Meter


Electromagnetic Flow Meter 10m/S


10m/s smart electromagnetic flow meter

NYLD Intelligent Type Electromagnetic Flowmeter ,Flow Rate Range:0.1-10m/S,4-20mA,,IP68

NYLD Intelligent Eletromagnetic Flowmeter


The NYLD intelligent type electromagnetic flowmeter consists of a sensor and a converter. It is based on Faraday's law of electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two-phase suspension liquid such as slurry, pulp and paper pulp. It is wdely used for flow measurement of petroleum, chemical, metallurgy, textile, papermaking, environmental protection, food and other industrial sectors and municipal management, water conservancy construction, rivers and other fields.


NYLD Intelligent Eletromagnetic Flowmeter Technical Parameters


Electromagnetic sensors general specification

Standard Nominal

diameter (mm) (Special specifications can be customized)

JB/T 9248-2015

pipe type PTFE lining: DN10~DN600; pipe type rubber lining ink:


Plug-in type: DN150~DN3000

Flow direction Positive and negative
Range ratio 20:1
Repeatability error ±0.1% of the measured value
Accuracy grade

pipe type: 0.5 grade, 1.0 grade;

Plug-in: 1.5 grade, 2.0 grade

Measured medium temperature

Normal rubber lining: -20~+60°C

High temperature rubber lining: -20~+90°C

PTFE lining: -30~+100°C

High temperature tetrafluoro lining: -20~+180°C

Rated operating pressure

(high pressure can be customized)


DN10-DN150: ≤1.6MPa

DN200-DN350: ≤1.0MPa

DN400-DN1000: ≤0.6MPa

DN450-DN2200: ≤0.25MPa

Flow rate range 0.1-10m/s
Conductivity range The conductivity ofthe measured fluid is ≥5μs/cm
Signal output 4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
Communication output

Rs485 communication MODBUS protocol, HART communication interface


Power supply 220VAC or 24VDC

Required straight

pipe length

Upstream ≥5DN

downstream ≥2DN

Connection mode The flowmeter and the pipe use flange connection, and the flange meets the national standard: GB/T9115.1-200
Explosion-proof grade ExdllСT6
Protection grade Ip65, it can be customized up to IP68
Ambient Temperature -25~+60℃
Ambient humidity 5%~95%
Total power consumption Less than 20W


NYLD Intelligent Eletromagnetic Flowmeter Operating Principle


According to the principle of Faradayelectromagnetic induction, a pair of detecting electrodes are mountedon the wall of the pipe perpendicular to the axis of the measuring pipe and the magnetic line of force.Whenthe conductive liquid moves along the axis of the measuring pipe, theconductive liquid cuts the magnetic line of force to generate an induced potential.The induced potential is detected by the two detection electrodes and the value is proportional to the flow rate.Thevalue is:

    E=KBVD Where: E- induced potential;
    K-thefactor related to the magnetic field distribution and the axial length;
    B-magnetic induction intensity;
    V-conductive liquid average flow rate;
    D-electrode spacing; (measure inner diameter of the pipe)


IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA 0

The sensor transmits the induced potential Eas a flow signal to the converter.After a series of digital processing such as amplification and conversion filtering, the instantaneous flow rate and the accumulated flow rate are displayed by the dot matrix liquid crystal with backlight.The converter has4-20mA output, alarm output and frequency output, and has RS-485 communication interface, and supports HARTand MODBUS


NYLD Intelligent Eletromagnetic Flowmeter Design Features


 Full digital processing, strong anti-interference ability, reliable measurement, high precision, flow measurement range can reach 150:1;
■  Ultra-low EMIswitching power supply, large voltage range of suitable power supply, goodanti-EMI performance;
■Use 16-bitembedded microprocessor, with fast operation speed, high precision, and programmable low-frequency rectangular wave excitation,improving the stability of flow measurement and low power consumption;
■ Use SMD parts and surface mount (SMT) technology, high circuit reliability;
■ No moving parts in the pipe, no flow blocking parts, and there is almost no additional pressure loss in the measurement;
■ Itcan modify the range online on site according to the actual needs of users;
■The measurement results are independent of the physical parameters such as flow velocity distribution, fluid pressure, temperature, density, viscosity;
■ High-definition backlit LCDdisplay, fullChinese menuoperation, easy to use, easy to operate, easy to learn and understand;
■ Withdigital communication signal output such as RS485, RS232, Hartand Modbus (optional);
■ With self-test and self-diagnosis function;
■ With hourly total recording function, recording the total amount of flow in hours, suitable for time-sharing measurement (optional);
■Thereare three Integrators, which can display the forward accumulation amount ,the reverse accumulation amount and the difference calculation amount respectively..There is an internal power-down clock, which can record 16 power-down times. (optional);

■ With infrared handheld operator, 115KHZcommunication rate, it can operate all functions of converter remotely without contact (optional).



NYLD Intelligent Eletromagnetic Flowmeter Composition and Structure


The electromagnetic flowmeter consists of the following components:


IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA 1


The electromagnetic flowmeter mainly consists of a sensor a nd a converter. The sensor includes a flange, a lining, an electrode, a measuring pipe, an excitation coil, a sensor housing and so on; the converter includes
1. Converter: provides a stable excitation current for the sensor, at the same time, converts the induced electromotive force obtained by the sensor into a standard electrical signal, and displays real-time flow and parameters for display, control and adjustment of the flow.
2. Lining: a complete layer of electrically insulating corrosion-resistant material on the inside of the measuring pipe and on the flange sealing surface.
3. Electrode: a pair of electrodes mounted on the wall of the measuring pipe to detect the flow signal, and another 1-2 grounding electrodes mounted for the grounding and anti-interference of the flow signal measurement.


IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA 2


NYLD Intelligent Eletromagnetic Flowmeter Instrument Classification


1. According to the instrument structure, the vortex flowmeter can be divided into three categories, namely:

① No resistance parts in the measuring pipe, no pressure loss.

② With simple structure, the electromagnetic flowmeter measuring pipe can use different lining according to

different qualifications, and the reliability is high.

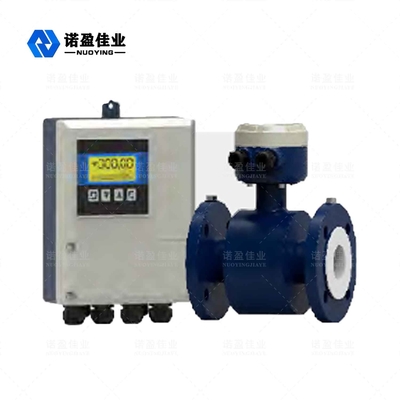

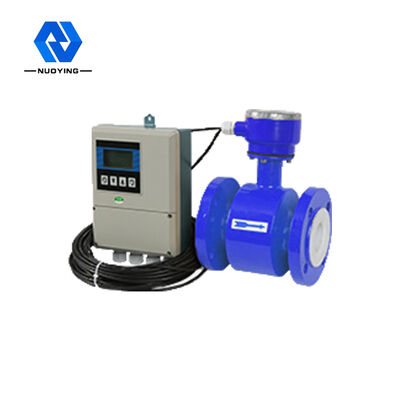

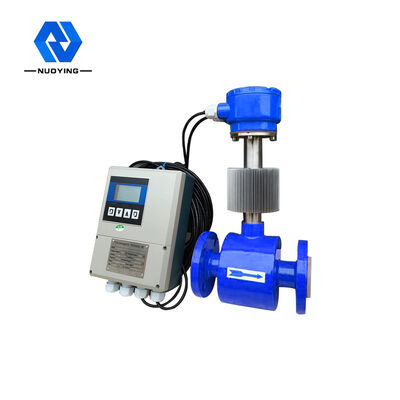

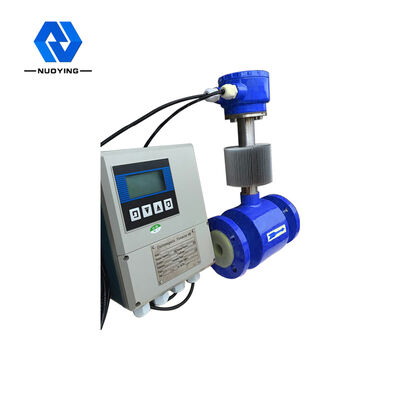

■ Separate type electromagnetic flowmeter

The converter and the main body are installed separately, which is convenient for centralized installation and easy to read data.

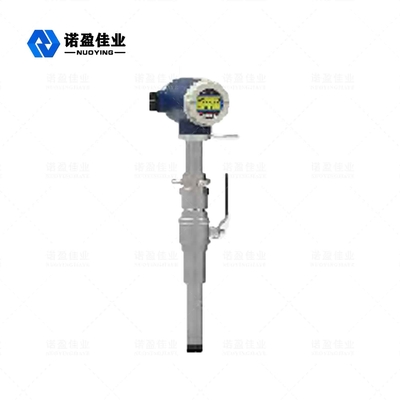

Plug-in type electromagnetic flowmeter

It is widely applicable to the flow measurement of large caliber conductive liquid medium in various industries.

①Wide nominal diameter range, suitable for all caliber pipes between DN150~DN3000.

②The sensor uses novel excitation mode, low power consumption, stable zero point and high precision. The flow range can reach 1500:1


NYLD Intelligent Eletromagnetic Flowmeter Selection


      Model       Description
NYLD— □ □ -□ □ □ -□ Full pipe type electromagnetic flowmeter
NYLD—             Plug-in type electromagnetic flowmeter
Path             10-2200mm




Integrated type

Separate type



Electrode material









Stainless steel

Ti (titanium)



Pt platinum

Ni nickel

Output mode





No output



Lining material









Polyurethane rubber

Local display




No local display

Local display

Communication mode






No communication Rs485 communication (MODBUS protocol)

HART communication

GPRS wireless communication

Grounding ring





Without grounding ring

With grounding ring

Ground electrode

Upper limit flow     (n)       Upper limit flow (range) m3/h
