Product Details:
|
| Flow Range: | 0~6500 M3/h | Pressure Loss: | 0.2KPa,0.3KPa,,0.35KPa, |
|---|---|---|---|
| Nominal Pressure: | 1.6~40MPa | Filtering Accuracy: | 20um 50um 130um |
| Housing Material: | Carbon Steel Q235B | Filter Material: | Stainless Steel Wire |
| Working Temperature: | -30℃~+60℃ | Nominal Diameter: | DN25-DN300 |
| Highlight: | Q235B Carbon steel strainer,Carbon steel strainer 20um,40MPa natural gas strainer |
||

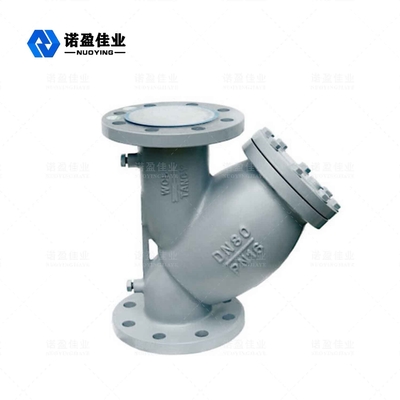

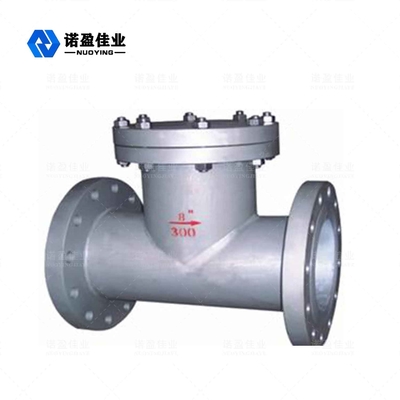

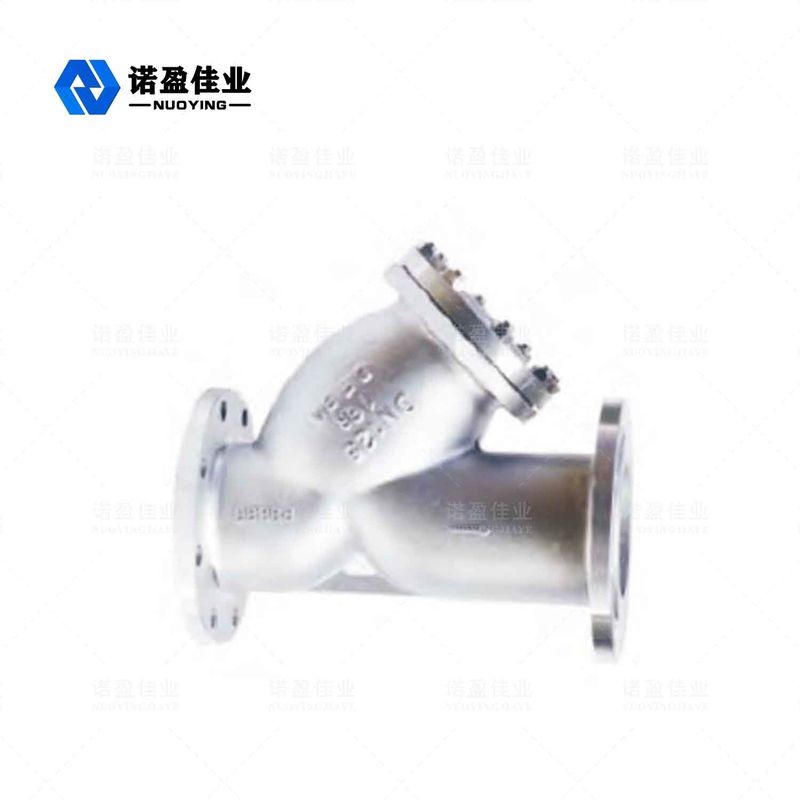

NYLD-GYQ Series Gas Filter
The NYLD-GYQ gas filter is an important equipment of the gas transmission and distribution system. In the gas transmission process, in order to ensure the normal operation and protection of the gas transmission and distribution equipment and meters such as pressure regulators, valves, flowmeters, pressure meters, etc., it must remove the solid impurities in the gas. It is necessary to install a filter with the required filtering accuracy in front of it, so our company has developed and produced the GYQ series filter specifically for the above requirements, which is applicable for natural gas, liquefied petroleum gas, city gas and other gases.
Gas filters are widely used in metallurgy, chemical industry, petroleum, paper making, medicine, food, mining, electric power, urban water supply fields. Such as industrial waste water, circulating water filtration, emulsion regeneration, waste oil filtration treatment, metallurgical industry continuous casting water system, blast furnace water system, hot rolling with high pressure water descaling system. It is an advanced, efficient and easy to operate automatic filtration device.
NYLD-GYQ Series Gas Filter Technical Parameters
| Model specification | Maximum flow(m3/h |
Pressure loss( kPa)
|
Nominal pressure | Filtering accuracy | Housing material | Filter material | Working temperature |
|
NYLD-GYQ-25 NYLD-GYQ-32 NYLD-GYQ-50 NYLD-GYQ-80 |
80 100 150 400 |
0.2 0.2 0.2 0.2 |
1.6~40MPa |
20um 50um 130um |
Carbon steel Q235B |
Stainless steel wire |
-30℃+60℃ |
|
NYLD-GYQ-100 NYLD-GYQ-150 NYLD-GYQ-200 NYLD-GYQ-250 NYLD-GYQ-300 |
650 1600 2500 4000 6500 |
0.3 0.3 0.3 0.35 0.35 |
1.6MPa |
NYLD-GYQ Series Gas Filter Feature
■ Easy installation and operation, easy to use and maintain;
■ Optional filtering accuracy, and it can be equipped with a differential pressure meter that displays the dirtyness of the filter;
■ Large filter area and small fluid flow resistance;
■ Stainless steel filter core is durable, easy to clean and reusable;
■ Y-type filter and outlet flange are American standard flanges, which can be used with gas roots flowmeter
■ Durable stainless steel filter core
■ Easy installation and operation
■ Small fluid flow resistance
