NYRD703 1.8GHz Guided Wave Radar Level Meter Level Transmitter Measuring Range 0~20m

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

NYRD703 1.8GHz Guided Wave Radar Level Meter Level Transmitter Measuring Range 0~20m

NYRD703 1.8GHz Guided Wave Radar Level Meter  Level Transmitter Measuring Range 0~20m
NYRD703 1.8GHz Guided Wave Radar Level Meter  Level Transmitter Measuring Range 0~20m NYRD703 1.8GHz Guided Wave Radar Level Meter  Level Transmitter Measuring Range 0~20m

Large Image :  NYRD703 1.8GHz Guided Wave Radar Level Meter Level Transmitter Measuring Range 0~20m

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYRD703
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $400 to $1800
Packaging Details: 40cm×30cm×30cm
Delivery Time: 5-8work days
Payment Terms: T/T
Supply Ability: 100 pcs/ pre month

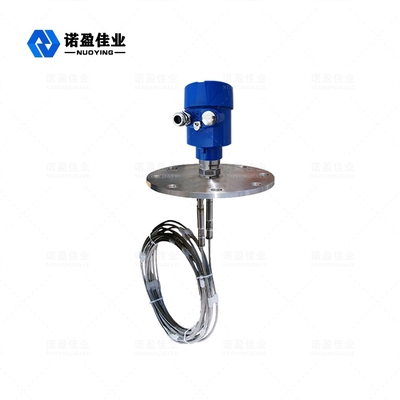

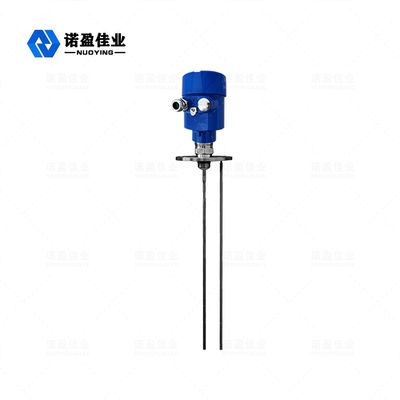

NYRD703 1.8GHz Guided Wave Radar Level Meter Level Transmitter Measuring Range 0~20m

Description
Measuring Range: Cable 20m,rod 6m Typical Application: Low Dielectric Constant Liquid
Material: 304,316L (optional) Process Connection: Flange(optional),
Process Pressure: -0.1-4MPa, -1~40BAR Signal Output: 4-20mA / Hart / RS485 (Modbus)
Explosion-proof Grade: Exia II C T6 Ga Protection Class: IP67



NYRD703 1.8GHz Guided Wave Radar Level Meter



The guided wave radar level meter is a level meter based on the principle of time domain reflection (TDR). The electromagnetic pulse of the radar level gauge propagates along the steel cable or probe at the speed of light. Part of the pulse of the level meter is reflected to form an echo and return to the pulse transmitter along the same path. The distance between the transmitter and the surface of the measured medium is proportional to the propagation time of the pulse during that period, and the liquid level height is calculated.



Radar Level Meter Technical Parameter



Typical application Liquids, Low dielectric constant liquid
Antenna material Flexible cable/304/PTFE (optional)
Measuring range 0~20m(cable),0~6m
Accuracy ±1mm
Power supply 24 VDC(Two-wire,Four- wire)
Medium temperature  -40~+130℃
Pressure e -0.1~4.0MPa
Process connection Thread, Flange (optional)
Protection class IP67
Explosion-proof grade ExiaⅡCT6(optional)
Signal output 4...20mA/HART/RS485/Modbus...



 Note: Products can be customized according to the specific requirements of users!



Radar Level Meter Operating Principle



The high-frequency microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable or steel rod), and when it encounters the measured medium, due to the sudden change of the dielectric constant, it causes reflection, and a part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.



NYRD703 1.8GHz Guided Wave Radar Level Meter  Level Transmitter Measuring Range 0~20m 0



◎ Enter
Guided wave radar is a measuring instrument based on the principle of time travel. The radar wave runs at the speed of light, and the running time can be converted into a level signal through electronic components. The probe emits high-frequency pulses and propagates along the cable or rod probe. When the pulses meet the surface of the material, they are reflected back and received by the receiver in the instrument, and the distance signal is converted into a level signal.
The reflected pulse signal is transmitted to the electronic circuit part of the instrument along the cable or rod probe, and the microprocessor processes the signal to identify the echo generated by the microwave pulse on the surface of the material. The correct echo signal identification is completed by the pulse software, and the distance D from the material surface is proportional to the time travel T of the
pulse:
    D=C×T/2,where C is the speed of light
    Since the distance E of the empty tank is known, the material level L is:L=E-D
◎ Export
Set by entering empty tank height E (= zero point), full tank height F (= full scale) and some application parameters, the application parameters will automatically adapt the instrument to the measurement environment, corresponding to 4- 20mA output.





Radar Level Meter Design Features



◎ Guided wave radar level meter adopts advanced microwave processing technology and unique Echo Discovery echo processing technology, contact measurement, high measurement accuracy and more accurate measurement. At the same time, the guided wave radar is resistant to adhesion and is not affected by the external environment such as medium temperature and adhesion.
◎ A variety of process connection methods and types of detection components make 70X series guided wave radar level gauges suitable for various complex working conditions and applications. Such as: high temperature, high pressure and small dielectric constant medium.
◎ Using pulse working mode, the product has extremely low emission power, and can be installed in various metal and non-metal
containers without harm to human body and the environment.
