Product Details:
|
| Type: | Variable Area Air & Gas Flowmeters, U Type | Accuracy: | 0.2%FS |
|---|---|---|---|
| Medium: | Liquid Nitrogen | Ambient Temperature: | -40~+60℃ |
| Material: | Aluminum Alloy | Communication: | RS485/Modbus |
| Output: | 4-20mA | Power Supply: | 18~36V/85~265V |
| High Light: | Modbus Biogas Flow Meter,Biogas Flow Meter 265V,220VAC insertion thermal mass flow meter |
||

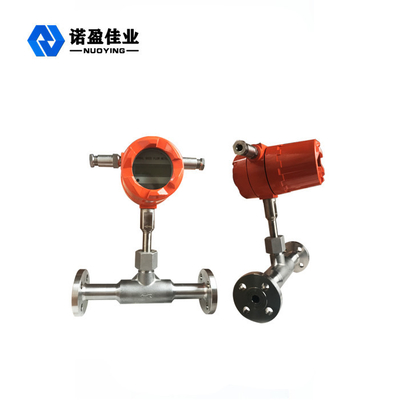

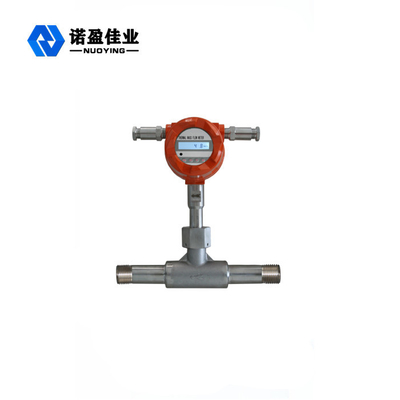

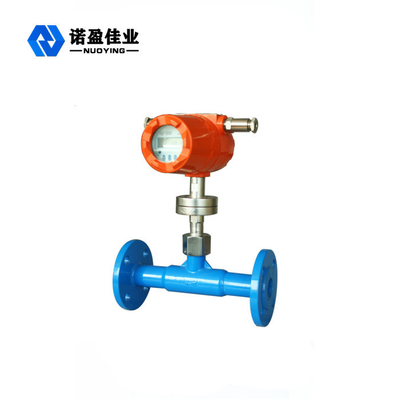

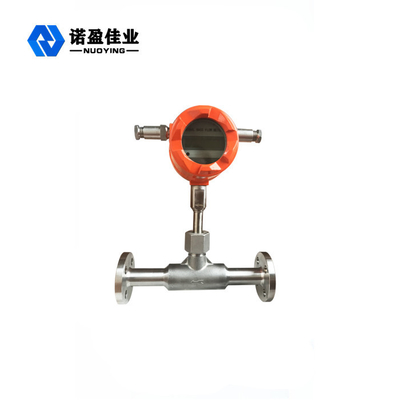

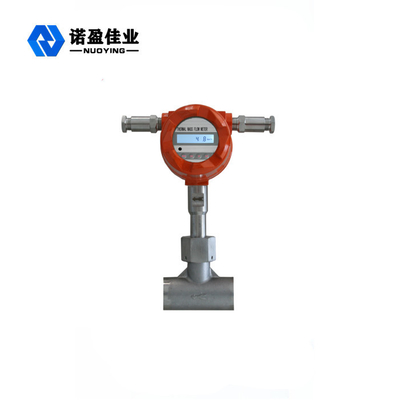

Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter
Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Description:
The meter contains two platinum resistance temperature sensors. The thermal principle operates by monitoring the cooling effect of a gas stream as it passes over a heated sensor. Gas flowing through the sensing section passes over two sensors one of which is used conventionally as a temperature sensor, whilst the other is used as a heater.
The temperature sensor monitors the actual process values whilst the heater is maintained at a constant differential temperature above this by varying the power consumed by the sensor. The greater the gas velocity, the greater the cooling effect and power required to maintain the differential temperature. The measured heater power is therefore a measure of the gas mass flow rate.
Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Parameters:
| Description | Specifications |
| Measuring Medium | Various gases (Except the acetylene) |
| Pipe Size | DN10~DN4000mm |
| Velocity | 0.1~100Nm/s |
| Accuracy | ±1 -2.5% |
| Working Temperature | Sensor: -40°C ~+220°CTransmitter: -20°C ~+45°C |
| Insertion Sensor: medium pressures 1,6MPaFlanged Sensor: medium pressures 1.6MPaSpecial pressure please contact us | |
| Power Supply | Compact type: 24VDC or 220VAC, Power consumption <18WRemote type: 220VAC, Power consumption <19W |
| Response Time | 1s |
| Output | 4-20mA (, maximum load 500Q), Pulse, RS485 and HART |
| Alarm Output | 1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC |
| Sensor Type | Standard Insertion, Hot-tapped Insertion and Flanged |
| Construction | Compact and Remote |
| Pipe Material | Carbon steel, stainless steel, plastic, etc |
| Display | 4 lines LCD Mass flow. Volume flow in standard condition. Flow totalizer. Date and Time, Working time, and Velocity, etc. |
| Protection Class | IP65 |
| Sensor Housing Material | Stainless steel (316L) |
Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Features:
Measuring the mass flow or volume flow of gas
Do not need to do temperature and pressure compensation in principle with accurate measurement and easy operation.
Wide range: 0.5Nm/s～100Nm/s for gas. The meter also can be used for gas leak detection
Good vibration resistance and long service life. No moving parts and pressure sensor in transducer, no vibration influence on the measurement accuracy.
Easy installation and maintenance. If the conditions on site are permissible, the meter can achieve a hot-tapped installation and maintenance. (Special order of custom-made)
Digital design, high accuracy and stability
Configuring with RS485 or HART interface to realize factory automation and integration
