Product Details:
|
| Type: | Variable Area Air & Gas Flowmeters | Pressure: | 16bar |
|---|---|---|---|
| Accuracy: | 1.5%FS | Power Supply: | 24VDC |
| Output: | RS485 | Material: | SS316 |
| Temperature: | -40C - +220 C | Construction: | Compact And Remote |
| High Light: | DN300 Thermal Mass Flow Transmitter,Thermal Mass Flow Transmitter LCD Display,DN300 thermal flow transmitter |
||

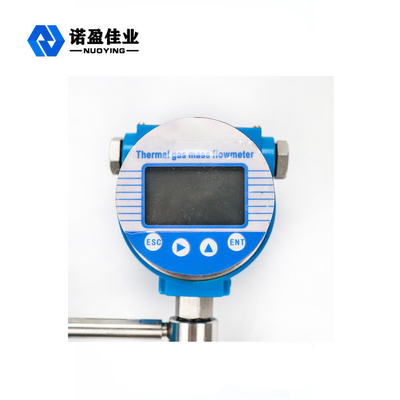

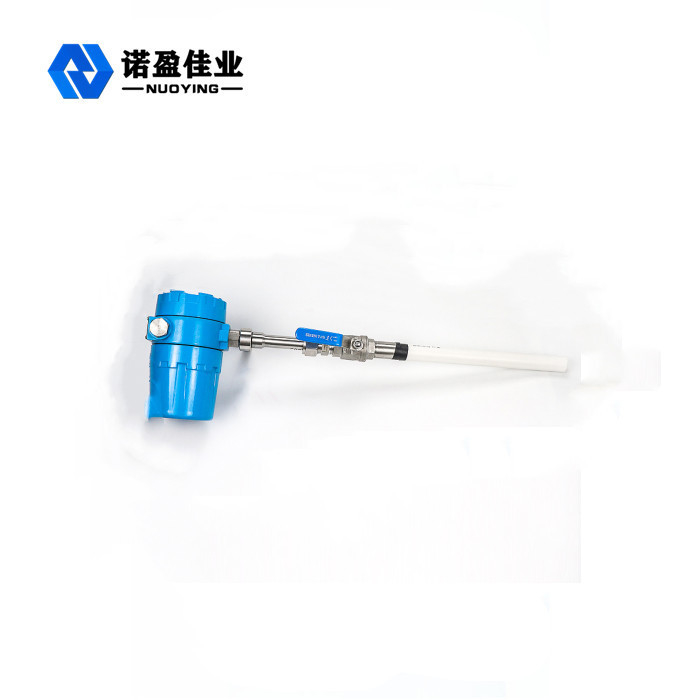

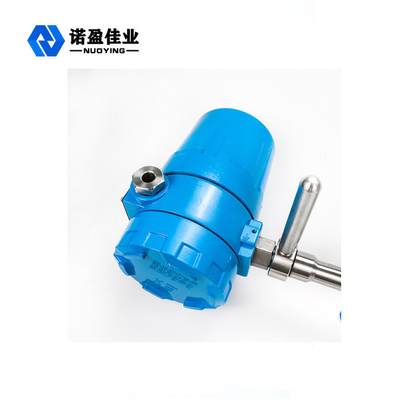

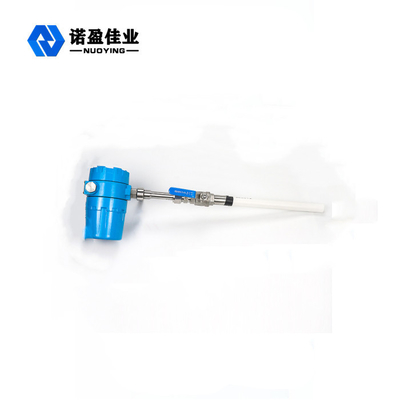

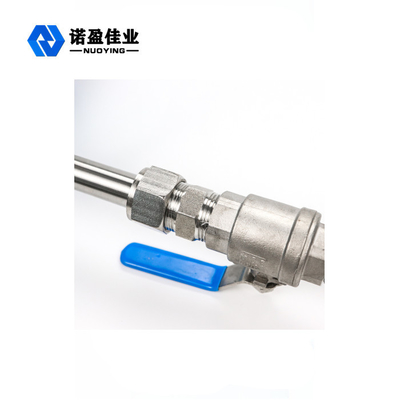

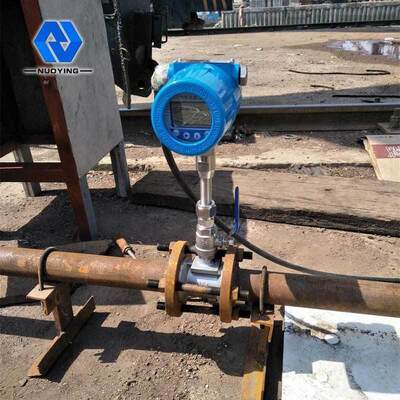

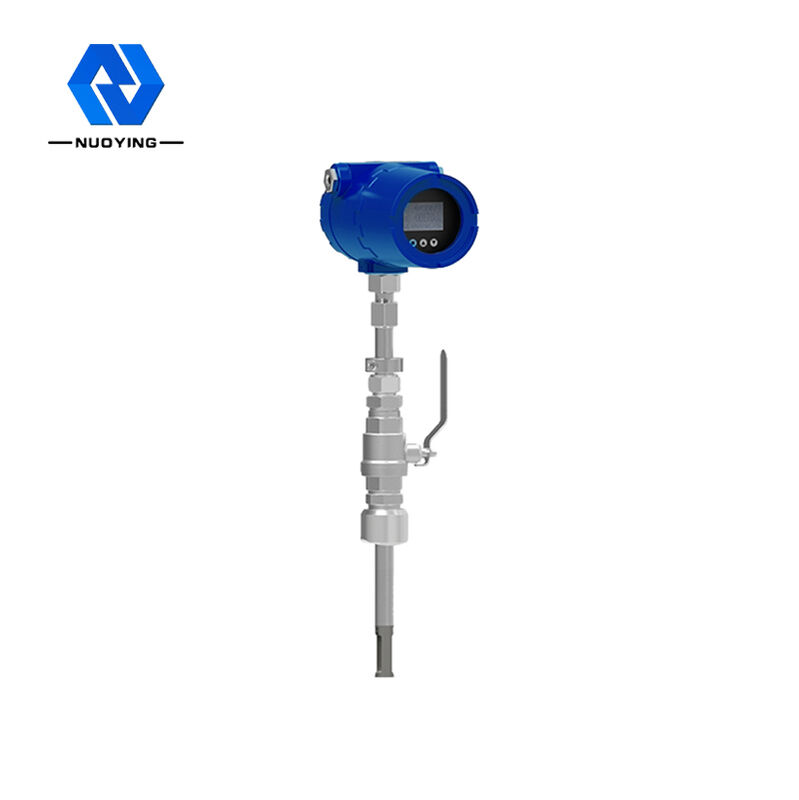

LCD Display Stainless Steel Thermal Gas Mass Flow Meter
LCD Display Stainless Steel Thermal Gas Mass Flow Meter Description:
LCD Display Stainless Steel Thermal Gas Mass Flow Meter is designed on the basis of thermal dispersion,and adopts method of constant differential temperature to measuring gas flow.It has advantags of small size,easy installation,high reliability and high accuracy,tec.Gas flowing through the sensing section passes over two sensors one of which is used conventionally as a temperature sensor, whilst the other is used as a heaterImproper installation and use can lead to abnormal and damage of the instrument and even the process control equipment.
LCD Display Stainless Steel Thermal Gas Mass Flow Meter Technical Parameters:
| Description | Specifications |
| Type | Variable Area Air & Gas Flowmeters |
| Measuring | Various gases (Except the acetylene) |
| Accuracy | 1.5% |
| Working Temperature |
Sensor:-40°C~+220°C Transmitter:-20°C~+45°C |
| Working Pressure |
Insertion Sensor:medium pressures≤1.6MPa Special pressure please contact us |
| Power Supply | Compact type: 24VDC Power consumption≤18W |
| Output | RS485(optoelectronic isolation) |
| Alarm Output | Relay,Normally Open state |
| Sensor Type | Standard Insertion |
| Construction | Compact |
| Pipe Material | Carbon steel,stainless steel,plastic,etc |
| Display | Mass flow,Volume flow in standard condition,Flow totallzer,Date and Time,Working time,and Velocity,etc |
LCD Display Stainless Steel Thermal Gas Mass Flow Meter Features:
LCD Display Stainless Steel Thermal Gas Mass Flow Meter Application:
