Product Details:
|
| Accuracy: | 1.5% | Pipe Size: | DN10-1500 |
|---|---|---|---|
| Power: | 220V | Medium: | All Gases |
| Flow Rate: | 0.1-100Nm/s | Warranty: | 1 Year |
| High Light: | Compress Air Thermal Mass Gas Flow Meter,Thermal Mass Gas Flow Meter 24VDC,1.5A thermal flow transmitter |
||

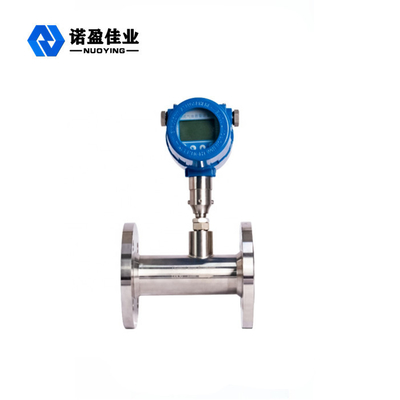

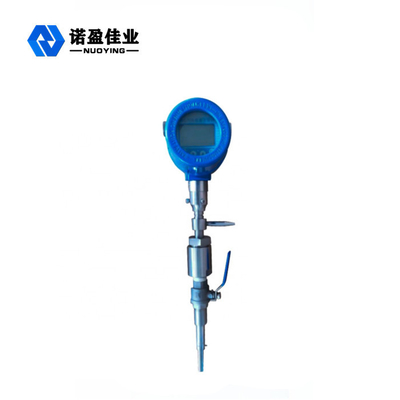

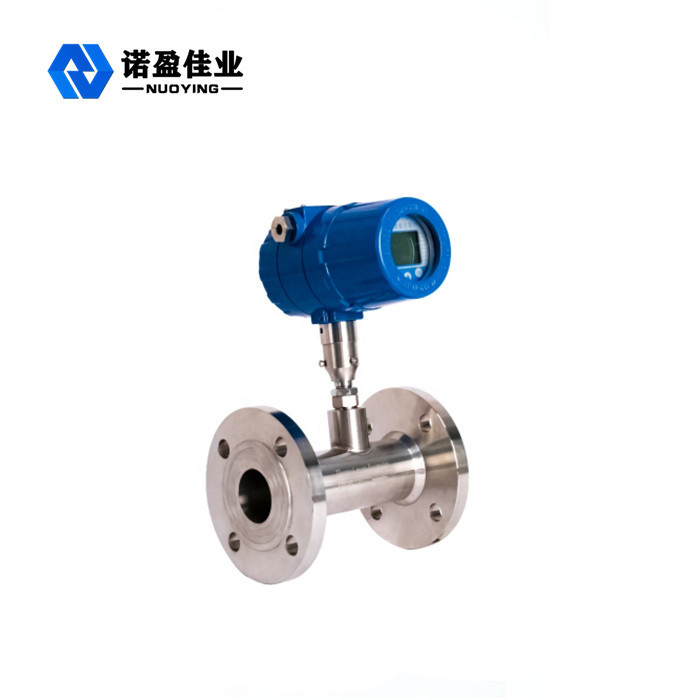

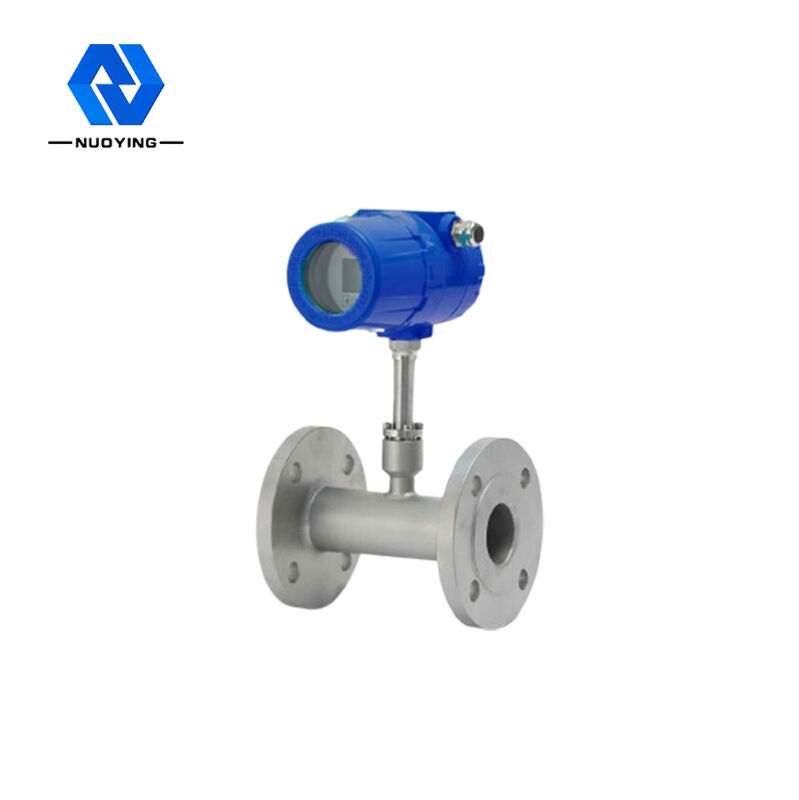

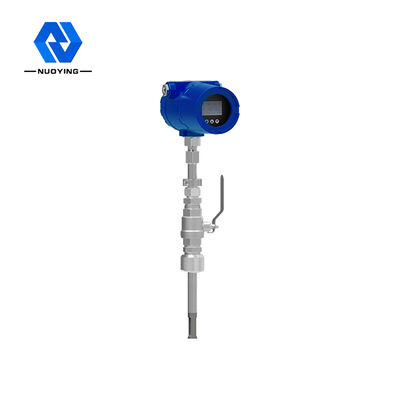

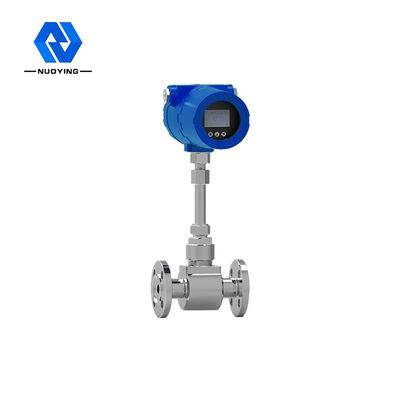

Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer
Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer Description:
Thermal gas mass flowmeter is designed based on the principle of thermal diffusion. The instrument uses constant temperature difference method to measure gas accurately.The former monitors the actual process temperature value; The latter maintains a constant temperature value so that it is always higher than the actual process temperature and maintains a constant temperature difference with the process temperature. The greater the mass flow rate of gas, the greater the cooling effect and the greater the energy required to maintain the differential temperature. Therefore, the mass flow rate of the measured gas can be obtained by measuring the energy of the heater.
Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer Parameters:
| Material | Stainless steel, Cast steel |
| Display | 4 lines LCD display |
| Accuracy | ±1% |
| Measuring range | All gases (except acetylene) |
| Diameter (MM) | DN10-100 (Flange type), DN125-1500 (Insert type) |
| Flow rate | 0.1-100Nm/s |
| Output | Standard: 4-20mA, Option: RS485/RS232 |
| Press | 1.6Mpa, Option (2.5MPa, 4.0MPa, 6.4Mpa) |
| Power | Standard: 24VDC/1.5A, Option: 220VAC |
| Conditions of use | A. ambient temperature:-20 ~+150 ℃ |
| B. medium temperature: 0 ~+200 ℃ | |
| C. relative humidity: 45-75% | |
| D. atmospheric pressure: 86 kpa-106 kpa | |
| Protection level | IP65 |
Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer Features:
1. Thermal gas mass flowmeter does not need temperature and pressure compensation for gas flow measurement. It can measure the mass flow rate or standard volume flow rate of the gas.
2. Wide range ratio. It can measure gas with flow rate from 0.5Nm/s to 100Nm/s, and also can be used for gas leak detection.
3. Easy installation and maintenance. On-site conditions permit, installation and maintenance without shutdown can be realized.
