Product Details:
|
| Type: | Insertion;Flanged | Medium: | Ammonia Gas |
|---|---|---|---|
| Accuracy: | 2.5%FS | Power Supply: | 24VDC Or 220VAC |
| Output: | Pulse, RS485 And HART | Material: | SS316 |
| Temperature: | -40C - +220 C | ||
| High Light: | SS316 LPG Mass Flow Meter,LPG Mass Flow Meter Ammonia Gas,thermal mass air flow meter 1.6MPa |
||
LPG Gas Mass Flow Meter,LPG Flow Meter,Gas Flow Meter

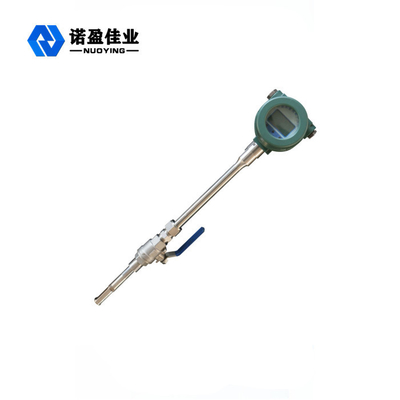

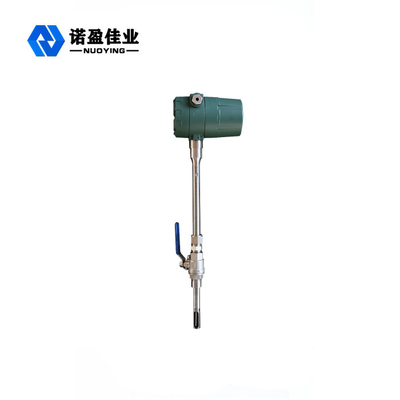

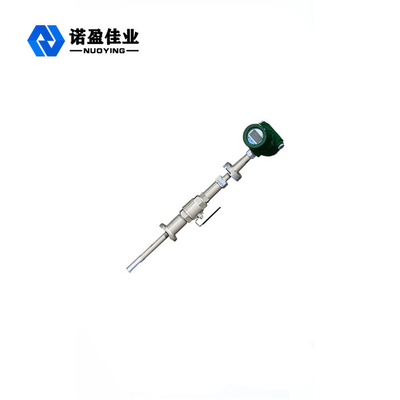

LPG Gas Mass Flow Meter
LPG Gas Mass Flow Meter Description:
LPG gas mass flowmeter is designed on the basis of thermal dispersion,and adopts method of constant differential temperature to measuring gas flow.It has advantags of small size,easy installation,high reliability and high accuracy,tec.The meter contains two platinum resistance temperature sensors. Gas flowing through the sensing section passes over two sensors one of which is used conventionally as a temperature sensor, whilst the other is used as a heaterImproper installation and use can lead to abnormal and damage of the instrument and even the process control equipment. Engineers and technicians who install, set up and connect the product must read this manual carefully before using the instrument.
LPG Gas Mass Flow Meter Parameters:
| Technical Parameters | |
| Description | Specifications |
| Type | Insertion:Flanged |
| Measuring | Various gases(Except the acetylene) |
| Accuracy | 2.5% |
| Working Temperature |
Sensor:-40°C~+220°C Transmitter:-20°C~+45°C |
| Working Pressure |
Insertion Sensor:medium pressures≤1.6MPa Flanged Sensor:medium pressures≤1.6MPa Special pressure please contact us |
| Power Supply |
Compact type: 24VDC or 220VAC,Power consumption≤18W Remote type: 220VAC,Power consumption≤19W |
| Output | 4-20mA (optoelectronic isoltion,maximum load 500Ω),Pulse,RS485(optoelectronic isolation) |
| Alarm Output | Relay,Normally Open state,10A/220V/AC or 5A/30V/DC |
| Sensor Type | Standard Insertion ,Hot-tapped Insertion and Flanged |
| Construction | Compact and Remote |
| Pipe Material | Carbon steel,stainless steel,plastic,etc |
| Display |
Mass flow,Volume flow in standard condition,Flow totallzer,Date and Time,Working time,and Velocity,etc |
| Sensor Housing Material | Stainless steel(316) |
LPG Gas Mass Flow Meter Features:
