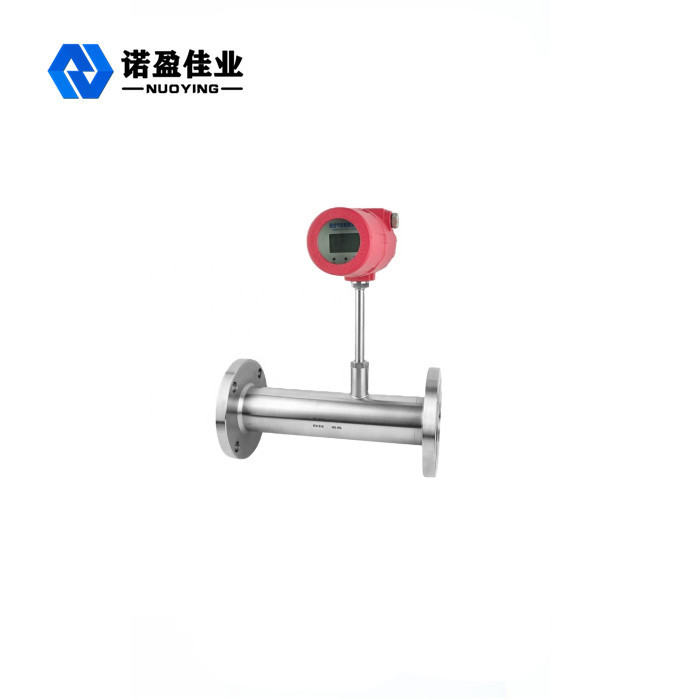

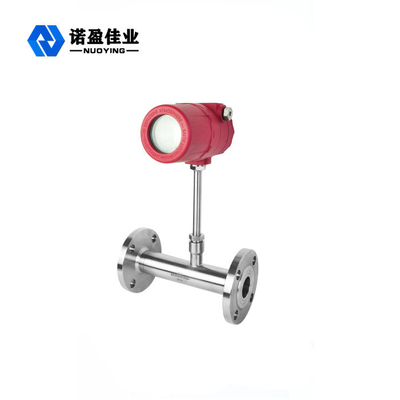

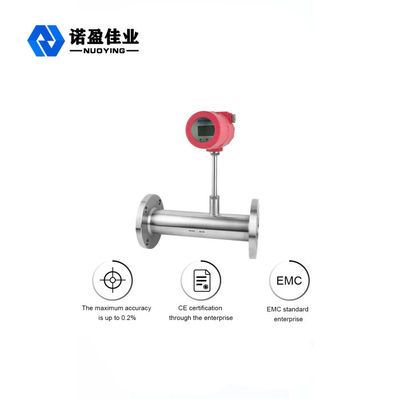

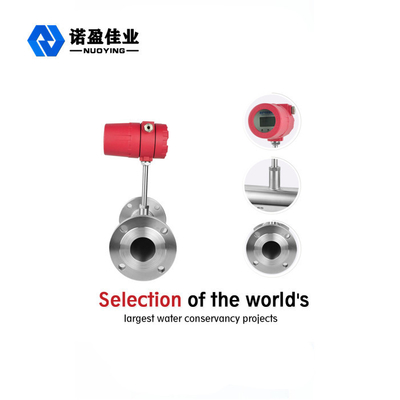

4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm

4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm
4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm

Large Image :  4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm

Product Details:
Place of Origin: Xi'an,China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate,CE
Model Number: NYHGF-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $620.0~$680.0
Packaging Details: 60*30*30cm Carton
Payment Terms: T/T
Supply Ability: 800pcs/pre month

4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm

Description
Pressure: 0.6~4.0MPa Output: 4-20mA /RS485
Power Supply: 220VAC/ 24VDC Accuracy: ±1~2.5%
Sensor Housing Material: Stainless Steel (316) Temperature: Sensor: -40℃~+220℃ Transmitter: -20℃~+45℃
Pipe Size: DN10~DN4000mm Medium: Various Gases (Except The Acetylene)
High Light:

4MPa Air Mass Flow Meter

,

Insertion Mass Flow Meter 316

,

DN4000mm water flow meter with rs485

Oxygen Air Flowmeter Clean Gas Thermal Mass Flow Meter Control



Oxygen Air Flowmeter Clean Gas Thermal Mass Flow Meter Control Description:



     Oxygen air flowmeter clean gas thermal mass flow meter control thermal gas mass flow meter is designed on the basis of thermal dispersion, and adopts method of constant differential temperature to measuring gas flow. It has advantages of small size, easy installation, high reliability and high accuracy, etc.



Oxygen Air Flowmeter Clean Gas Thermal Mass Flow Meter Control Parameters:





Description Specifications
Measuring Medium Various gases (Except the acetylene)
Pipe Size DN10~DN4000mm
Velocity 0.1~100 Nm/s
Accuracy ±1~2.5%
Working Temperature Sensor: -40℃~+220℃ Transmitter: -20℃~+45℃
Working Pressure Insertion Sensor: medium pressure≤ 1.6MPa
Flanged Sensor: medium pressure≤ 1.6MPa
Special pressure please contact us
Power Supply Compact type: 24VDC or 220VAC, Power consumption ≤18W
Remote type: 220VAC, Power consumption ≤19W
Response Time 1s
Output 4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 (optoelectronic isolation) and HART
Alarm Output 1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC

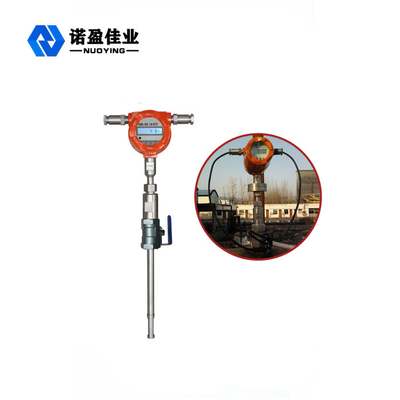

Sensor Type Standard Insertion, Hot-tapped Insertion and Flanged
Construction Compact and Remote
Pipe Material Carbon steel, stainless steel, plastic, etc
Display 4 lines LCD Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc.
Protection Class IP65
Sensor Housing Material Stainless steel (316)



Oxygen Air Flowmeter Clean Gas Thermal Mass Flow Meter Control Features:



1.It can measure gas mass flow without temperatureand pressure compensation.

2. Large measuring range ratio, flow velocity measurement range: 0.1Nm/s ~ 120Nm/s.
3. No pressure loss, suitable for all pipes with known sectional area in any shape.
4. With corrosion-resistant sensor, it is applicable to measuring corrosive gases.
5. Insertion-type sensor can be installed and maintained online



4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 04MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 1

4MPa Air Insertion Mass Flow Meter 316 Stainless Steel DN4000mm 2
