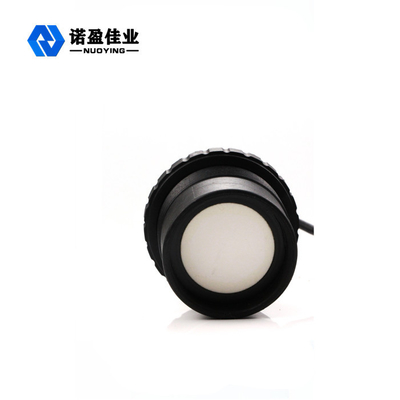

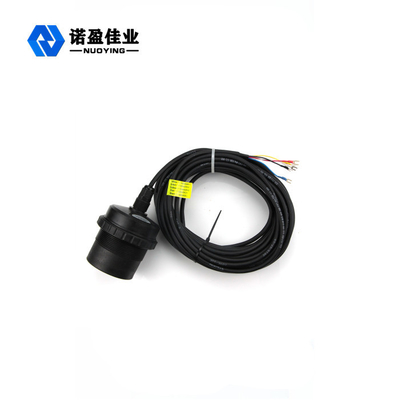

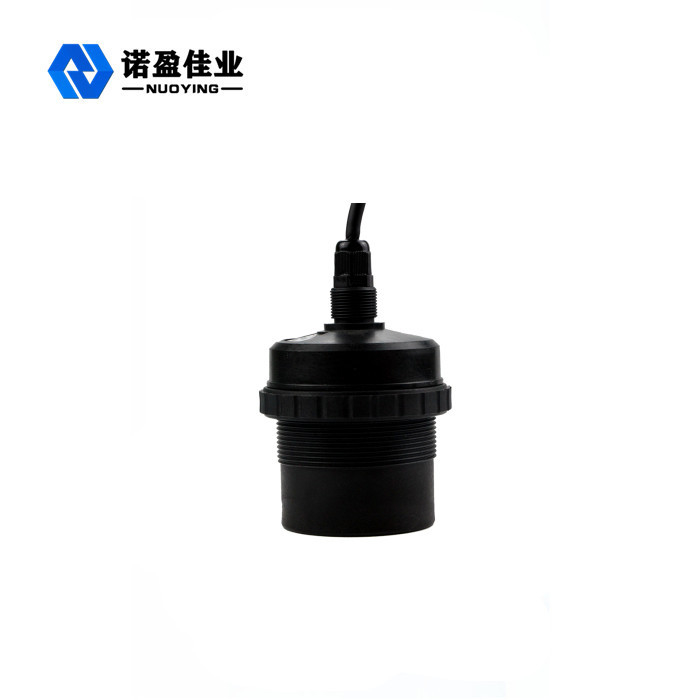

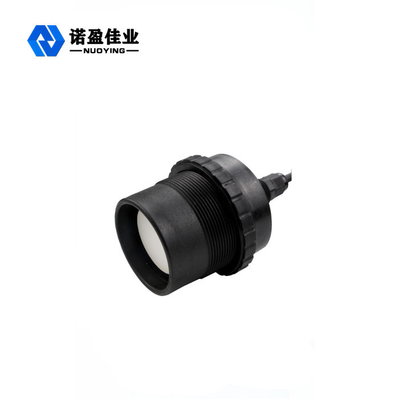

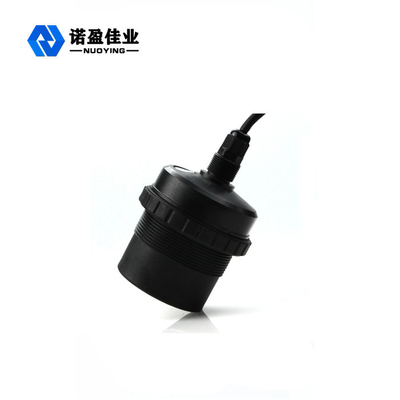

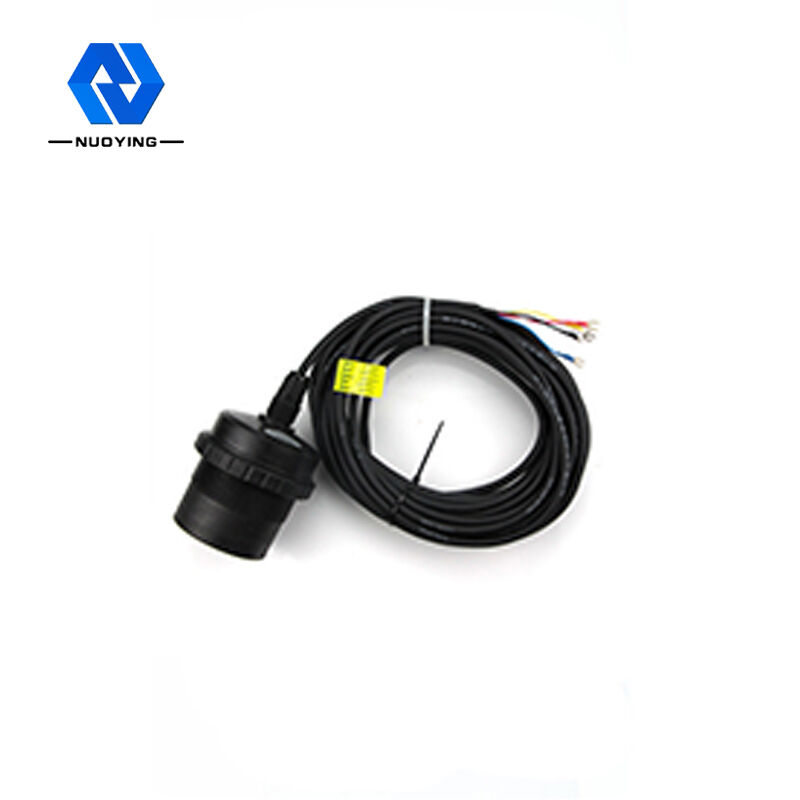

IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area

IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area
IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area

Large Image :  IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area

Product Details:
Place of Origin: Xi'an,China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYSCUL-502
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $95.0~$175.0
Packaging Details: 30*20*20cm Carton
Payment Terms: T/T

IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area

Description
Output: 4~20mA(three-wire),1~5V,RS485 Range: ≤15M
Theory: Ultrasonic Sensor Probe Blind Area: 500mm
Working Temperature: 0~+50°C Protection: IP65
OEM: Acceptable
High Light:

IP65 Ultrasonic Level Transmitter

,

Ultrasonic Level Transmitter 15M

,

sonar tank level sensor 15M

Waterproof Ultrasonic level transmitter



Waterproof Ultrasonic level transmitter Description:



     Combined ultrasonic sensor, temperature sensor, ultrasonic servo circuit and transmitter circuit. Adopts SMD components, ASC chip and plated circuit boards, ensure the product with small volume but good long term reliability.NYSCUL compound material housing, endurable and with good acoustic property.Suitable for most of sites and user friendly.



Waterproof Ultrasonic level transmitter Parameters:



Item Specification
range ≤15m
Blind ≤300~350mm(according to sensor can Customize:200mm)
Accuracy ±0.5%F·S(Customized:0.25% F·S)
Output signal 4~20mA three wire system,4~20mA four wire system,1~5V,RS485,RS232,
1~10V (OEM)
Beam angle 9°,15°,12°(according to sensor can Customize)
Operating temperature 0~50°C (Customize )
Power Supply DC24V/ DC12V/AC220V(OEM)
Cable way Water proof connector ,down-lead 0.5m
Defend grade IP65(Customized:IP66,IP67,IP68)
Mounting model screw, or sifter clamping
Thread size:M68×2.0mm





Waterproof Ultrasonic level transmitter Features:



IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area 0





Waterproof Ultrasonic level transmitter Application:



IP65 Waterproof Ultrasonic Level Transmitter 15M 500mm Blind Area 1
