Product Details:
|
| Measure Range: | 0-5m | Power Supply: | 220VAC |
|---|---|---|---|
| Materil: | ABS | Output: | 4-20mA |
| Accuracy: | 0.3% | Blind Area: | 0.4m |
| Type: | Ultrasonic Sensor | Communication: | RS485,RS232,wirless,GPRS |
| High Light: | ABS ultrasonic tank level meter,ultrasonic tank level meter 5m,10A 24V DC sonar water level sensor |
||

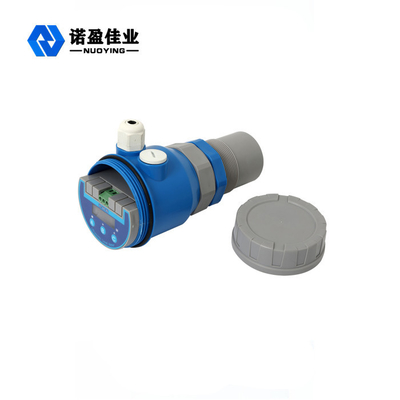

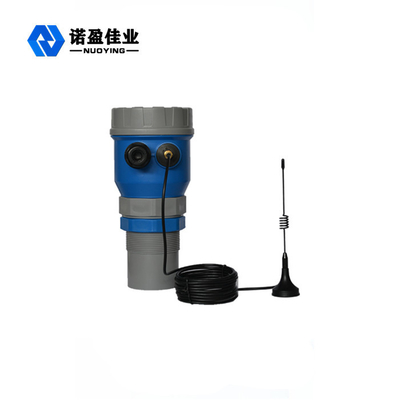

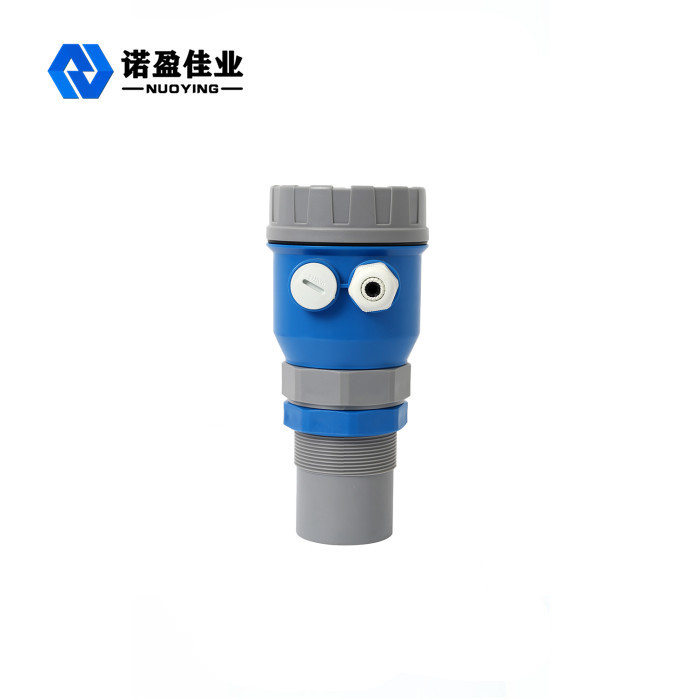

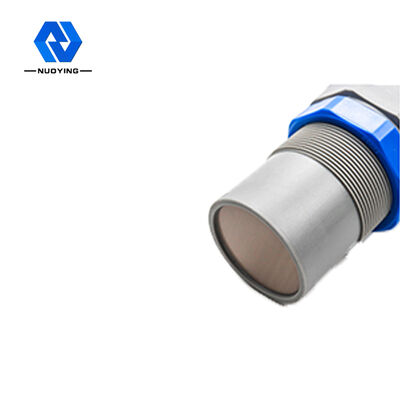

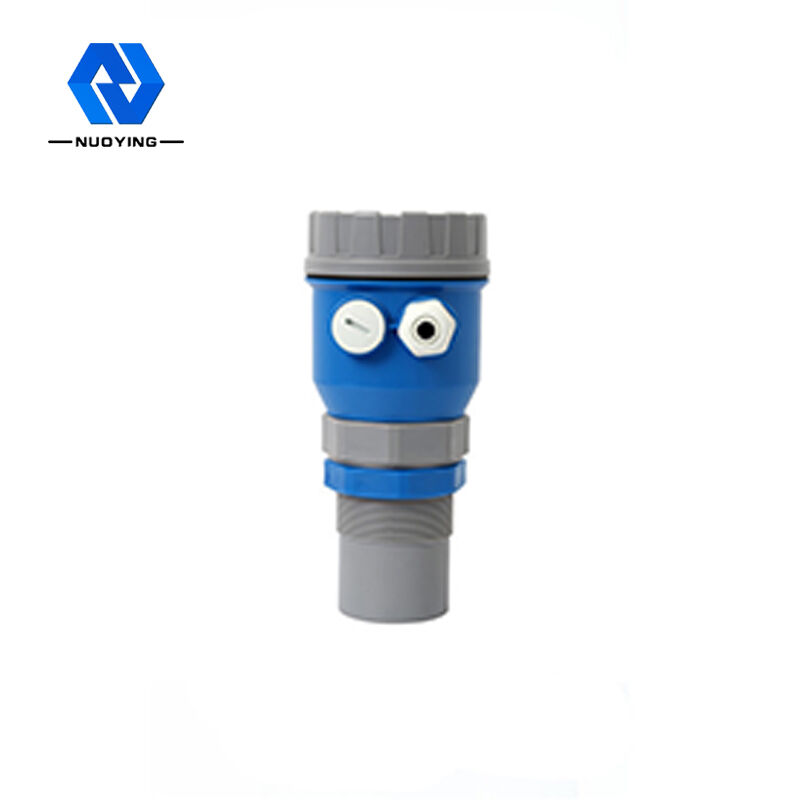

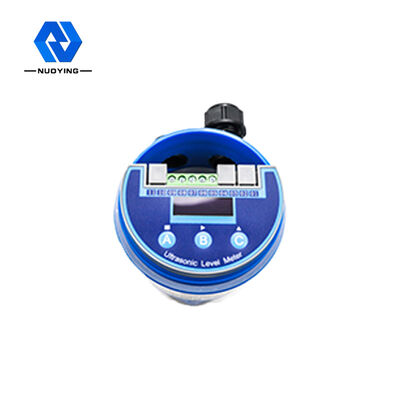

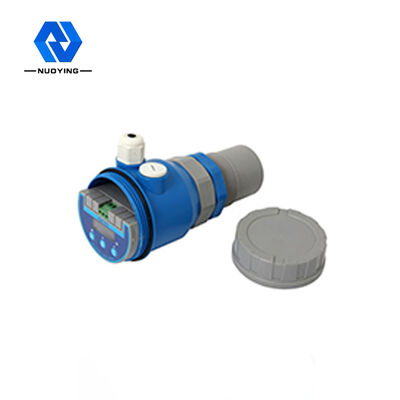

Water Liquid Ultrasonic Tank Level meter Ultrasonic level Sensor
Water Liquid Ultrasonic Tank Level meter Ultrasonic level Sensor Description:
Ultrasonic Level Meter is microprocessor controlled digital level instrument. Ultrasonic pulses generated by the sensor (transducer) sent in the measurement, the surface acoustic wave after reflection by the liquid or receiving the same ultrasonic receiver transducer, a piezoelectric crystal or a magnetostrictive element into an electrical signal by transmitting and receiving sound waves the time between the sensor to calculate the distance to the measured surface of the liquid. As a result of non-contact measurement, the measured media is almost unlimited, and can be widely used for measuring the height of a variety of liquid and solid materials.
Water Liquid Ultrasonic Tank Level meter Ultrasonic level Sensor Parameters:
| Range | 2m,5m,8m,10m,12m,15m,20m,25m,30m |
| Beam angle | ≤10° |
| Resolution | 1mm |
| Frequency | 20 KHz~2000KHz |
| Accuracy | ±0.3%F.S |
| Display | LED,LCD,OLED(optional) |
| Output | 0~20mA;4~20mA(load>300Ω);0~5V;0~10V |
| Communiction | RS485 |
| Wireless | GPRS |
| Switch | two way NPN/relay(AC:5A 250V DC:10A 24V) |
| Power | DC12~24V or AC220V |
| Power consumption | <1.5W |
Water Liquid Ultrasonic Tank Level meter Ultrasonic level Sensor Application:
Water and sewage treatment: pumping stations, collecting wells, biochemical reaction tanks, sedimentation tanks;Control of electric power: mine mortar tank, coal slurry tank, butter tank, stacking yard or some mobile devices, etc.Food industry:wineries, granaries, food materials, tanks, etc.Matching of control system.
