Product Details:
|
Nominal Diameter DN (mm): | DN15~DN200 | Atmosphericmedium Temperature: | -30℃~+65℃ |
---|---|---|---|
Accuracy Grade: | ±1.5%R,±1.0%R | Communication Output: | Rs485 Communication MODBUS Protocol, HART Communication Interface |
Ambient Humidity: | 5%~95% | Measured Medium Temperature: | -20℃~+80℃ |
Atmospheric Pressure: | 86KPa~106KPa | Power Supply: | 24VDC, 220VAC (optional) |
High Light: | 24VDC Intelligent Vortex Flow Meter,Vortex Flow Meter 106KPa,DN200 flow sensor turbine |

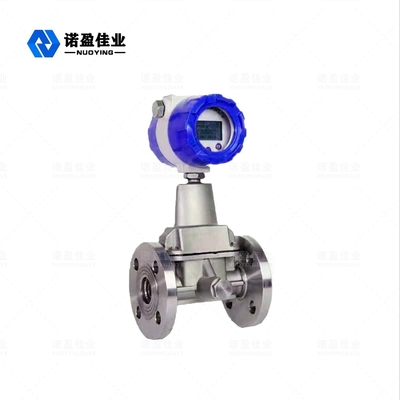

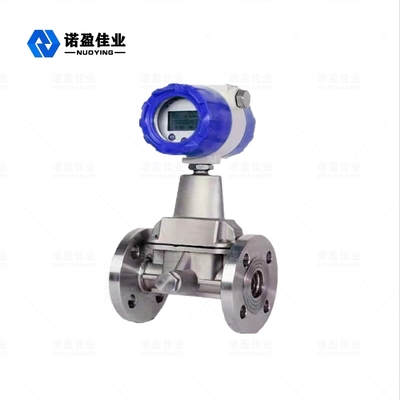

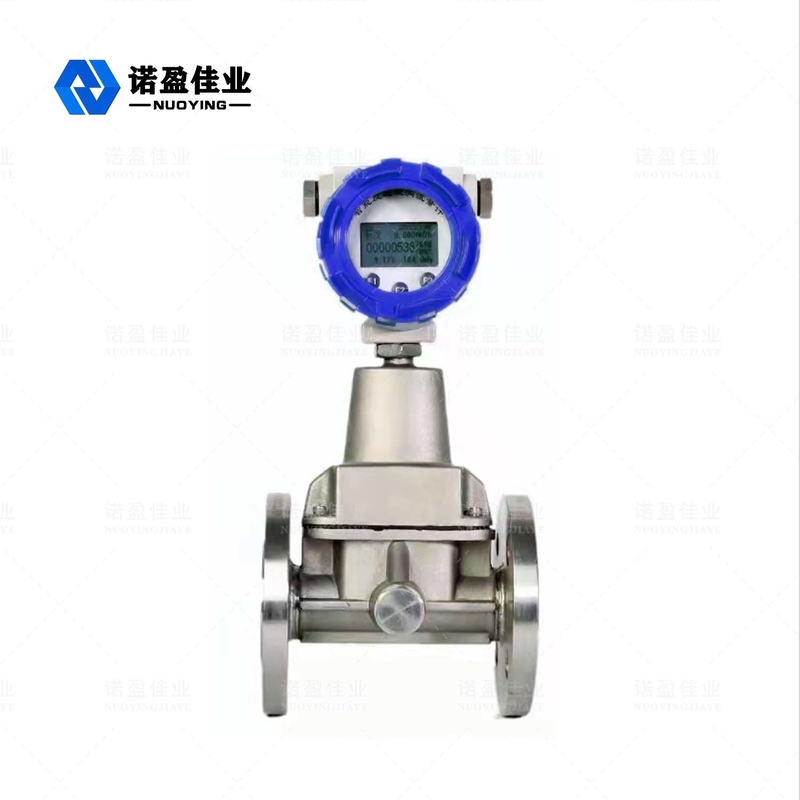

Intelligent Precession Vortex Flowmeter
Intelligent precession vortex flowmeter is a new type of gas flow meter developed by our company with domestic leading level. The flowmeter integrates flow, temperature and pressure detection functions, and can automatically compensate temperature, pressure and compression factors. It is an ideal instrument for gas measurement in petroleum, chemical, electric power, metallurgy and other industries.
Intelligent Precession Vortex Flowmeter Technical Parameters
Nominal diameter DN (mm) | Type |
Flow range (m3/ h) |
Working pressure(MPa) |
Accuracy class
|
Repetitive |
15 | 1.0-10 |
1.6 2.5 4.0 6.3 10 16 |
1.0 1.5 |
It's less than 1/3 of the absolute value of the base error limit | |
20 | 1.5-15 | ||||
25 | 3.0-30 | ||||
32 | 6.0~60 | ||||
40 | 7.0~70 | ||||
50 | A | 12~150 | |||
B | 2.5~75 | ||||
80 | A | 40~400 | |||
B | 10~200 | ||||
100 | A | 80~900 | |||
B | 30~600 | ||||
150 | A | 150~1500 | |||
B | 40~900 | ||||
200 | 240~3600 | 1.6;2.5;4.0 |
Intelligent Precession Vortex Flowmeter Design Features
