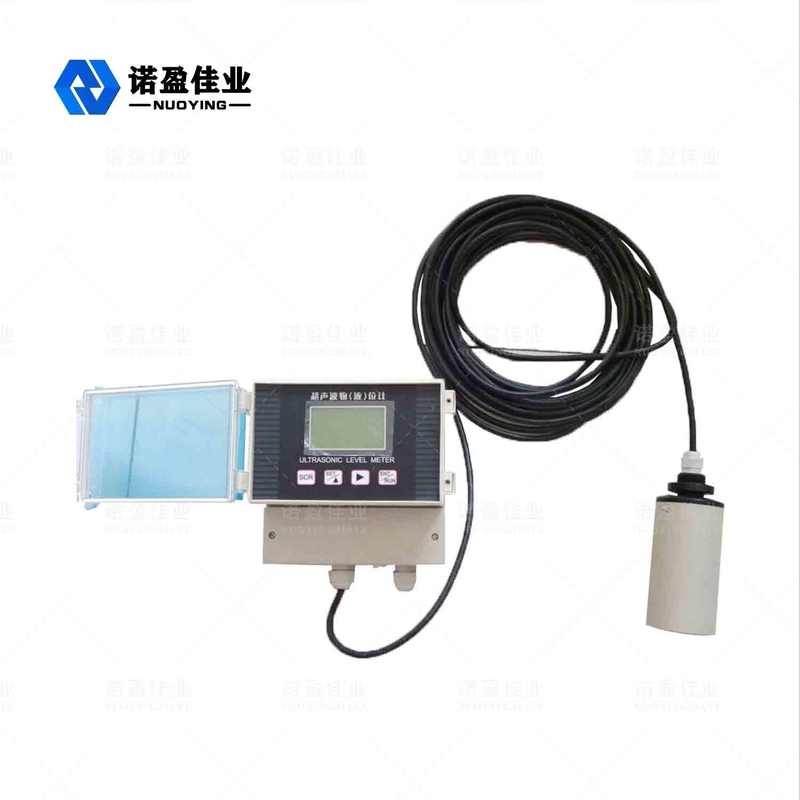

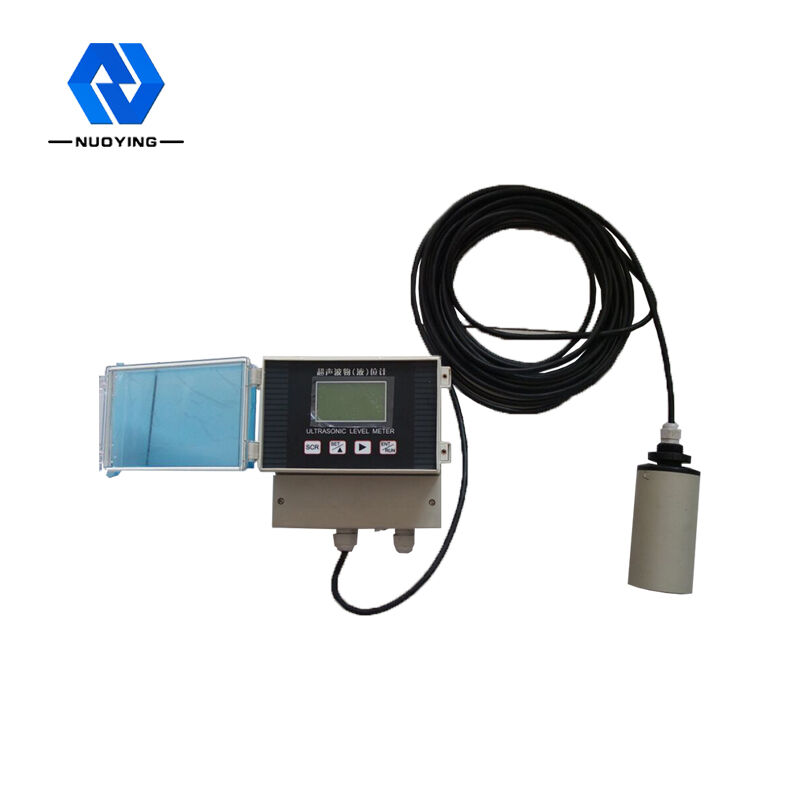

Wastewater Ultrasonic Level Meter Split Ultrasonic Water Depth Meter

International Standard Industrial Waste Water Level Meter Split Ultrasonic Level Meter

The NYCSUL Ultrasonic Level Measurement is mounted on top of the vessel. Under the control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted into electrical signal. From the emission of the ultrasonic wave to the new reception,the time is direct proportion to the distance from the probe to the measured medium. The electronic unit detects the time and calculates out the easured distance according to the known sound velocity. Use subtraction to obtain the value of medium position. It is widely used in open pipe, oil tank, pump station, water tower, dam,open channel, difference between levels etc.

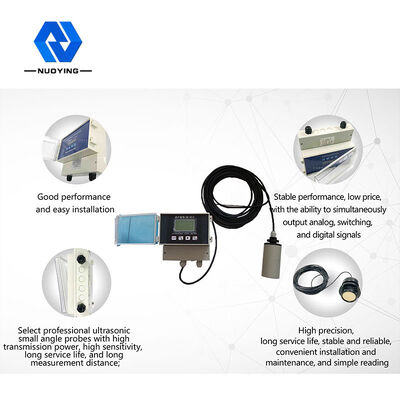

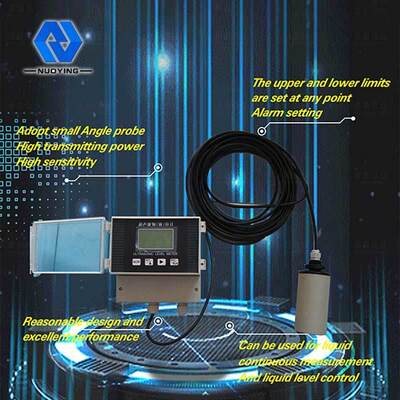

Ultrasonic Level Transmitter Product features

• Automatic power adjustment, gain control, temperature compensation.
• Physical sealed probe, IP68 protection grade, no water, improve service life.
• Special echo processing technology, on-site failure can be identified for the cause of failure, convenient maintenance.
• With interference echo suppression function to ensure the real measured data, strong anti-interference ability.
• Various output forms: programmable relay output, high precision 4-20mA current output, RS-485, RS-232 digital communication output, wireless GPRS output, etc.
• Low price, small size, light weight, can be used for food, chemical, semiconductor and other industries of liquid unconnected type level measurement, can be used for remote level monitoring and pump control.
