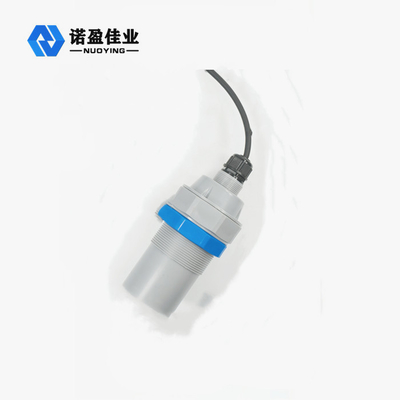

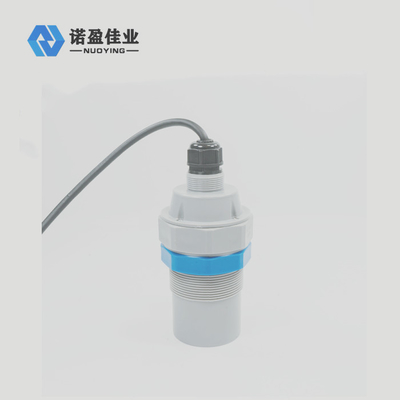

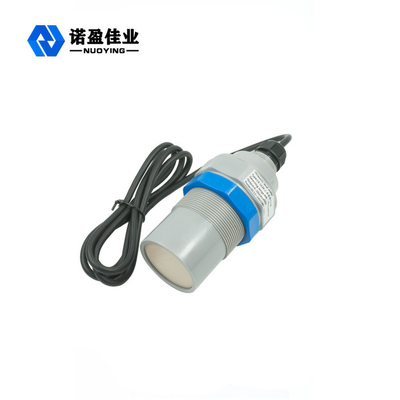

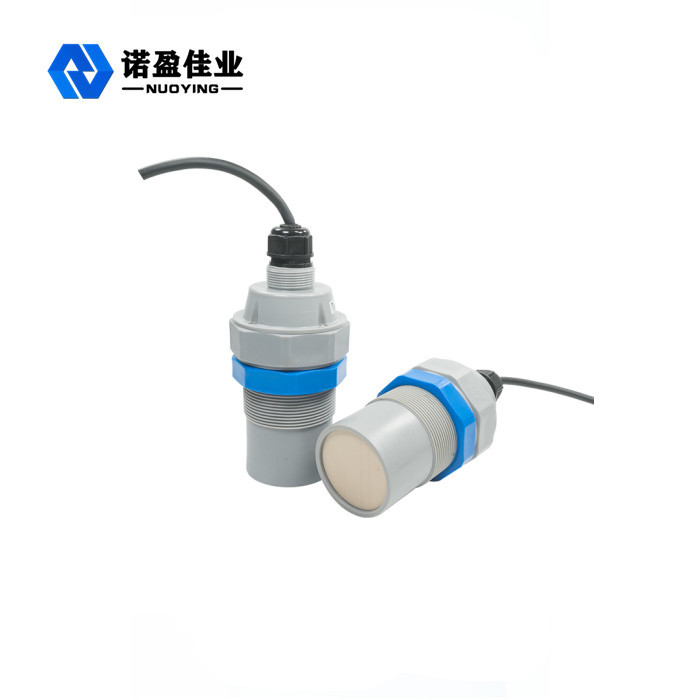

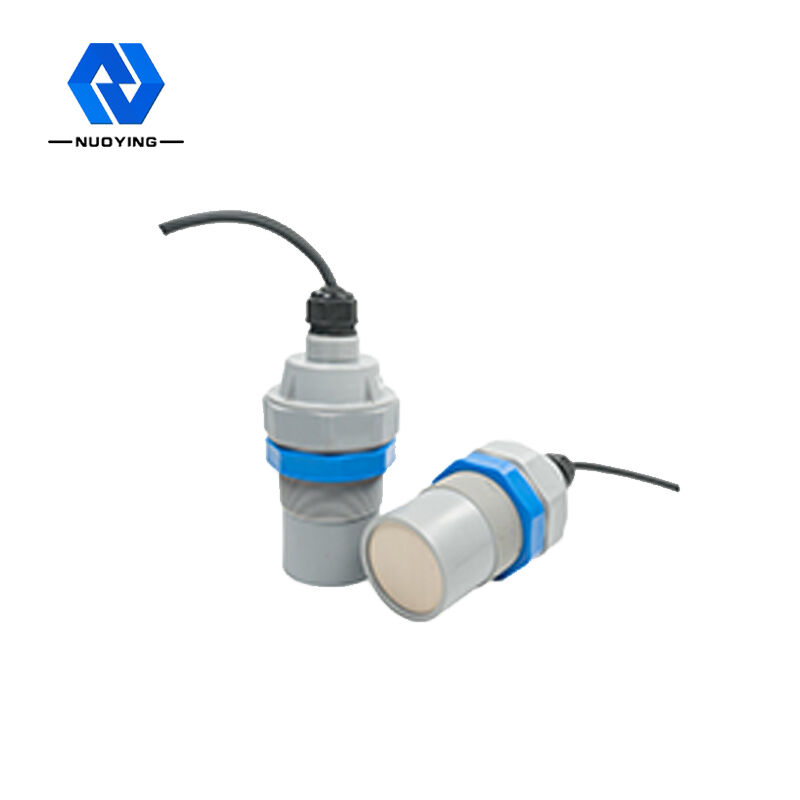

5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial

5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial
5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial 5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial 5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial 5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial

Large Image :  5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial

Product Details:
Place of Origin: Xi'an,China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYCSUL-502
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $85.0~$125.0
Packaging Details: 30*20*20cm Carton
Payment Terms: T/T
Supply Ability: 2000pcs/pre month

5m Ultrasonic Fuel Tank Level Sensor Remote Non Contact Industrial

Description
Grade: Industrial Measuring Range: 20m
Display: None Display Connector Material: ABS
Power Supply: 12~24V Connection: M60*2 ABS
Accuracy: 0.5%
High Light:

5m Ultrasonic Fuel Tank Level Sensor

,

Industrial Ultrasonic Fuel Tank Level Sensor

,

5m level ultrasonic sensor

Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor



Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Description:



     Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.

    It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.



Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Parameters:





Measuring range 0~20m 5meters 0~30m lm;2m
Blind zone 0.25~2m 0.4 0.3~2m 0.06-0.15
Angle <10° <12° <12° <6°
Accuracy ±0.25%RS ±0.3%F.S ±0.3%F.S <1.5mm
Display LED,LCD,OLED None LCD LED;OLED
Output 4-20mA;Relay 4-20mA;Relay 4-20mA; Relay ;0-5v;0-10v 0-20mA;4-20mA;Relay
  RS485;0-10v RS485;0-10v;hart RS485;HART;USB RS485;0-5V;0-10V
Power supply DC12-28V;220V DC12-24V(3 wires) AC220V or 24VDC DC12-24V
Material ABS Plastic ABS plastic ABS Material or Aluminium ABS;SS material
Connector Thread or flange M60*2 Thread Thread or flange Thread
Protection IP65 IP65 IP65 IP65
Explosion proof EXiall BT4Gb EXiall BT4Gb EXiall BT4Gb EXiall BT4Gb



Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Features:



Widely Applications of level sensor

The water tank level sensor's measuring can not be influenced by foam,power,steam and etc...

Various Type for Various Conditions

The level sensor with Two-wires,Three-wires,Split type and Without display type and etc...for you reference...

Applications of water level sensor

The well depth,Power station,Stirred tank,Sewage tank,Biogas tank,Swinning pool and more...

Various Output of non-contact water level sensor

The 4~20mA,Hart,RS485,0-5C;0-10V for you reference.



Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Installation:



1.Sensor should be placed where there is no obstacle between emission surface and measured liquid,it also should be far away from feeding throats;

2.Tank shape should be considered.some type of container will bring second echo,expecially conical and spherical tank,a good installation place will solve the problem;

3.Ultrasonic level meter can be installed by flange or thread,whatever installation way,make sure the sensor bottom through the installation hole or flange.

4.If the liquid to be measured has sewage,a float impurities or flunctuation .use a wave guide and the diameter of the waveguide should over 120mm.
