Product Details:
|
| Material: | ABS | Output Signal: | 4-20mA/HART |
|---|---|---|---|
| Supply Power: | 24VDC | Connection: | Thread |
| Color: | Blue | Accuracy: | 0.5% |
| Range: | 20m | ||
| High Light: | ABS Wireless Ultrasonic Level Transmitter,20m Blue HART Level Transmitter,20m Blue sonar level sensor |
||

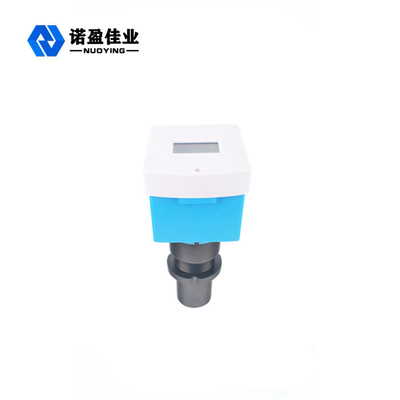

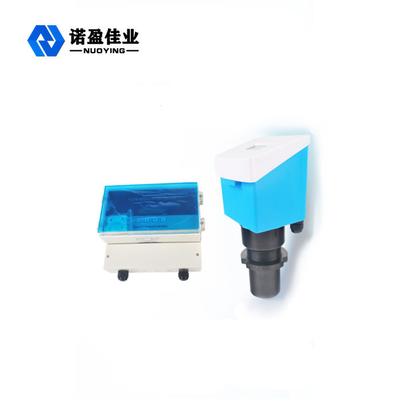

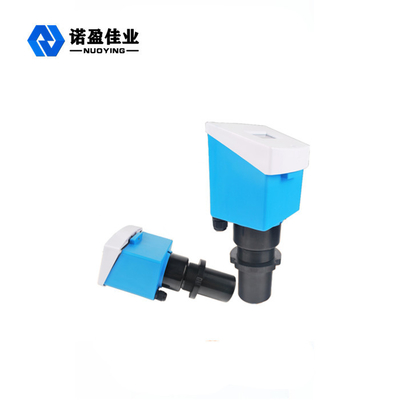

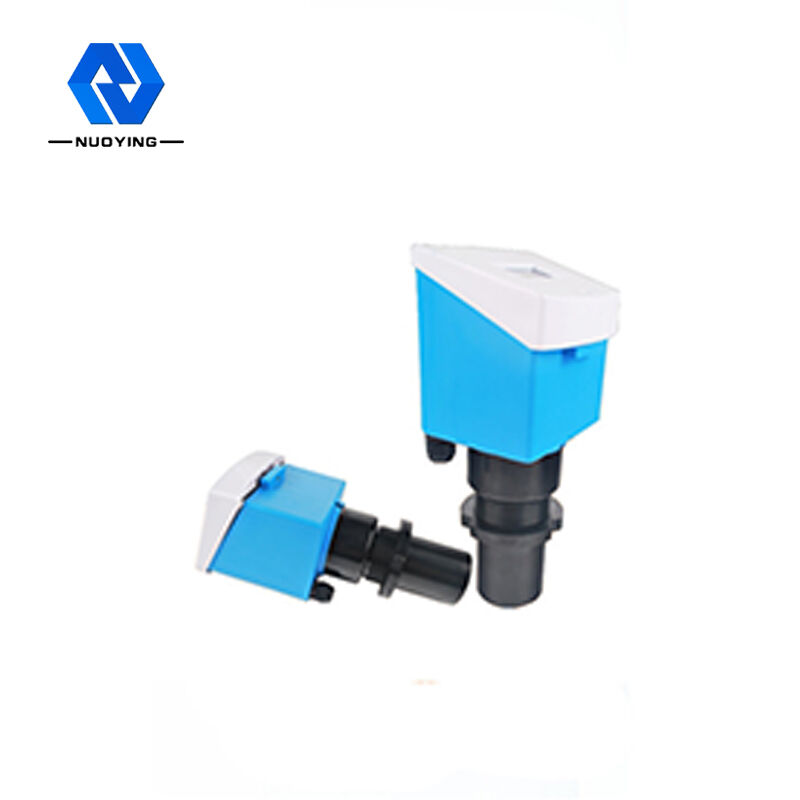

Ultrasonic Level Sensor For Water Level With Meter
Ultrasonic Level Sensor For Water Level With Meter Description:
Ultrasonic Level Transmitter is a non-contact highly reliable and cost-effective material level measuring instrument which is easily installedand maintained. Itcan meet most of the material level measurement requirements without touching the medium. It can be used to measure the height of a variety of liquid and solid materials.
Ultrasonic Level Sensor For Water Level With Meter Parameters:
| Measure range | 5m, 10m, 15m, 20m |
| Accuracy | 0.5%-1% |
| Resolution | 3mm or 0.1% (Take the max.) |
| Display language | English |
| Analog output | Four wires 4-20mA/510Ω load | Two wires 4-20mA/510Ω load |
| Relay out | AC250V/8A or DV30/5A |
| Power supply | 24V DC or 220V AC±15% 50Hz |
| Ambient temperature | Display instrument -20℃-60℃, probe -20℃-80℃ |
| Communication | RS485(standard) or RS232 |
| Ingress protection | Display instrument IP65, probe IP68 |
| Probe installation | Depend on range and probe type |
Ultrasonic Level Sensor For Water Level With Meter Features:
1. Adopting advanced microprocessor
2. Unique echo processing technology
3. Built-in temperature compensation
4. Narrow beam, simple debugging and calibration
5. Economical type with plastic housing
6. With a menu in both English and Chinese, and an echo curve display.
