Product Details:
|
| Material: | STAINLESS STEEL | Accuracy: | 0.5% |
|---|---|---|---|
| Temperature: | -30~80C (customized For 200C) | Type: | Micro Flow Meter |
| Min Flow: | 0.5~150 ML/min | Power Supply: | 4~26VDC Of Ink Flow Meter |
| High Light: | 0.2% Accuracy Resin Flow Meter,Resin Flow Meter 0.5 mL/Min,0.2% Accuracy Positive Displacement Flow Meter |
||

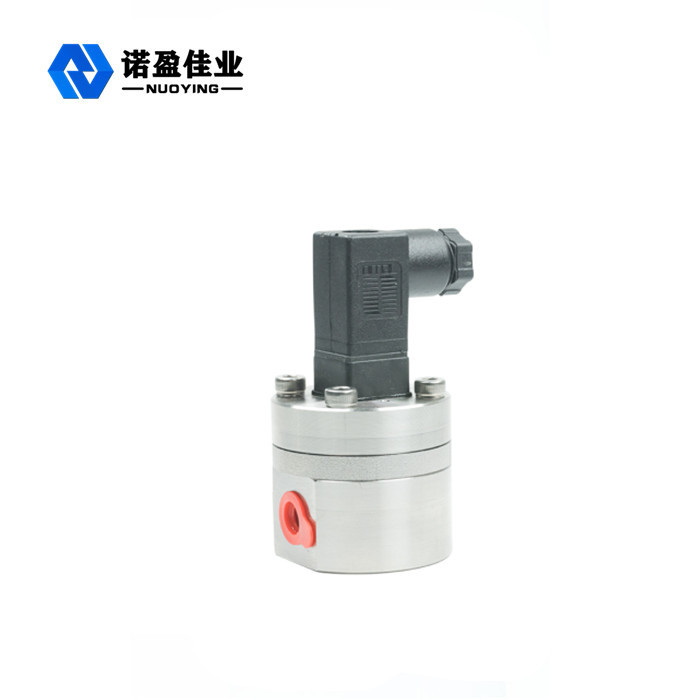

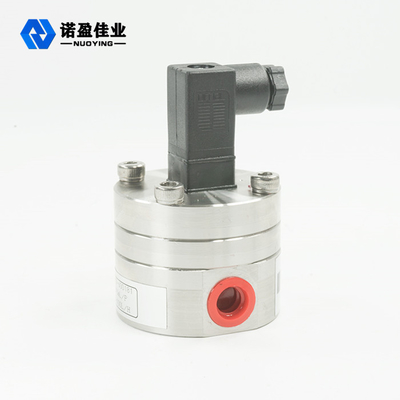

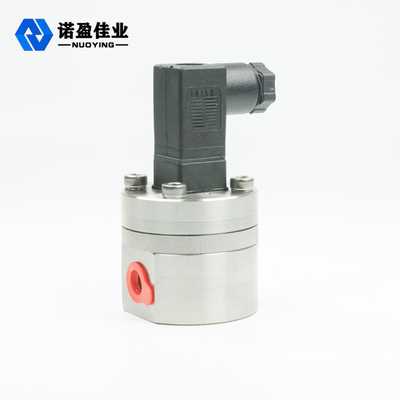

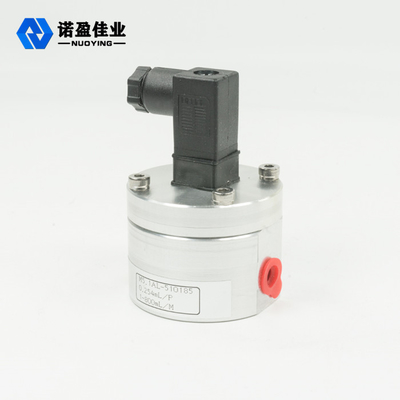

0.5mL/Min And 0.2% Accuracy Resin Flowmeter Offset Ink Micro Positive Displacement Flow Meter
0.5mL/Min And 0.2% Accuracy Resin Flowmeter Description:
The oval gear positive displacement flow meter is a kind of micro flow meter.It's min flow is 0.5ml/min.We focus on micro flow industry(liquid and gas).It used for oil hydraulic oil,water,glue.etc...The oval gear flow meter material is stainless steel 316L and Aluminium for different applications.Cooperate with DC8S display instrument to get a dosing system(also with digital display and alarm).
0.5mL/Min And 0.2% Accuracy Resin Flowmeter Parameters:
| Medium | Suitable for liquid,weak corrosive chemical liquid,eg:water;oil;glue... |
| Accuracy | Standard type is 0.5% |
| Pressure | 32Bar and customized high pressure |
| Temperature | -30~80℃,Max temperature is 120℃ |
| Output | Pulse output |
| Power | 4-26VDC power supply |
| Material | Body:SS316L |
| Gear:SS316L | |
| Bear:SS316L | |
| Medium | Suitable for water and corrosive medium |
| Material | Body:Aluminium |
| Gear:Aluminium | |
| Bear:SS316L | |
| Medium | Non-corrosive liquid,oil;glue |
0.5mL/Min And 0.2% Accuracy Resin Flowmeter Features:
1.Min flow is 0.5ml/min for oil; 1ml/min for water
2.The standard type accuracy is 0.5%
3.Stainless steel 316L;Aluminium;PPS material for corrosive medium
4.Cooperate with DC8S display instrument to composite a dosing system
5.Customized for high pressure(Normal is 32Bar) It's usually used for hydraulic system
6.With small size body and easy installation
7.The Max flow ratio is 1:800(1~800ml/min for test bench);normal type is 1:200
