Product Details:
|
| Diameter: | DN15~DN200 | Measuring Tube Material: | 316L, 304, 304 Lined With PTFE |
|---|---|---|---|
| Range Ratio: | Standard Type: 10:1; Special Type: 20:1 | Medium Temperature: | Standard:-40~+100℃ |
| Connection: | Flange,Clamp,Thread, Sanity Thread | Accuracy: | 1.5% |
| High Light: | Wet Type Metal Tube Rotameter,Gas Rotameter Flow Meter,Liquid Metal Tube Rotameter |
||

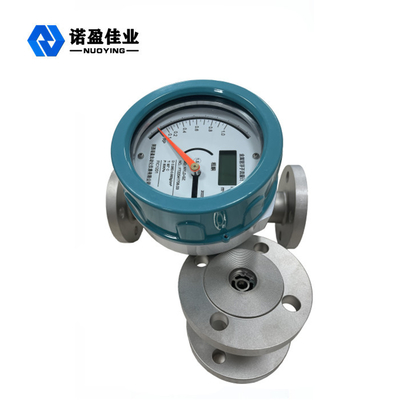

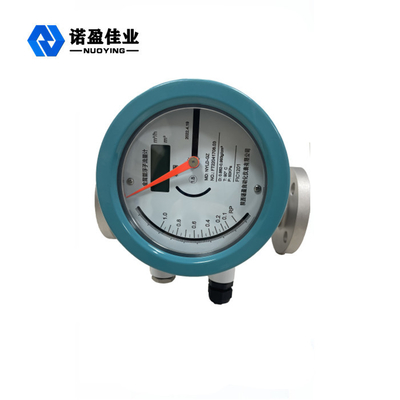

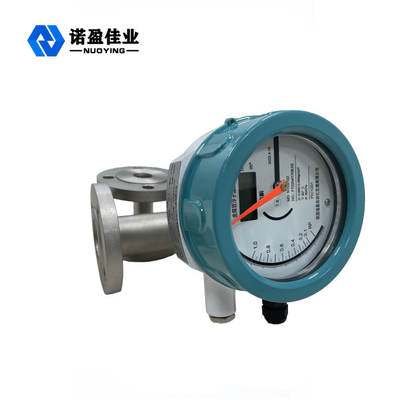

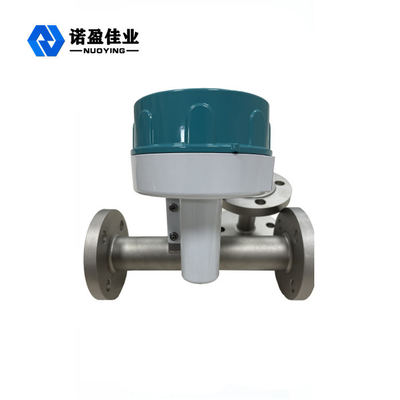

High Accuracy Variable Area Wet Type Liquid Gas Metal Tube Rotameter Flow Meter
High Accuracy Variable Area Wet Type Liquid Gas Metal Tube Rotameter Flow Meter Description:
Metal tube rotameter is a variable area flow meter based on float position measurement. Adopting all-metal structure and Modular conceptual design, it is widely used in flow measurement and process control under complex and harsh environment in various industries, with small volume, small pressure loss, large range ratio (10:1), etc. stream,especially suitable for mediums with low current velocity and low flow rate.Due to its excellent performance,reliability and competitive price, it is widely used in the fields of oil, chemical industry, steel manufacture, light industrial,water etc. Metal pipe flowmeter takes many different materials and is suitable for flowmeter measurement of all non-corrosive, corrosive and strong corrosive mediums.
High Accuracy Variable Area Wet Type Liquid Gas Metal Tube Rotameter Flow Meter Feature:
1.Single axle, smart display, high reliability, easy maintenance, long life time.
2.Less requirement on the tube.
3.Flow ratio:10:1, special type: 20:1.
4.Suitable for measurements of mediums with small pipe and low flow rate.
5.LCD display, displaying instantaneous flow and whole flow at same time.
6.Non-contacting magnetic coupling transmission.
7.Metal structure, suitable for strong corrosive mediums and environments with high temperature, high pressure and flammable and explosive conditions.
8.Two-wire available, battery and AC supply to choose.
9.Multiple parameters calibration function, data restoration and back-up, power-fail protection function.
High Accuracy Variable Area Wet Type Liquid Gas Metal Tube Rotameter Flow Meter Parameters:
| Measuring range | Water:1~200000L/H(20°C) |
| Air: 0.03~6000m3/h (20°C, 0.1013MPa) | |
| Measuring range proportion | Standard: 10:1; Special: 20:1 |
| Accuracy class | Standard:1.5; Special: 1.0 |
| Pressure class | Standard:DN15~DN50≤4.0MPa; DN80~DN200≤1.6MPa |
| High pressure:DN15~DN50≤32MPa;DN80~DN200≤16MPa | |
| Pressure loss | 7kPa~70kPa |
| Medium temperature | Standard:-40°C~+100°C; PTFE:-50°C~+100°C |
| High pressure:110°C~+450°C | |
| Medium viscosity | DN15:η<5mPa.s(F15.1~F15.3), η<30mPa.s(F15.4~F15.8) |
| DN25:η<250mPa.s; DN50~DN200:η<300mPa.s | |
| Environment temperature | Remote type: -40°C~+85°C |
| On-the spot needle indicator: -40°C~+100°C | |
| Connection type | Standard: DIN2501 standard flange; special: customize |
| Wiring connection |
M20×1.5 female thread (1/2NPT female thread for Exd explosion-proof) |
|
Power supply
|
Standard: 24VDC two-line 4~20mA(12VDC~32VDC) |
| Warning type:24VDC four-line 4~20mA(18VDC~18VDC) | |
| AC type:85~265VAC 50HZ | |
| Battery type:3.6V 7.5AH lithium battery(3 years lifetime) | |
| Loading resistance feature | Two-line: max loading resistance=50×(voltage-12)Ω=600Ω 24V |
| Multi-line: max loading resistance 500Ω | |
| Warning signal output | Reed pipe warning switch output, upper limit and lower limit flow warning(contact capacity 1A 30VDC) |
| Electric relay output(contact capacity 1A 30VDC, 0.25A 250VAC,0.5A 125VAC) | |
| Pulse output |
Min space 50ms (max loading 100mA 30VDC, internal resistance 100Ω) |
| LCD display | Instantaneous flow display scope:0~50000 |
| Total flow display scope: 0~99999999 | |
| Protection grade | IP65 |
| Explosion-proof grade | Exia II CT5Ga Exd II BT6Gb |
