Product Details:
|
| Transmit Frequency: | 1.8GHz | Products Model: | NYRD701 |
|---|---|---|---|
| Antenna Type: | Cable Type | Antenna Material: | PTFE,304,316 |
| Echo Sampling: | 55 Times/s | Measuring Range: | 30m |
| Measuring Accuracy: | ±1mm | Power Supply: | 24VDC |
The only radar that touches the medium Level meter transmitter

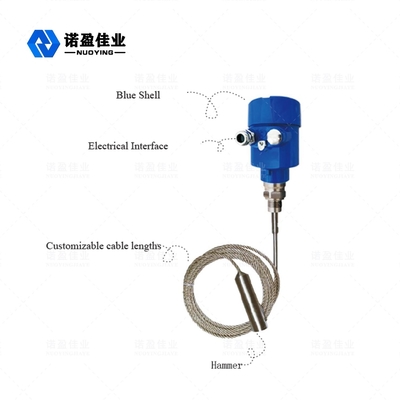

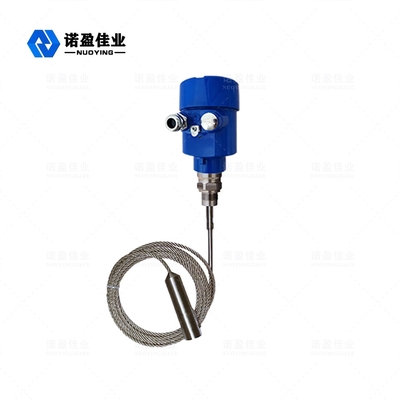

NYRD701 Cable type 1.8GHz Radar Level meter transmitter
The high-frequency microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable or steel rod), and when it encounters the measured medium, due to the sudden change of the dielectric constant, it causes reflection, and part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
Radar Lever Meter Technical Parameter
| Typical application |
1.quid (strong corrosion, low dielectric constant, adhesion, high temperature and high pressure, built-in heating coil, ladder, floating plate and other complex occasions) 2.st (fly ash, limestone powder, cement powder, concrete and other media) 3. Solid (small particles, grains, pebbles, sand and other media) |
| Transmit frequency | 1.8GHz |
| Products model | NYRD701 |

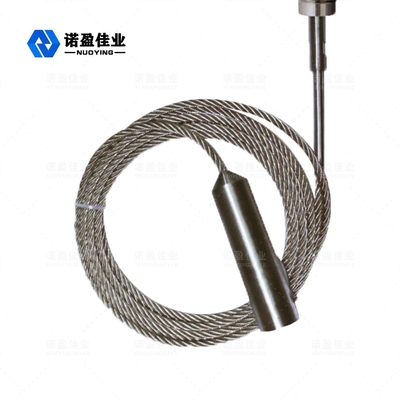

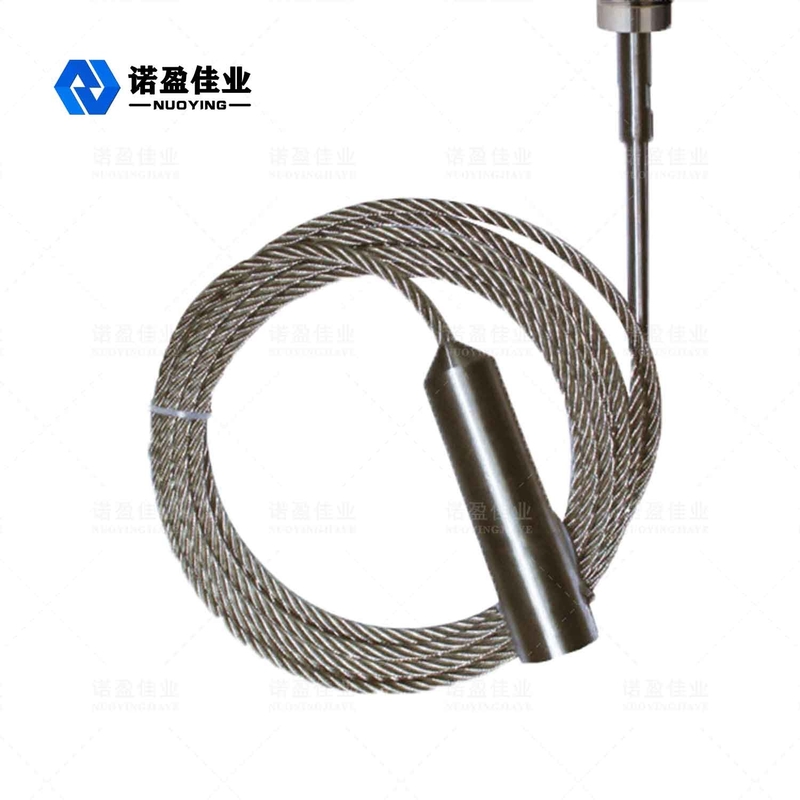

| Antenna type | Cable type |
| Antenna material | PTFE,304,316 |
| Echo sampling | 55 times/s |
| Measuring range | 30m |
| Measuring accuracy | ±1mm |
| Power supply | 24VDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~130℃ |
| Process pressure | -0.1~4.0MPa |
| Procedure connection | Thread/flange/holder (optional) |
| Protection level | IP67 |
| Explosion proof grade | Exia II CT6 Ga |
Note: Products can be customized according to the specific requirement of users!
