Product Details:
|
| Typical Application: | Gas Flow Measurement | Straight Pipe: | Front 5DN, Rear 3DN |
|---|---|---|---|
| Medium Temperature: | -20℃~/+80℃ | Ambient Temperature: | -30℃~/+65℃ |
| Relative Humidity: | 5%~95% | Atmospheric Pressure: | 86KPa~106KPa |
| Connection Method: | Flange | Pressure Rating: | ≤4.0MPa |
| High Light: | Turbine Vortex Flow Meter,Gas Vortex Flow Meter,Pressure Temperature Detection Turbine Flow Meter |
||

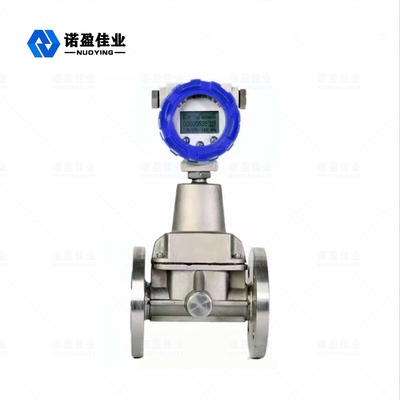

Pressure Temperature Detection Gas Turbine Vortex Flow Meter
Turbine Vortex Flow Meter Discription
The intelligent Turbine vortex flow meter integrates the detection functions of flow, temperature and pressure, and can automatically compensate for temperature, pressure and compression factor. It is an ideal instrument for gas measurement in petroleum, chemical, electric power, metallurgy and other industries.
Turbine Vortex Flow Meter Design Feature
◎Using EEPROM technology, parameter setting is convenient, can be permanently saved, and can save up to one year of historical data;
◎The converter can output frequency pulse, 4~20mA analog signal, and has RS485 interface.
◎Multi-physical parameter alarm output, one of which can be selected by the user;
◎The flow meter head can be rotated 270 degrees, which is easy to install and use;
◎The whole machine has low power consumption and can be powered by internal battery or external power supply.
Turbine Vortex Flow Meter Technical Parameter
| Typical application | Gas flow measurement |
| Measuring range | Custom design |
| Nominal diameter | 15-200mm |
| Velocity range | 0.1~10m/s |
| Straight pipe | Front 5DN, Rear 3DN |
| Medium temperature | -20℃~/+80℃ |
| Ambient temperature | -30℃~/+65℃ |
| Relative humidity | 5%~95% |
| Atmospheric pressure | 86KPa~106KPa |
| Power supply | AC220V /DC24V/3.6V |
| Power consumption | 3W |
| Signal output | 4…20 m A; RS485;HART协议；MODBUS协议 |
| Connection method | Flange |
| Pressure rating | ≤4.0MPa |
| Accuracy | 1.0%F.S-1.5%F.S |
| Shell material | Stainless steel, aluminum alloy (optional) |
| Working principle | 220VAC, 15% tolerance or 24VDC, ripple ≤5% |
| Protection grade | IP65 |
| Explosion-proof grade | Exia II CT4 Ga, Exd II CT5 Gb (see certificate for details) |
※Note: Products can be customized according to the specific requirements of users!
