Product Details:
|
| Product Name: | Hot Flow Switch | Range Of Flow Rate: | Water: 0-3 M/s Air: 0-30 M/s |
|---|---|---|---|
| Warm-up Time: | ≤ 3 Min | Ambient Pressure: | 86-106 KPa |
| Ambient Humidity: | 5%～90% | Ambient Temperature: | -20℃~60℃ |
| Response Time: | ≤ 5S | Power Supply: | 24VDC |
| High Light: | Explosion Proof Hot Flow Switch,Water Hot Flow Switch 24VDC,Liquid Thermal Flow Switch 24VDC |
||

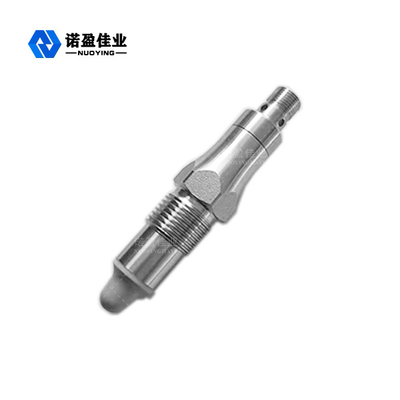

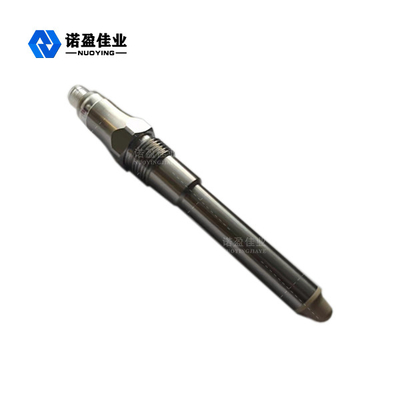

Hot Flow Switch Safety Explosion Proof High Precision
Measuring Principle Of Hot Flow Switch
Thermal flow switches are designed based on the principle that the temperature change of the probe produces a difference. A heating element and two thermal sensors are built into the probe, which are in contact with the medium. When the thermal flow switch is working, the heating element emits constant heat. When there is no medium flowing in the pipeline, the heat received by the thermal sensor is a constant value. When there is a medium flowing, the heat received by the thermal sensor will follow. The flow rate of the medium changes, and the thermal sensor converts the temperature difference signal into an electrical signal. When the flow rate reaches a certain set point, the thermal flow switch outputs a switch signal.
Technical parameters Of Hot Flow Switch
| Power Supply | Working voltage |
15 to 36 VDC Standard: 24VDC/0.5A Allowable residual ripple: Upp = 30Mv, Uss < 10 mV at 0 ~ 100Hz Maximum noise: U at 500Hz ~ 10KHz Eff = 2.0 mV |
| Operating current | < 150 mA | |
| Output | Relay | 220VAC 16A |
| Performance | Range of flow rate | Water: 0-3 m/s Air: 0-30 m/s |
| Ambient temperature | - 20 ~ 60℃ | |
| Relative humidity | 45% to 75% | |
| Ambient Pressure | 86-106 kPa | |
| Medium temperature | 0 ~ 60℃ | |
| Precision | ± 5% | |
| Warm-up time | ≤ 3 min | |
| Response Time | ≤ 5S |
Applications Of Hot Flow Switch
Gas-liquid dual-purpose type, can be widely used in industrial automation/mechanical equipment/air compression industry/refrigeration and air-conditioning fields, and industrial applications are specifically used in water-cooled welding machines, laser equipment cooling systems, vacuum coating machines, electric furnaces, polysilicon ingot furnaces, etc. . The water flow switch magnet is not in a flowing waterway and can be used in sewage systems and works properly.
