Product Details:
|
| Product Model: | NYRD-SD | Measurement Accuracy: | 0.05%~0.1% F.S |
|---|---|---|---|
| Antenna Material: | PTFE, 304/316, PP, PFA | Measuring Range: | 10m, 20m, 30m, 35m, |
| Power Supply: | 24VDC(two Wire, Four Wire), 220VAC | Signal Output: | 4... 20mA/HART/RS485/Modbus |
| Process Temperature: | - 40 ~ + 130 ℃, -40 ~ + 150 ℃, -40 ~ + 260 ℃, | Process Pressure: | - 0.1 ~ 0. 3MPa, - 0. 1 ~ 2. 0MPa, - 0. 1 ~ 4. 0MPa |
| High Light: | Dust Solid Radar Level Sensor,26GHz Radar Level Measurement,PTFE Radar Liquid Level Sensor |
||

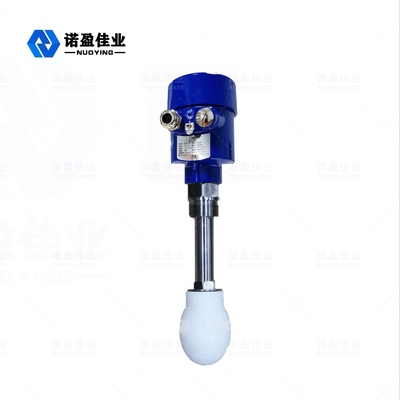

Liquid Dust Solid High Temperature 26GHz Radar Level Meter
26GHz Radar Level Meter Design Feature
◎Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
◎The measurement blind area is smaller, and good results can be achieved for small tank measurement.
◎High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
◎High frequency, is the best choice for measuring solid and low dielectric constant media.
26GHz Radar Level Meter Technical Parameter
| Typical application | All kinds of liquid (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc) |
| All kinds of dust (strong dust, dust, cement powder, lime powder, fly ash, crystallization, etc) | |
| All kinds of solid (grain, small stones, iron ore, coal, etc.) | |
| Product model | NYRD805,NYRD806,NYRD807,NYRD808,NYRD809,NYRD810,NYRD86 |
| NYRD87, NYRD-PB, NYRD-SD, NYRD-TJ, NYRD-SL | |
| Antenna form | Bar type, water type, plate type, horn type, buffing surface, perspective lens |
| Antenna material | PTFE, 304/316, PP, PFA |
| Measuring range | 10m, 20m, 30m, 35m, 40m, 80m |
| Measurement accuracy | 0.05%~0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature |
- 40 ~ + 130 ℃, -40 ~ + 150 ℃, -40 ~ + 260 ℃, - 40 ~ + 1200 ℃ |
| Process pressure | - 0.1 ~ 0. 3MPa, - 0. 1 ~ 2. 0MPa, - 0. 1 ~ 4. 0MPa |
| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Electrical interface | M20×1.5, ½ "NPT |
| Protection grade | IP65, IP67, IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6 Ga, ExdIICT6Gb(see certificate for details) |
※Note: The product can be customized according to the specific requirements of users!
