NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

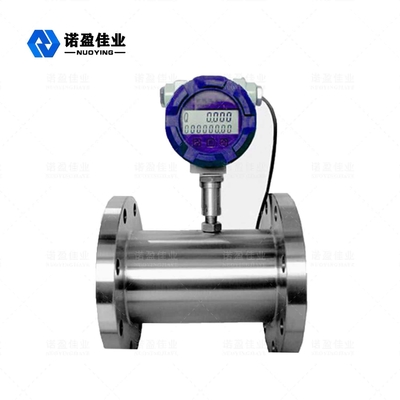

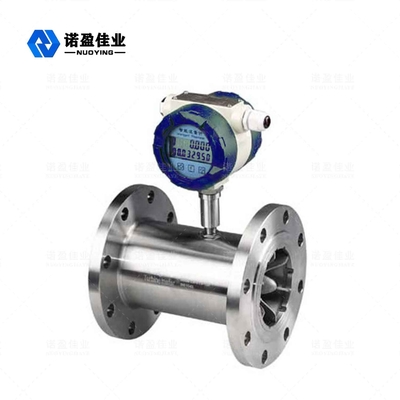

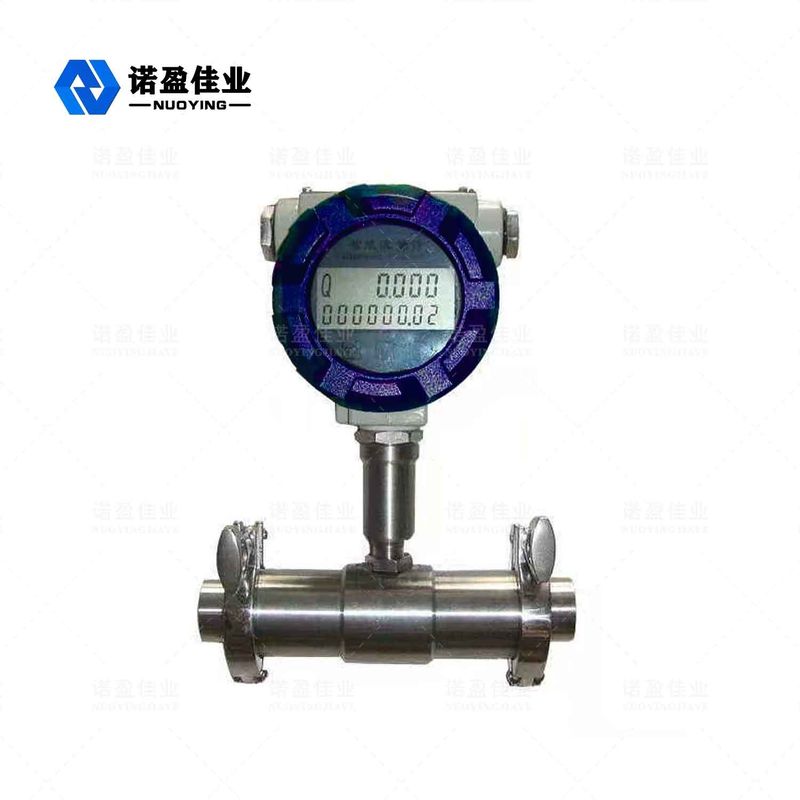

NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa

NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa
NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa

Large Image :  NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa

Product Details:
Place of Origin: Xi'an,Shannxi,China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYLU-JB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $950~$1250/pcs
Packaging Details: Carton, 60cm×50cm×50cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 500 pcs/per month

NYLU - JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa

Description
Power Supply: 12~24VDC Nominal Pressure: 1.6MPa
Accuracy Class: 1.0 Medium Temperature: -40~350°C
Pressure Loss: Drag Coefficient Cd≤2.4 Output Signal: Standard Current Signal 4~20mA
Explosion-proof Grade: ExiaIICT6Ga Model: NYLU-JB
High Light:

Water Turbine Flow Meter 1.6MPa

,

Turbine Gas Explosion Proof Flow Meter

,

Water Vortex Flow Meter

NYLU-JB Turbine Flow Meter Gas Water Measuring Widely Range 1.6MPa





NYLU-JB Turbine Flow Meter Gas Water Measuring



The NYLU-JB vortex flow meter is researched and produced according to the principle of Karman vortex flow, and is mainly used for flow measurement of medium fluids in industrial pipelines, such as gas, liquid, steam and other media. Easy to install, simple structure, no moving parts.The vortex flow meter adopts piezoelectric stress sensor, which has high reliability and can work in the working temperature range of -20℃~+250℃. The amplifying board adopts a unique design, which can be used for both gas and liquid.There are analog standard signals and digital pulse signal output, which is easy to be used with digital systems such as computers. It is a relatively advanced and ideal measuring instrument.Explosion-proof instruments can be used in corresponding explosion-proof places.There are analog standard signals and digital pulse signal outputs, which are easy to use with digital systems such as computers.



NYLU-JB Turbine Flow Meter Gas Water Measuring Technical Parameter



Power supply 12~24VDC
Nominal pressure 1.6MPa
Accuracy class 1.0
Medium temperature -40~350°C
Pressure loss Drag coefficient cd≤2.4
Output signal Standard current signal 4~20mA
Explosion-proof grade ExiaIICT6Ga
