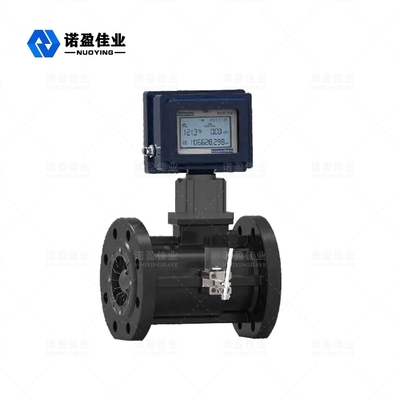

NYLD - GZ Three Wire Explosion Proof Flow Meter 4 - 20mA RS485 24VDC

NYLD - GZ Three Wire Explosion Proof Flow Meter 4 - 20mA RS485 24VDC

Brand Name: NUOYINGJIAYE
Model Number: NYLD-GZ
MOQ: 1pcs
Price: $550~$1050/pcs
Payment Terms: T/T
Supply Ability: 500 pcs/per month
Detail Information
Place of Origin:
Xi'an,Shannxi,China
Certification:
CE,ATEX,SIL
Model:
NYLD-GZ
Transmission Distance:
≤1000m
Accuracy:
±1.5%R
Ambient Humidity:
5%~90%
Range Ratio:
1:10,1:20
Measured Medium Temperature:
-30℃~80℃
Power Supply:
24VDC
Output Signal:
4-20mA Current Output
Packaging Details:
Export standard packing
Supply Ability:
500 pcs/per month
Highlight:

Turbine Explosion Proof Flow Meter

,

Explosion Proof Flow Meter 24VDC

,

RS485 Turbine Flow Meter

Product Description

4-20mA RS485 24VDC NYLD-GZ Three Wire Explosion Proof Flow Meter





NYLD-GZ Three Wire Explosion Proof Flow Meter



The NYLD-GZ type gas turbine flowmeter integrates gas turbine flow sensor and electronic volume corrector.The volume corrector consists of temperature, pressure detection analog channel, flow detection digital channel, micro processing unit, liquid crystal drive circuit and other auxiliary circuits, and it is equipped with an external signal interface. It can detect and display the working condition flow and total volume. The technical performance is at the domestic advanced level,complies with GB/T18940/IS09951 standard, which is widely used in gas metering and testing in industries such as steam and compressed air.After converting and processing the multi-channel signals sent from each sensor, the signals is brought into the formula for operation according to the gas equation to realize the local display and remote transmission of various signals.



NYLD-GZ Three Wire Explosion Proof Flow Meter Modeling



NYLD-GZ Intelligent gas turbine flow meter (standard condition volume type, with temperature, pressure compensation)
Intelligent gas turbine transmitter (working condition volume type)





Caliber

25

40

50

65

80

100

125

150

200

250

300

DN 25mm(non-standard, long order period)

DN 40mm(non-standard, long order period)

DN 50mm

DN 65mm(non-standard, long order period)

DN 80mm

DN 100mm

DN 125mm(non-standard, long order period)

DN 150mm

DN 200mm

DN 250mm(non-standard, long order period)

DN 300mm



Range

A

B

C

Standard range

Expansion range

Expansion range

Accuracy grade

01

02

1.5 grade

1.0 grade



Output model

A

B

C

Pulse output, IC card pulse output, alarm output

4-20mA current, pulse output, IC card output, alarm output 4-20mA current, pulse output, IC card output, alarm output, RS485 communication

Explosion-proof grade

N

E

Standard type, non explosion-proof

Explosion-proof type, ExdⅡCT6
