Product Details:
|
| Model: | NYLD-GYQ | Flow Range: | 0~6500 M3/h |
|---|---|---|---|
| Nominal Diameter: | DN25-DN300 | NYLD-GYQ-25: | 80 |
| Filter Material: | Stainless Steel Wire | NYLD-GYQ-32: | 100 |
| Nominal Pressure: | 1.6~40MPa | NYLD-GYQ-50: | 150 |
| High Light: | Natural Gas Strainer 40MPa,Carbon Steel Gas Strainer,Natural Gas Carbon Steel Strainer |
||

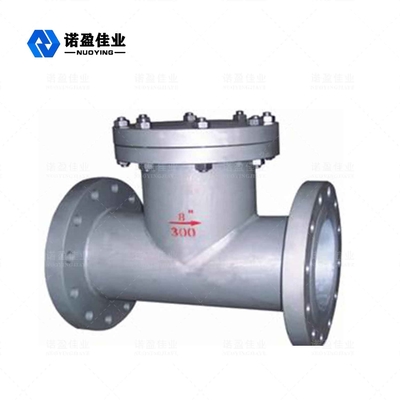

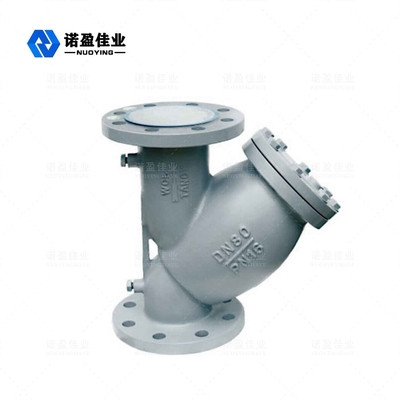

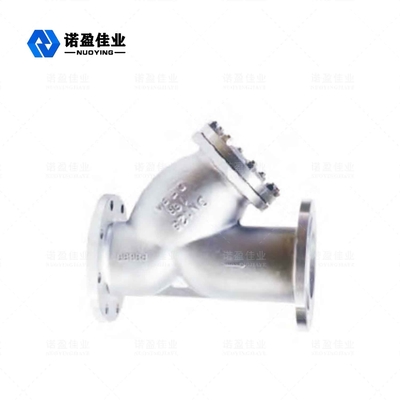

NYLD-GYQ Natural Gas Filter Q235B Carbon Steel Strainer 40MPa
NYLD-GYQ Natural Gas Filter
The NYLD-GYQ gas filter is an important equipment of the gas transmission and distribution system. Easy installation and operation, easy to use and maintain;In the gas transmission process, in order to ensure the normal operation and protection of the gas transmission and distribution equipment and meters such as pressure regulators, valves, flowmeters, pressure meters, etc.,Optional filtering accuracy, and it can be equipped with a differential pressure meter that displays the dirtyness of the filter; it must remove the solid impurities in the gas.Large filter area and small fluid flow resistance; It is necessary to install a filter with the required filtering accuracy in front of it, so our company has developed and produced the GYQ series filter specifically for the above requirements, which is applicable for natural gas, liquefied petroleum gas, city gas and other gases.Stainless steel filter core is durable, easy to clean and reusable;Small fluid flow resistance.
NYLD-GYQ Natural Gas Filter Technical Parameters
| Model specification | Maximum flow(m3/h |
Pressure loss( kPa)
|
Nominal pressure | Filtering accuracy | Housing material | Filter material | Working temperature |
|
NYLD-GYQ-25 NYLD-GYQ-32 NYLD-GYQ-50 NYLD-GYQ-80 |
80 100 150 400 |
0.2 0.2 0.2 0.2 |
1.6~40MPa |
20um 50um 130um |
Carbon steel Q235B |
Stainless steel wire |
-30℃+60℃ |
|
NYLD-GYQ-100 NYLD-GYQ-150 NYLD-GYQ-200 NYLD-GYQ-250 NYLD-GYQ-300 |
650 1600 2500 4000 6500 |
0.3 0.3 0.3 0.35 0.35 |
1.6MPa |
