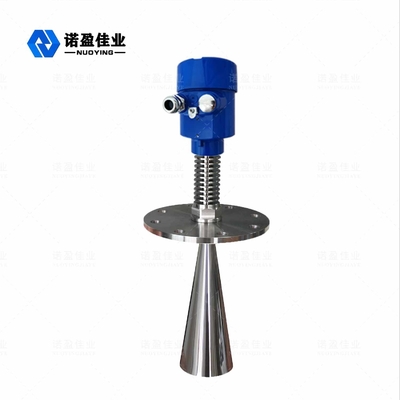

High Temperature Type Intelligent Radar Level Transmitter NYRD803S 6.8GHz

High Temperature Type Intelligent Radar Level Transmitter NYRD803S 6.8GHz
High Temperature Type Intelligent Radar Level Transmitter NYRD803S 6.8GHz

Large Image :  High Temperature Type Intelligent Radar Level Transmitter NYRD803S 6.8GHz

Product Details:
Place of Origin: Xi'an,Shannxi,China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYRD803S(High Temperature Type)
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $550~$850/pcs
Packaging Details: Carton, 90cm x 30cm x 30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

High Temperature Type Intelligent Radar Level Transmitter NYRD803S 6.8GHz

Description
Model: NYRD803S(High Temperature Type) Measuring Range: 35m
Material: 316 Fitting Process: Flange(optional)
Process Temperature: -40℃-+250℃ Process Pressure: -0.1~4.0MPa
Repeatability: ± 3mm Signal Output: 4-20mA/HART(Two Wire/FOUR Wire)
High Light:

Radar Level Transmitter 6.8GHz

,

High Temperature Guided Radar Level Transmitter

,

Intelligent Guided Wave Radar Level Transmitter

High Temperature Type NYRD803S 6.8GHz Intelligent Radar Level Transmitter





NYRD803S 6.8GHz Intelligent Radar Level Transmitter



Radar level meter antenna to join structure of radiator, radiator is a kind of to electrical appliances used hot electron component cooling device, made more than 304/316 of material such as stainless steel sheet structure.Very short microwave pulses with very low energy are transmitted and received through an antenna system. Radar level meter is suitable for liquid, slurry and granular material level of non-contact continuous measurement, suitable for temperature, pressure change; Where inert gases and volatiles are present.Radar waves travel at the speed of light. The operating time can be converted into a level signal by means of electronic components.The heat sink can make the heat from the components more effective conduction, so that the product can be applied to higher temperature occasions.A special time extension method ensures stable and precise measurements in a very short period of time.The measurement method of microwave pulse is adopted, and it can work normally in the range of industrial frequency band. Low beam energy, can be installed in a variety of metal, non-metal containers or pipes, no harm to human body and the environment.



NYRD803S 6.8GHz Intelligent Radar Level Transmitter Technical Parameter



Application

Process conditions simple, Liquid (Liquid water storage tank;Soda acid storage tank), slurry, solid(Solid particles; Small tanks).

Measuring range 20m;35m
Material 316
Fitting process Flange(optional)
Process temperature -40℃-+250℃
Process pressure -0.1~4.0MPa
Repeatability ± 3mm
Accuracy < 0.1%
Frequency rate limits 6.8GHz
Explosion-proof EXia II CT6 Ga
Protection grade IP67
Signal output 4-20mA/HART(Two wire/FOUR wire)
Power supply 24VDC(Two wire/FOUR wire)



Note: Products can be customized according to the specific requirements of users!
