Product Details:
|
| Model: | NYRD801 | Measuring Range: | 20m,35m |
|---|---|---|---|
| Process Temperature: | -40℃~+130℃ | Process Pressure: | -0.1~2.0MPa |
| Fitting Process: | Thread, Flange(optional) | Power Supply: | 24VDC(Two Wire/Four Wire) |
| Signal Output: | 4-20mA, 4-20mA/HART/RS485 (optional) | Material: | PTFE (optional) |
| High Light: | 6.8GHz Radar Tank Level Sensor,Slurry Radar Tank Level Sensor,Granular Radar Type Level Transmitter |
||
For Liquid Slurry Granular Material NYRD801 6.8GHz PTFE Radar Tank Level Sensor

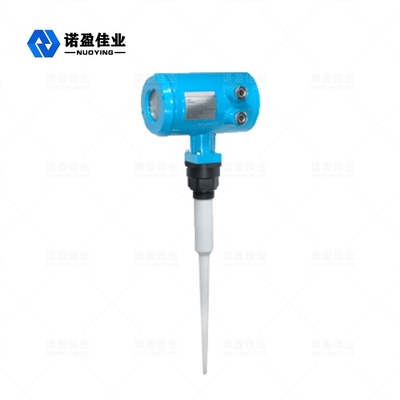

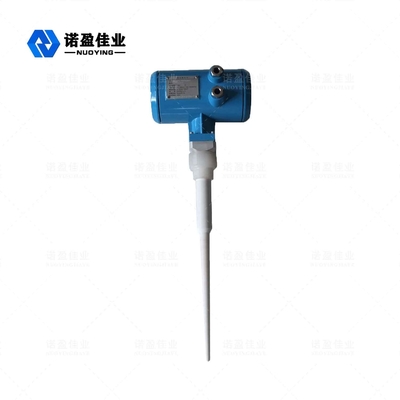

NYRD801 6.8GHz PTFE Radar Tank Level Sensor
Radar level meter is suitable for liquid, slurry and granular material level of non-contact continuous measurement, suitable for temperature, pressure change; Where inert gases and volatiles are present.NYRD801 of level meter is suitable for continuous non-contact measurements of liquids, Slurry and pellets, pressure variation; the presence of inert gases and volatile situations.For the lower energy beam, can be installed on a variety of metals, non-metallic container or pipe, no harm to humans and the environment.The measurement method of microwave pulse is adopted, and it can work normally in the range of industrial frequency band. Low beam energy, can be installed in a variety of metal, non-metal containers or pipes, no harm to human body and the environment.Use microwave pulse measurement method, it can be worked normally within the band of frequent industry .
NYRD801 6.8GHz PTFE Radar Tank Level Sensor Technical Parameter
| Application |
Process conditions simple, Corrosive liquid, slurry, solid |
| Measuring range | 20m,35m |
| Material | PTFE (optional) |
| Fitting process | Thread, Flange(optional) |
| Process temperature | -40℃~+130℃ |
| Process pressure | -0.1~2.0MPa |
| Repeatability | ± 3mm |
| Accuracy | < 0.1% |
| Frequency rate limits | 6.8GHz |
| Explosion-proof | EXia II CT6 Ga |
| Protection grade | IP67 (optional) |
| Signal output | 4-20mA, 4-20mA/HART/RS485 (optional) |
| Power supply | 24VDC(Two wire/Four wire) |
※ Note: Products can be customized according to the specific requirements of users!
