Product Details:
|
| Model: | NYCSUL-503 | Accuracy: | 0.25%-0.5%F.S |
|---|---|---|---|
| Blind Zone: | 0.2m-0.6m | Resolution: | 3 Mm Or 0.1%F.S (Max Of Them) |
| Relay /Alarm Output: | AC 250V/ 8A; DC 30V/ 5A; | Power Supply: | 24VDC 120mA 12VDC |
| Environment Temperature: | Meter: -20~+60℃ Sensor: -20~+80℃ | Communication: | RS485 Communications |
| High Light: | RS485 Ultrasonic Level Sensors,Explosion Proof Ultrasonic Level Gauge,Ultrasonic Level Transmitter 0.2m |
||
High Precision NYCSUL-503 Ultrasonic Level Transmitter Reliability Safety

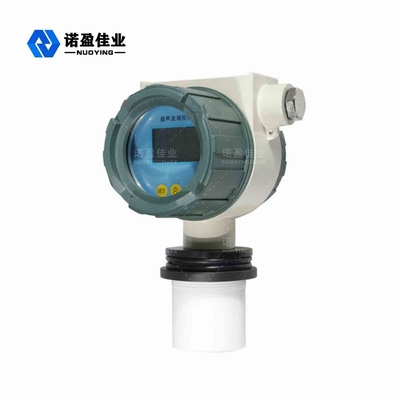

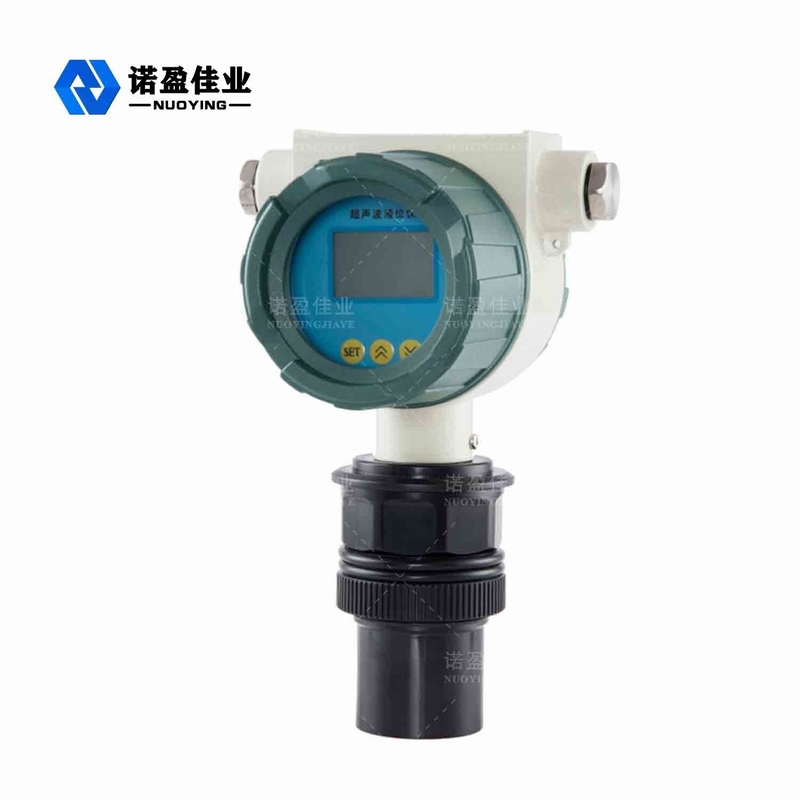

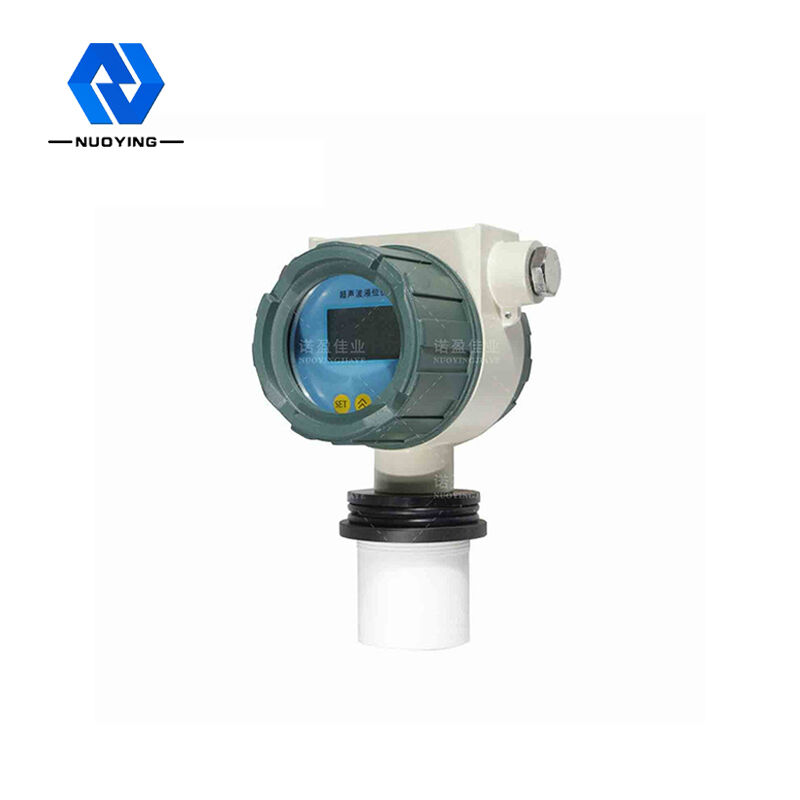

NYCSUL-503 Ultrasonic Level Transmitter
NYCSUL ultrasonic level sensors have beautiful appearance, stability performance; explore proof design and good measurement function. Our Company has patented sonic technology to explosion-proof intelligent ultrasonic level sensor accuracy from 0.25% to 0.5%F.S optional, which is anti-kinds of interference waves.Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, overvoltage, over current protection circuit functions. Ultrasonic Level Meter can replace imported instruments. We start from the power circuit design, the isolation module on the use of high-quality, critical components of high stability and reliability of procurement selection device.Transmitter function of small, weak energy, high sensitivity, bearing small; a complete sensor system can accurately complete the objects in different environments continuous non-contact measurement; small blind, high accuracy, wide application, send and receive integrated, which can accurately receive weak echo signals to ensure the accuracy and reliability. All input and output lines are a mine, over current, over voltage protection function.NYCSUL explore proof Ultrasonic Level Sensor is a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance ease of use easy to read and so on.
NYCSUL-503 Ultrasonic Level Transmitter Technical Parameter
| Functions | Integrative Type | Segregated Type |
| Level Range |
5M, 10M, 15M, 20M, 30M, 50M. |
5M, 10M, 15M, 20M,30M, 50M, 70M. |
| Accuracy | 0.25%-0.5%F.S | 0.25%-0.5%F.S |
| Blind Zone | 0.2m-0.6m | 0.2m-0.6m |
| Working Pressure | 2 Bar (Explore Proof Type is 5 Bar) | 2 Bar (Explore Proof Type is 5 Bar) |
| Resolution | 3 mm or 0.1%F.S (Max of them) | 3 mm or 0.1%F.S (Max of them) |
| Display | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
| Analog Output: |
4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires) |
4~20mA/750Ω load resistance 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires) |
| Relay /Alarm Output |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire) |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional) |
| Power Supply |
24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
| Environment Temperature |
Meter: -20~+60℃ Sensor: -20~+80℃ |
Meter: -20~+60℃ Sensor: -20~+80℃ |
| Communication | RS485 Communications (optional) | RS485 Communications (optional) |
| Explore Proof | Ex(ia)ⅡCT6 | Ex(ia)ⅡCT6 |
| Water Proof |
Economic Type: IP65 Standard Type: IP66 |
Meter: IP65 Sensor: IP68 |
| Cable of Sensor | Null | Standard: 10 Meters, Max to 200 Meters |
| Sensor Installation | By level range and model code | By level range and model code |
| Store Request |
Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
※ note: the product can be customized according to the specific requirements of users!
