Product Details:
|
| Nominal Diameter: | DN50～DN1000 | Nominal Pressure: | ≤450MPa |
|---|---|---|---|
| Environment Temperature: | -20℃～+55℃ | Medium Temperature: | -20℃～+300℃ |
| Accuracy: | ±1.0%～±1.5% | Connection Method: | Flange Clamping, Threaded Connection, Flange Connection, Insert Type, Etc. |
| Straight Pipe Section Requirements: | Upstream Straight Pipe Section Should Be ≥ 10DN, Downstream Straight Pipe Section Should Be ≥ Gas 5DN | ||
| High Light: | Flange Clamping Turbine Flow Meter,450MPa Turbine Flow Meter,Throttle Turbine Gas Meter |
||

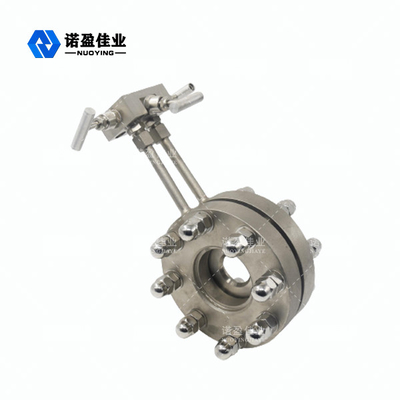

Wide Range Of Applications Stable Performance All-In-One Flew Meter
Throttle device has many advantages, but generally feel the pressure line in the field laying workload, but also prone to leakage, blockage and other problems. In recent years, differential pressure transmitters have made rapid development, not only compact size, and stable performance, easy to adjust, basically no need to adjust the zero point in the process of use. These advantages have contributed to the development and application of one-piece throttle flowmeter (including orifice plate, annular orifice plate, nozzle, etc.).
All-In-One Flew Meter Working Principle
Installed in the pipeline internal orifice or nozzle and other throttling parts, due to the throttling parts of the aperture smaller than the inner diameter of the pipe, when the fluid flow through the throttling parts, the flow beam cross-section suddenly contracted, the flow rate accelerated. The static pressure of the fluid at the back end of the throttle is reduced, so the static pressure difference is generated before and after the throttle, which has a definite numerical relationship with the fluid flow rate, in line with Q = K.√△P. The differential pressure transmitter (or differential pressure meter) is used to measure the differential pressure before and after the throttle to achieve the measurement of the flow rate.
All-In-One Flew Meter Design Feature
1. The orifice plate calculation adopts international standard and processing.
2. Standard type throttling device can be put into use without real flow calibration.
3. One-piece orifice plate is easier to install, no need to draw pressure pipe, can be directly connected to differential pressure transmitter and pressure transmitter.
4. Wide range of applications, all single-phase flow can be measured, part of the mixed-phase flow can also be applied.
5. The structure of the throttling device is easy to copy, simple, solid, stable and reliable performance, long service life and low price.
All-In-One Flew Meter Technical Parameters
| Nominal diameter | DN50～DN1000 |
| Nominal pressure | ≤450MPa |
| Environment temperature | -20℃～+55℃ |
| Medium temperature | -20℃～+300℃ |
| Accuracy | ±1.0%～±1.5% |
| Connection method |
Flange clamping, threaded connection, flange connection, insert type, etc.
|
| Straight pipe section requirements |
Upstream straight pipe section should be ≥ 10DN, downstream straight pipe section should be ≥ gas 5DN
|
| Function Setting | According to the user's requirements, the relevant instruments can be selected to achieve signal remote transmission (can have field bus function), intelligent compensation, display flow or mass flow, standard volume flow, etc. |
