Product Details:
|
| Model: | NYCSUL-503 | Process Temperature: | -20℃～+70℃ |
|---|---|---|---|
| Process Pressure: | Normal Pressure | Measuring Range: | 0～20m |
| Process Connection: | Flange, Bracket Mounting (optional) | Power Supply: | 24VDC |
| Signal Output: | 4...20mA/HART | Frequency Range: | 100KHz |
| High Light: | 100KHz Water Tank Level Sensor,Ultrasonic Water Tank Level Sensor 20m,Water Tank Ultrasonic Level Gauge |
||

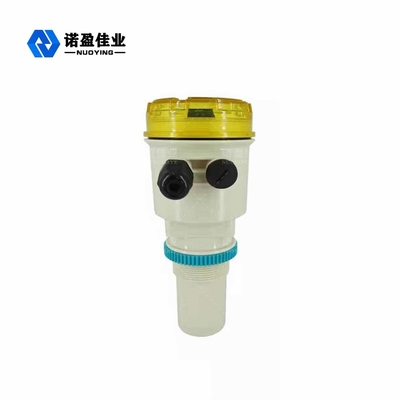

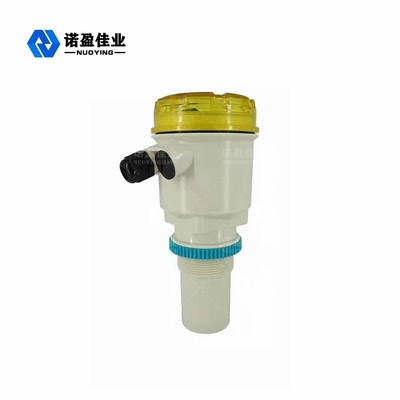

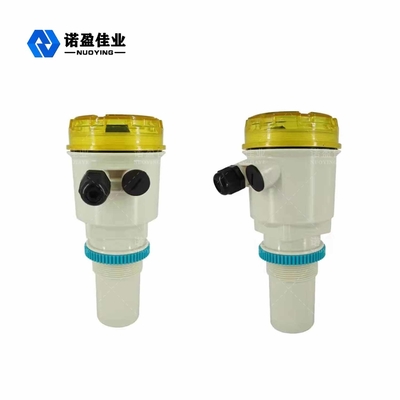

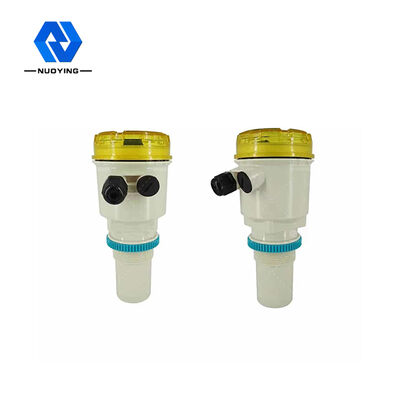

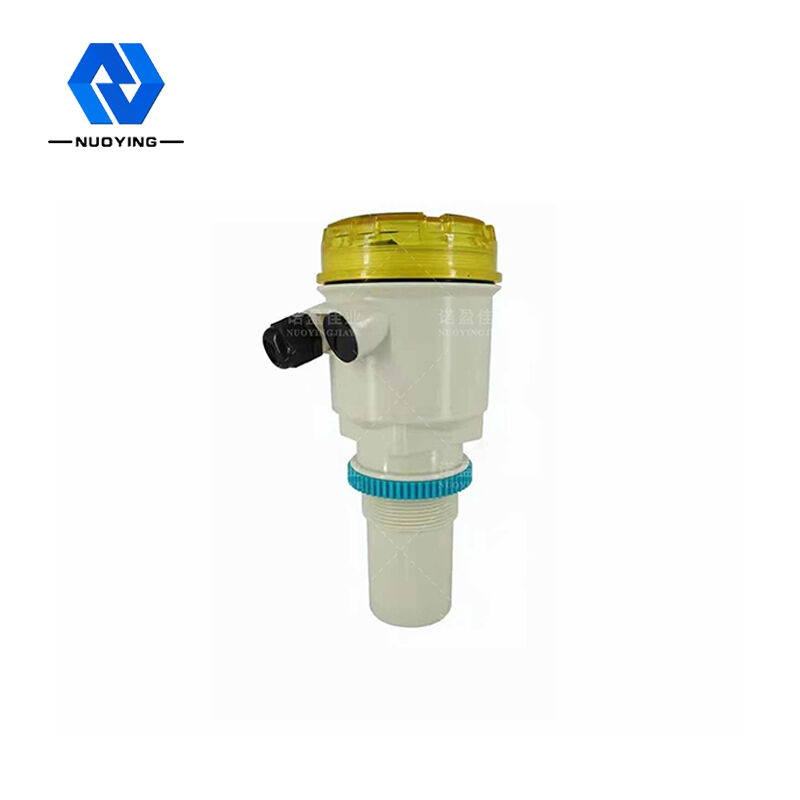

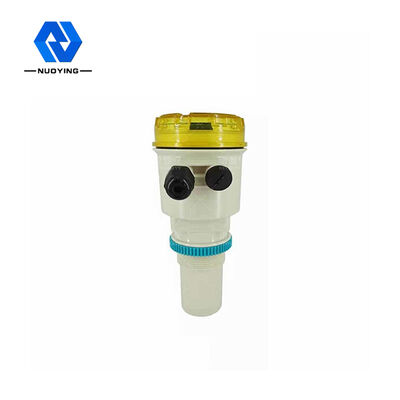

Non-Contact NYCSUL503 Ultrasonic Water Tank Level Sensor 10 Degree 100KHz
NYCSUL503 Ultrasonic Water Tank Level Sensor
Distance [m] = time × sound speed /2 [m]
The temperature compensation formula of sound velocity is: ambient sound velocity = 331.5 + 0.6× temperature
NYCSUL503 Ultrasonic Water Tank Level Sensor Technical Parameter
| Typical application | Liquid level measurement |
| Frequency Range | 100KHz |
| Probe type | Integrated |
| Probe Material | PP/PVC/304(optional) |
| Measuring range | 0～20m |
| Measurement accura | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 24VDC |
| Process temperature | -20℃～+70℃ |
| Process pressure | Normal pressure |
| Process connection | Flange, Bracket mounting (optional) |
| Signal output | 4...20mA/HART |
| Display mode | Liquid level |
| Setting output | Upper & lower limit setting |
| Display | LCD |
| Shell material | Polypropylene/Aluminum |
| Protection class | IP67 |
| Explosion-proofgrade | ExiaⅡCT6 Ga |
