Product Details:
|
| Model: | NYCSUL-503 | Typical Application: | Liquid Level Measurement |
|---|---|---|---|
| Frequency Range: | 40KHz,100KHz | Probe Type: | Integrated |
| Probe Material: | PTFE/304(optional) | Measuring Range: | 0～20m |
| Measurement Accuracy: | ＜0.25%(Range＜20m) | Measuring Angle: | 10° |
| High Light: | Cast Aluminum Ultrasonic Level Sensor,Wastewater Ultrasonic Level Sensor,100KHz Ultrasonic Level Meter |
||

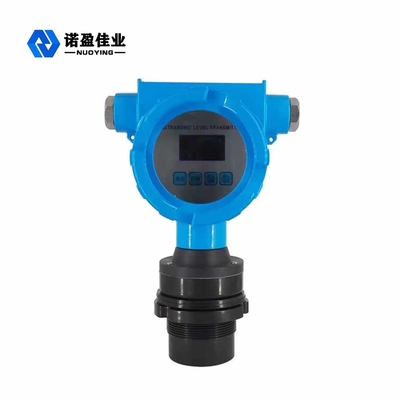

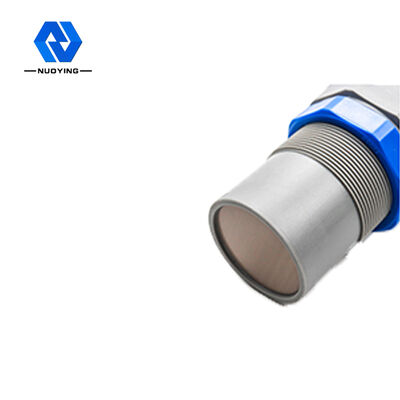

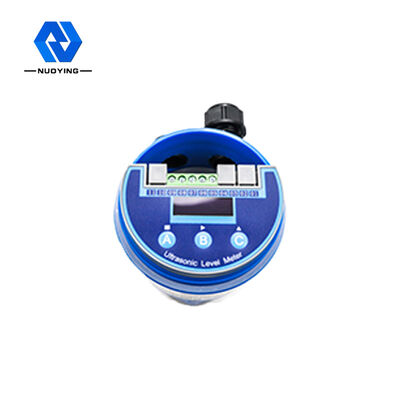

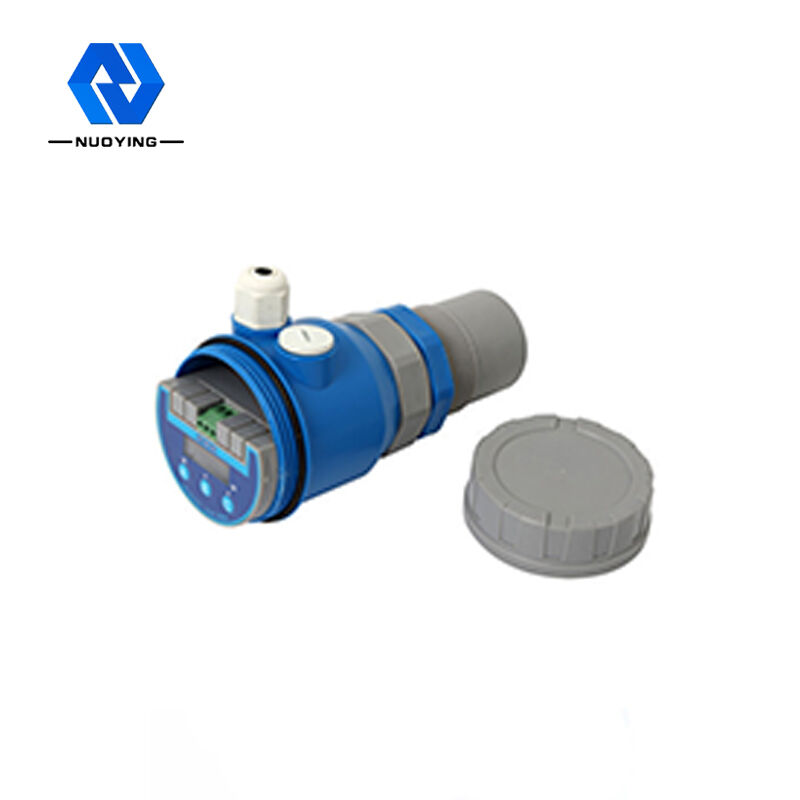

High Sensitivity NYCSUL-503 Ultrasonic Level Sensor Wastewater Cast Aluminum
High Sensitivity NYCSUL-503 Ultrasonic Level Sensor
NYCSUL two-wire ultrasonic level meter is an intelligent non-contact level measuring instrument.Reasonable design, excellent performance, low unit price, simple structure and high installation convenience; The product has automatic power adjustment, gain control, temperature compensation, adopts advanced detection and calculation technology, and has the function of suppressing interference signals, thereby fundamentally improving the measurement accuracy of the instrument to ensure the authenticity of the measurement results. Ultrasonic uses a small-angle probe with high transmit power and high sensitivity；The product can be widely used for liquid level measurement of various liquids, and can also be used for distance measurement.Arbitrary point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control.
High Sensitivity NYCSUL-503 Ultrasonic Level Sensor Technical Parameter
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| Probe Material | PTFE/304(optional) |
| Measuring range | 0～20m |
| Measurement accuracy | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 220VAC |
| Process temperature | -20℃~70℃ |
| Process pressure | -0.1~1.0MPa |
| Process connection | Thread, Flange, Bracket mounting (optional) |
| Signal output | 4...20mA |
| Display mode | Liquid level, distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene |
| Protection class | IP65 |
| Explosion-proofgrade | Exia ⅡCT6 Ga |
Note: Products can be customized according to the specific requirement of users!
