Product Details:
|
| Model: | NYCSUL-501 | Process Temperature: | -20℃～+70℃ |
|---|---|---|---|
| Process Pressure: | Normal Pressure | Process Connection: | Thread, Bracket Mounting (optional) |
| Measuring Range: | 0～20m | Signal Output: | RS485... |
| Power Supply: | 220VAC | Setting Output: | Upper Limit Setting, Lower Limit Setting |
| High Light: | Polypropylene Ultrasonic Level Transmitter,Liquid Ultrasonic Level Gauge 220VAC,RS485 Ultrasonic Liquid Level Sensor |
||
Polypropylene NYCSUL-501 Ultrasonic Level Transmitter Liquid Level Measurement

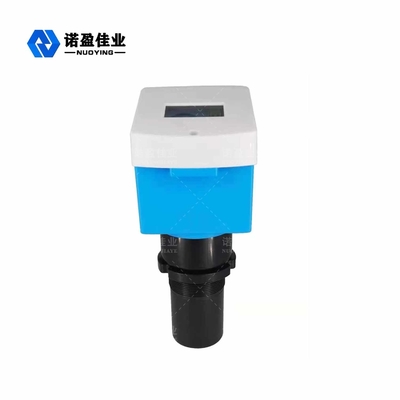

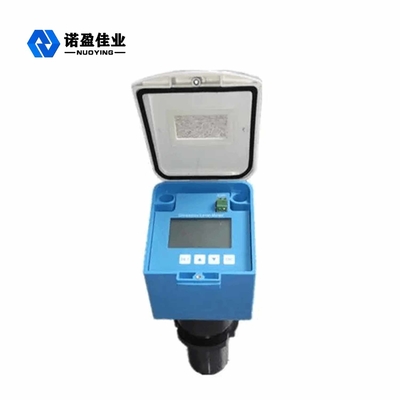

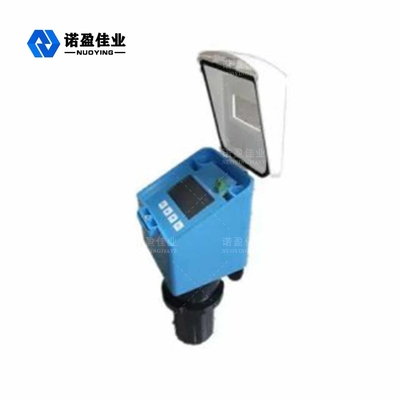

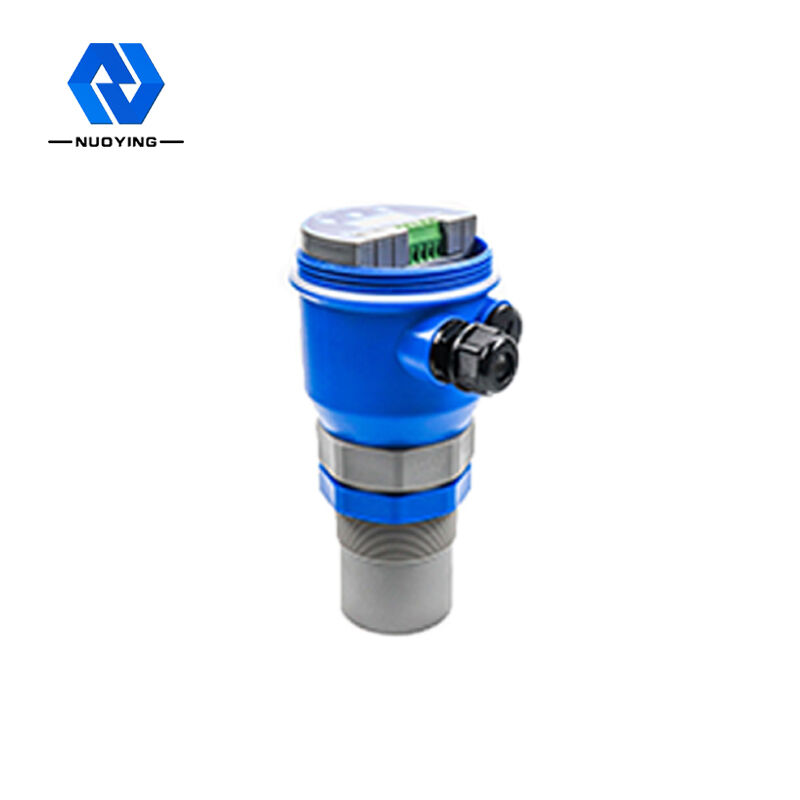

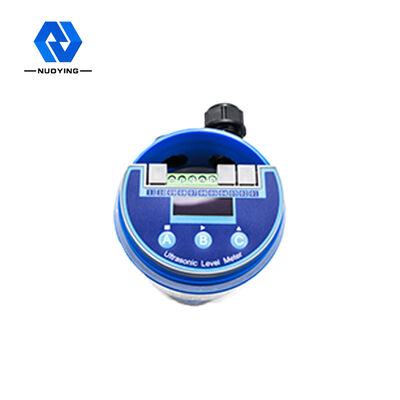

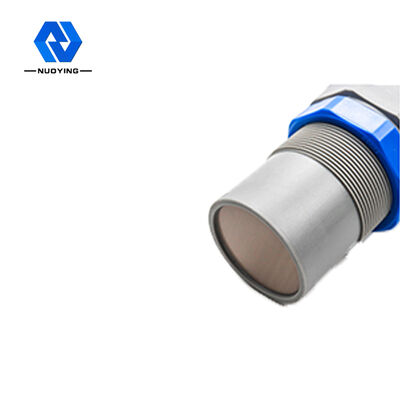

NYCSUL-501 Ultrasonic Level Transmitter
NYCSUL-501 Ultrasonic Level Transmitter Parameters
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| Probe Material | PVC/304(optional) |
| Measuring range | 0～20m |
| Measurement accuracy | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 220VAC |
| Process temperature | -20℃～+70℃ |
| Process pressure | Normal pressure |
| Process connection | Thread, Bracket mounting (optional) |
| Signal output | RS485... |
| Display mode | distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga |
Note: Products can be customized according to the specific requirement of users!
