Product Details:
|
| Accuracy: | Liquid 1.0%;Air 1.5% | Material: | SS316 |
|---|---|---|---|
| Rated Pressure: | 4.0MPa(DN15,DN25,DN40,DN50) | Protective Level: | IP65 |
| Span: | Liquid:2.5-100000L/h;Air:0.07-3000m^3/h | Range Ratio: | 10:1(DN≤100mm);5:1(DN>100mm) |
| Connection: | Screw,Clamp,Flange | Output: | 4~20mA,RS485 |
| Type: | Metal Tube Rotameter | Warranty: | 12 Months |
| High Light: | IP65 Metal Tube Float Flow Meter,Variable Area Air Flow Rotameter,SS316 Metal Tube Air Flow Rotameter |
||

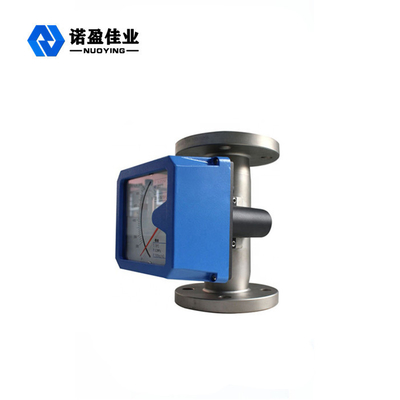

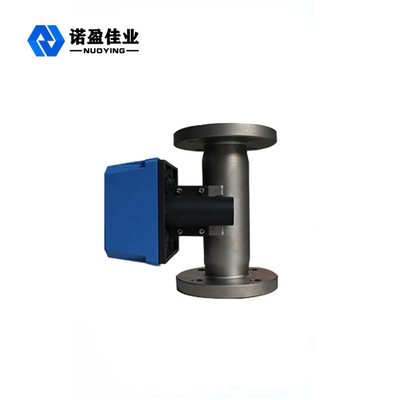

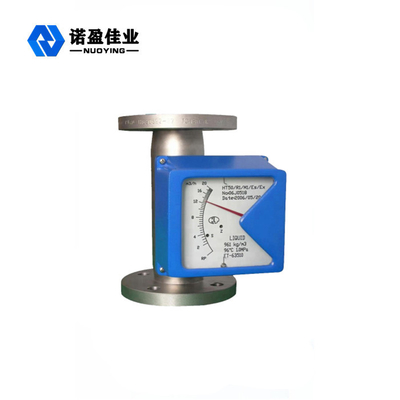

Air Flow Rotameter Metal Tube Float Variable Area Flow Meter
Air Flow Rotameter Description:
NYGZ-L series metal tube rotameter has simple structure, reliable operation, high accuracy and wide application range. Can withstand higher pressures than glass rotameters. NYGZ-L series flowmeters have local indication, electric remote transmission, limit switch alarm, corrosion resistance, jacket type, damping type and explosion-proof varieties. It is widely used in the measurement and automatic control of liquid and gas flow in national defense, chemical industry, petroleum, metallurgy, electric power, environmental protection, medicine and light industry and other departments.
Some parts of the flowmeter detection are made of 1Cr18Ni9Ti stainless steel material, and can also be composed of corrosion-resistant materials such as Cr18Ni12Mo2Ti or F46 in special occasions. Except for special specifications, the height of the flowmeter is 250 mm. The connecting flange adopts GB/T9119.8～10 standard, and can also be customized according to the special requirements of users
Air Flow Rotameter Parameters:
| Technical Parameter | |
| Nominal Pressure | DN15, DN25, DN50-- 4.0MPa(Max: 20MPa) |
| DN80, DN100, DN150-- 1.6MPa | |
| DN80-- Max 10MPa | |
| DN100-- Max 6.4MPa | |
| DN150--Max 4.0MPa | |
| Medium Temp | Standard: -30℃~+120℃, high temperature: 120℃~350℃ |
| Diameter range | DN15,25,50,80,100,150 |
| Accuracy | 1.0% |
| Power supply | 24VDC(12~36VDC) |
| Viscosity | DN15 :η<30mPa.s |
| DN25 :η<250mPa.s | |
| DN50~DN150: η<300mPa.s | |
| Signal Output | 4~20mADC (two-wire); attached HART Protocol allowed |
| Connection type | Standard: Flange connection, GB/T9119-2000 |
| Flow range | Liquid:1.0-150000L/H; Gas:0.5-3000m³/H |
| Measure Ratio | 10:1, |
| Explosion proof | Intrinsic safety type: ExiaIICT6 |
| Flame-proof type: ExdIICT6l | |
| Wetted material | R1: 304,1Cr18Ni9Ti |
| Ro :316, 0Cr18Ni12Mo2Ti | |
| RL: 316L, 00Cr17Ni14Mo2Ti; | |
| Ti :Titanium alloy; | |
| Rp: PTFE lining | |
Air Flow Rotameter Features:
1.Two Types of medium
The metal rotameters could test gas and liquid two types medium.
2.Large Flow Ratio
The rotameter with 1:10 large flow ratio,both liquid and gas medium
3.simple and clear data reading
The flow mete with mechanical ans digital displat,with dual-line to display flow rate and total flow.
4.Functions of rotameters
The gas rotameter with flange connection and 4-20ma output optional and various flow range for you reference.
5.Wide application
Vertical and horizontal type installation methods which is more suitable for different occasions.
6.Long life and stability
All in metal construction, designed for measuring corrosive medium of high temperature&pressure
It can select the measurement system of the materials which is made of stainless steel, Hart alloy, Titanium, PTFE.
Magnetic coupling structure which is guarantee the data transportation, which makes the signal is more steady.
