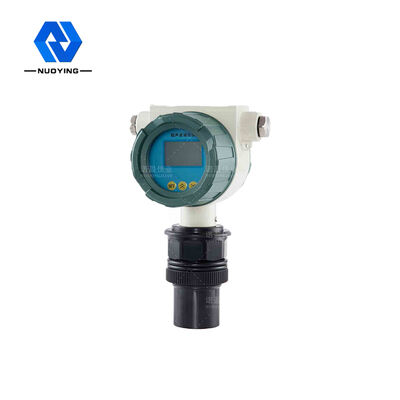

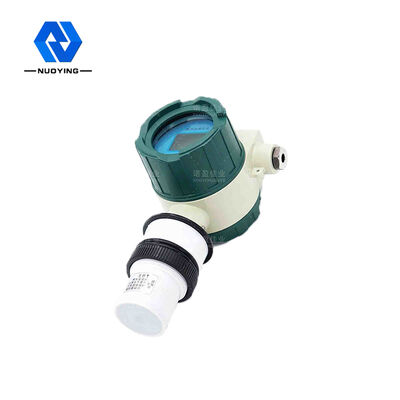

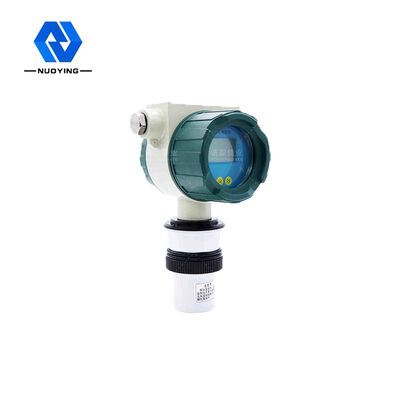

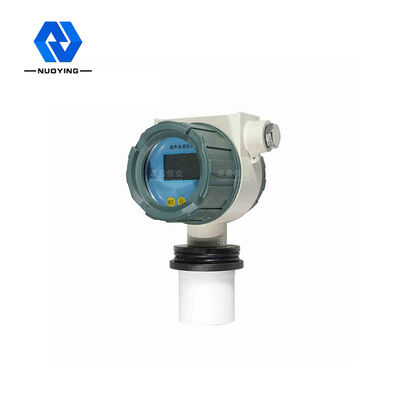

NYCSUL - 503 PTFE IP68 Ultrasonic Level Transmitter Liquid Slurry Solids Measuring

NYCSUL - 503 PTFE IP68 Ultrasonic Level Transmitter Liquid Slurry Solids Measuring

Brand Name: NUOYINGJIAYE
Model Number: NYCSUL-503
MOQ: 1pcs
Price: $150~$350/pcs
Payment Terms: T/T
Supply Ability: 1000 pcs/per month
Detail Information
Place of Origin:
Xi'an,Shannxi,China
Certification:
CE,ATEX,SIL
Features:
Integrated
Model:
NYCSUL-503
Range:
5m~60m
Measurement Accuracy:
0.5%~1.0%
Resolution:
3mm Or 0.1%
Digital Output:
485, 232
Relay Output:
AC 250V / 5A Or DC 30V / 5A
Protection Class:
Probe IP68
Packaging Details:
Carton, 30cm x 25cm x 20cm
Supply Ability:
1000 pcs/per month
Highlight:

PTFE Ultrasonic Level Transmitter

,

Slurry Measuring Ultrasonic Level Transmitter

,

IP68 Ultrasonic Liquid Level Sensor

Product Description

Low-Cost Measuring Device NYCSUL-503 Ultrasonic Level Transmitter PTFE

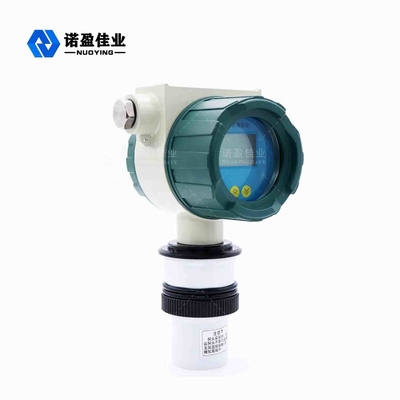

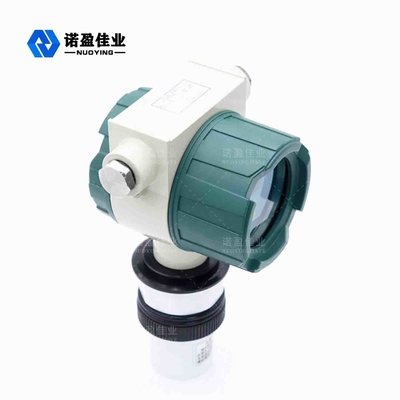

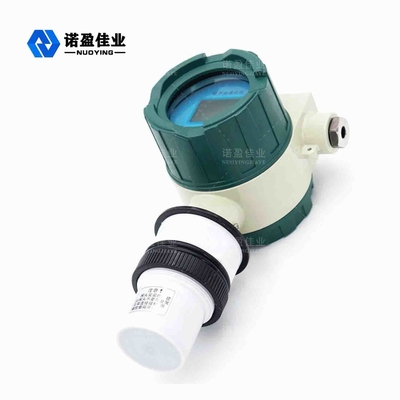

NYCSUL-503 Ultrasonic Level Transmitter

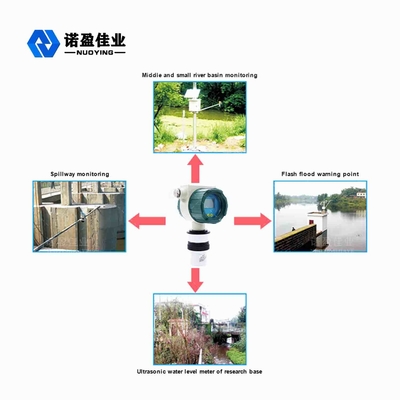

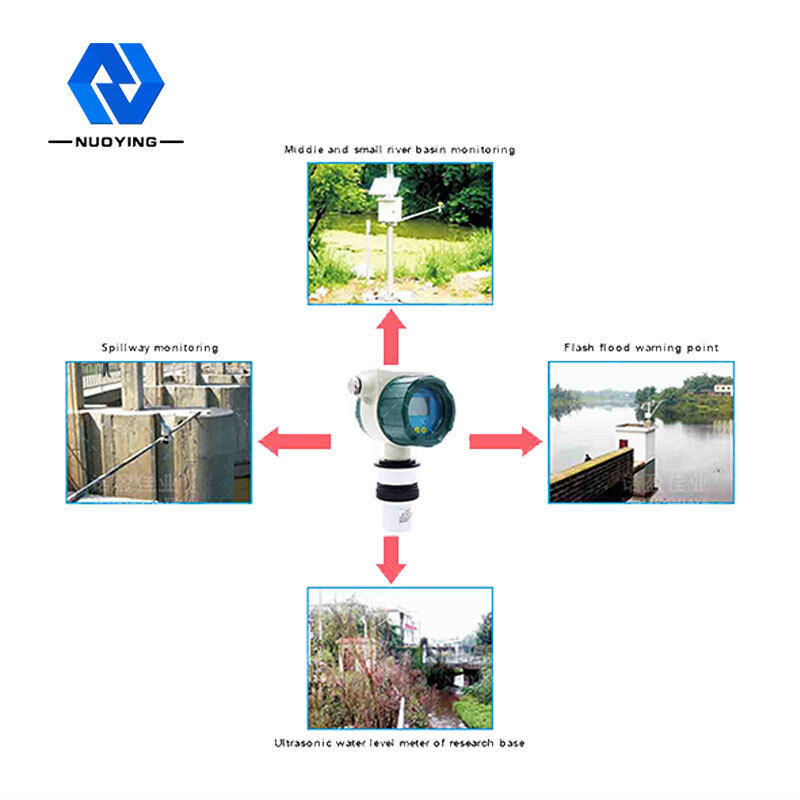

The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site.The transducer shall be vertical to the medium surface.The equipment shall not be installed in the middle of the tank top. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries.The installation position shall avoid obstacles as much as possible.



NYCSUL-503 Ultrasonic Level Transmitter Technical Parameters



Features Integrated
Range 5m~60m
Measurement Accuracy 0.5%~1.0%
Resolution 3mm or 0.1%

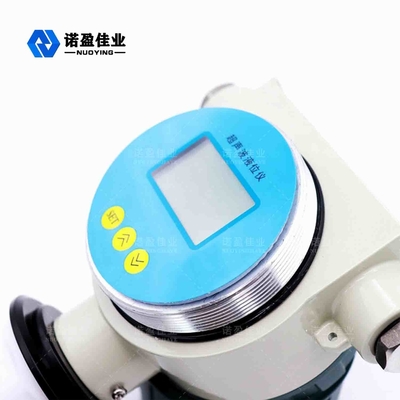

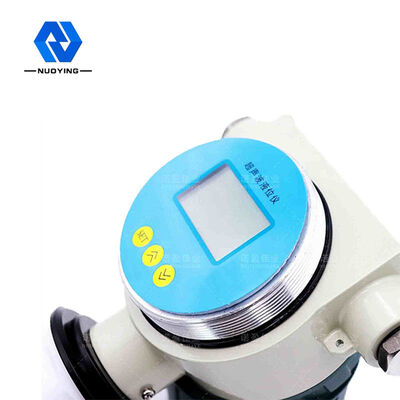

Display Chinese LCD or English LCD
Analog Output 2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
Digital Output 485, 232
Relay Output AC 250V / 5A or DC 30V / 5A
Powered Standard 24VDC, optional 220VAC + 15% 50HZ
Ambient Temperature Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
Protection Class probe IP68
Installation Size Thread or flange



Note: Products can be customized according to the specific requirement of users!
